Description

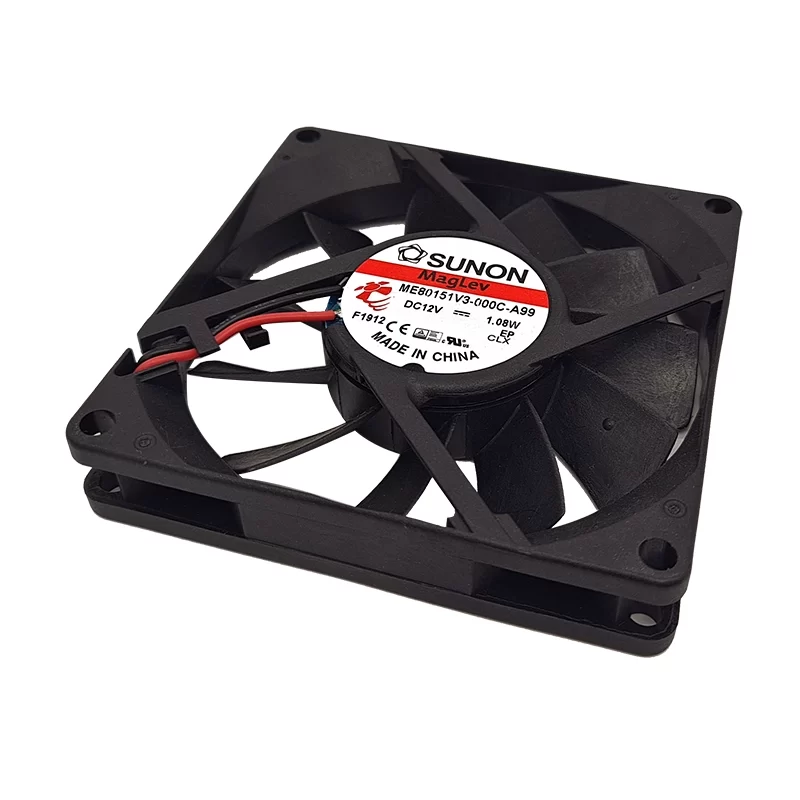

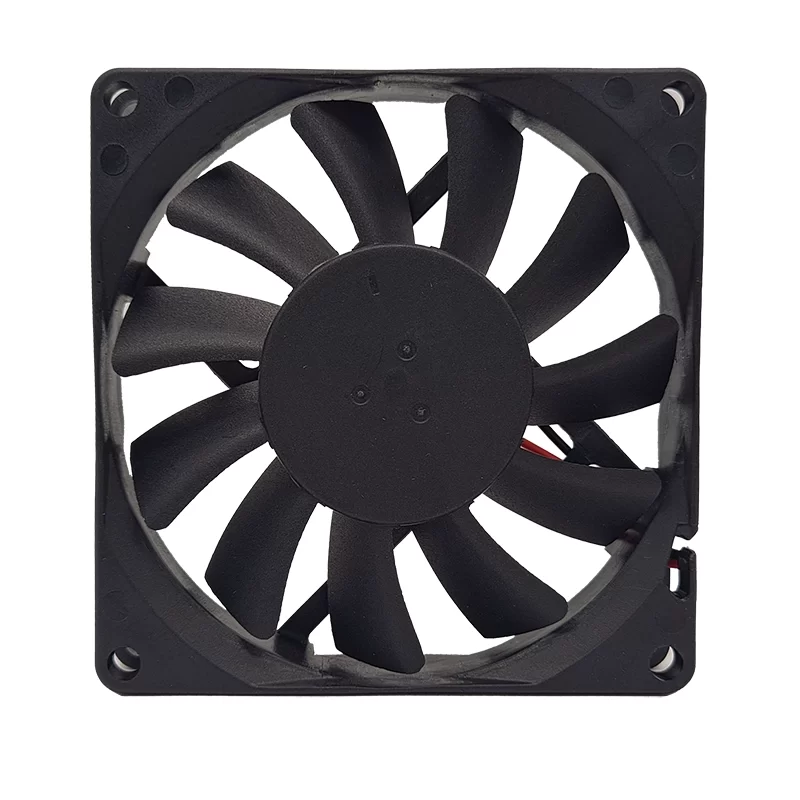

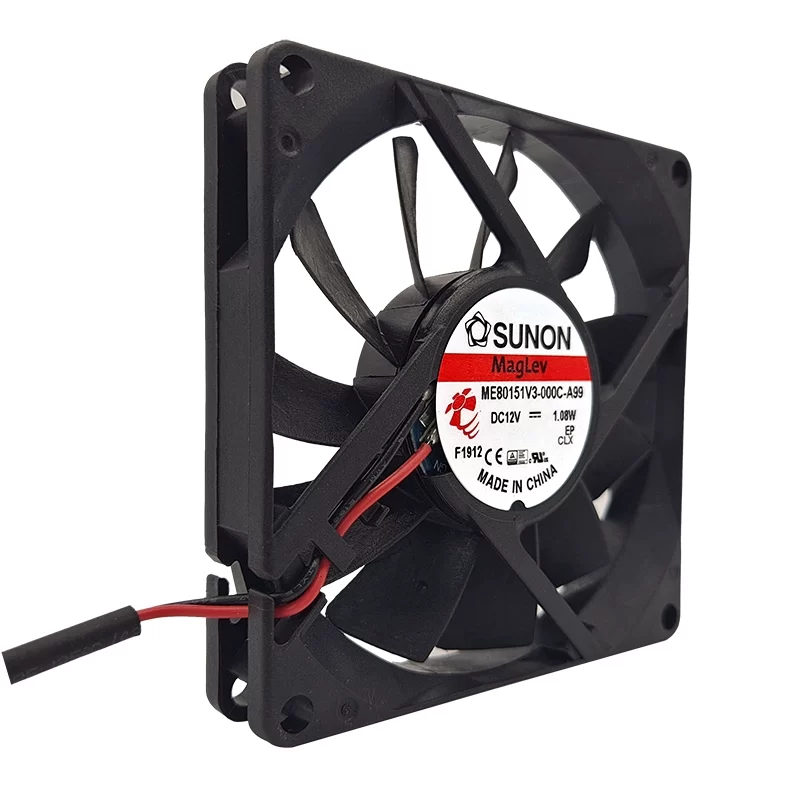

The SUNON ME80151V3-000C-A99 is a slim DC axial fan measuring 80x80x15mm. It operates on 12 VDC, drawing 90 mA of current, with a power consumption of 1.08 W. This fan achieves a speed of 2400 RPM, providing an airflow of 30 CFM (approximately 50.97 m³/h). Its noise level is 30.8 dB(A). It features a precise Vapo bearing system (MagLev technology) for reliable, quiet operation, and extended life. It connects via 2 wire leads. The frame and fan blade materials are thermoplastic PBT with a UL94V-0 flammability rating. The fan also includes automatic restart and polarity protection. It’s commonly used for cooling compact electronic equipment, such as thin servers, embedded systems, and other applications where space is limited and quiet operation is desired.
ME80151V3-000C-A99 Fan Parameters
Model: ME80151V3-000C-A99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 80x80x15 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 6 to 13.8 VDC
Rated Current: 90 mA
Current and Power Consumption Tolerance: ±15%
Power Consumption: 1.08 W
Speed: 2400 RPM
Speed Tolerance: ±10%
Airflow: 30 CFM (50.97 m³/h)
Static Pressure: 0.08 inH2O (19.9 Pa)
Noise Level: 30.8 dB(A)
Bearing Type: Vapo Bearing (MagLev technology)
Termination: 2 Wire Leads (typically 300mm length)
Frame Material: Thermoplastic PBT
Fan Blade Material: Thermoplastic PBT
Flammability Rating: UL94V-0
Insulation Class: A
Insulation Resistance: 10 MΩ minimum (at 500 VDC)
Dielectric Strength: 500 VAC for 1 minute
Motor Protection: Automatic Restart, Polarity Protection
Operating Temperature: -10 to 70°C
Storage Temperature: -40 to 70°C
Expected Life: 60,000 hours (at 40°C)
Weight: 45 g
Application: Compact electronic equipment, thin servers, embedded systems, quiet cooling in limited spaces.
