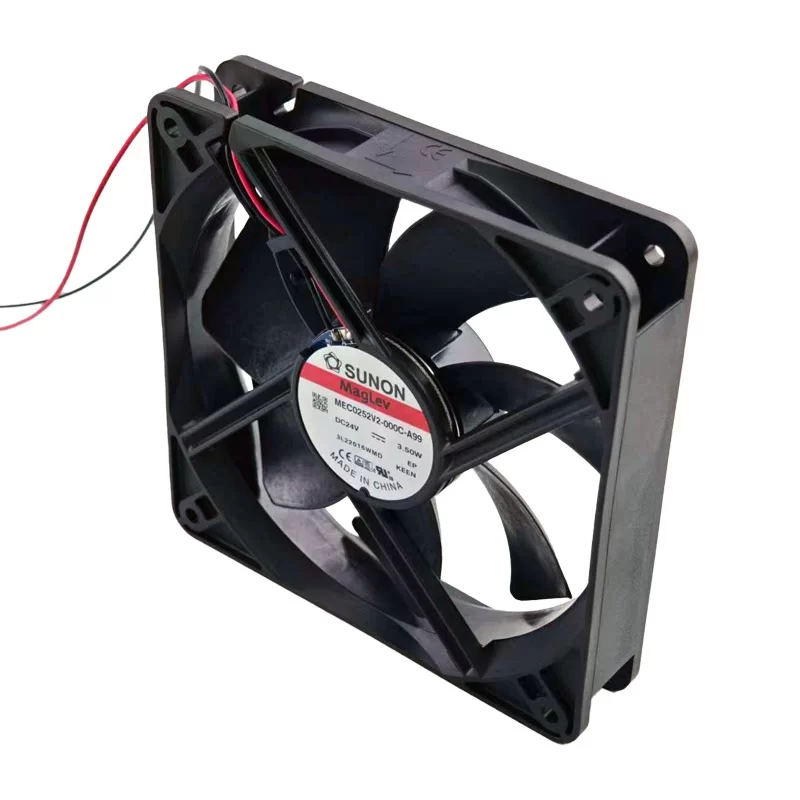

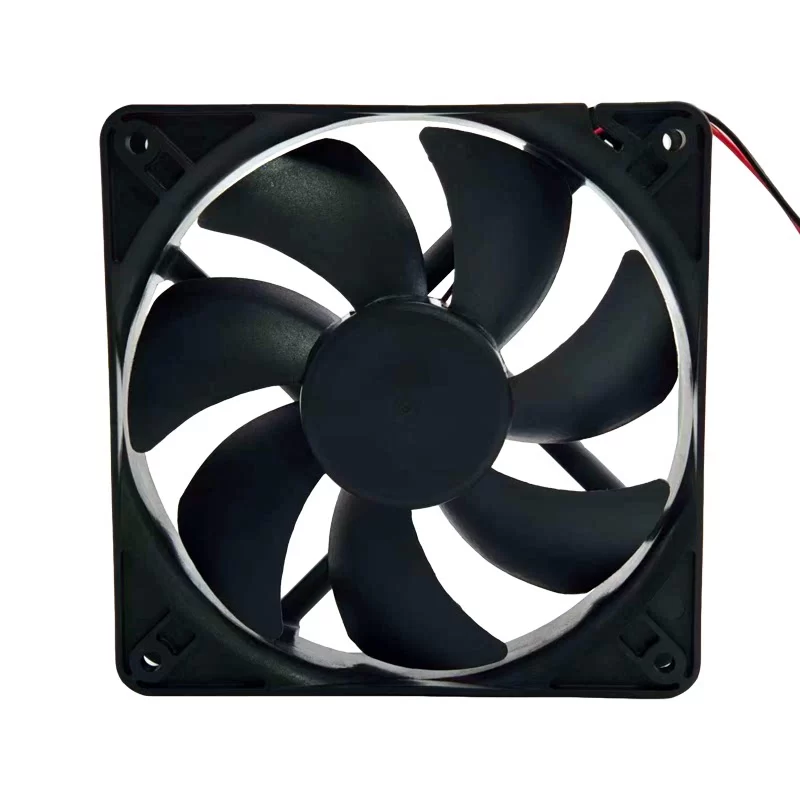

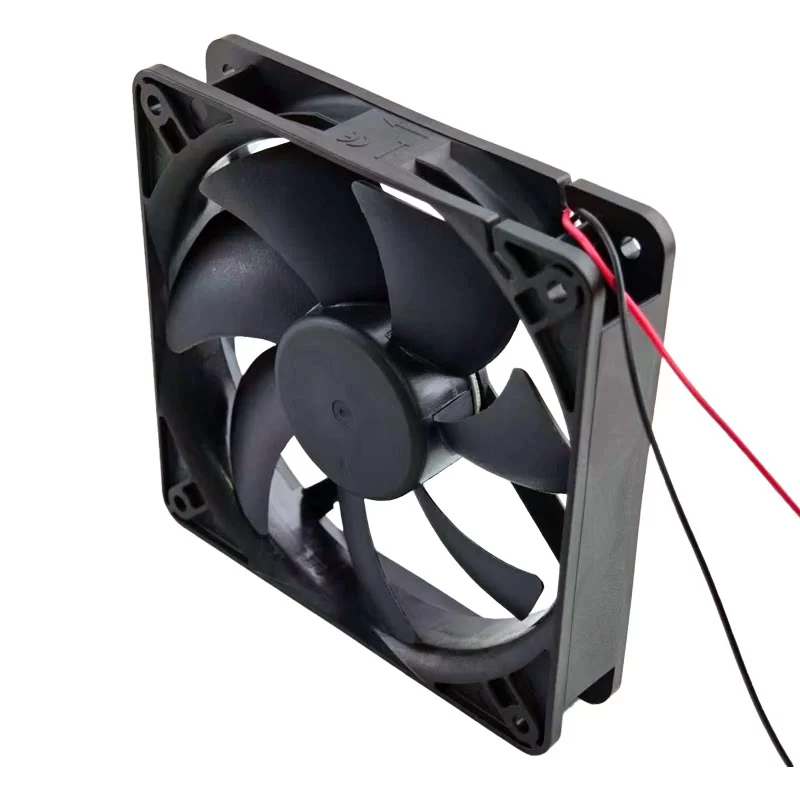

MEC0252V2-000C-A99 Sunon 24V 120x120x25mm DC Axial Fan

Description

The Sunon MEC0252V2-000C-A99 is a professional-grade 120 mm DC axial fan with a nominal voltage of 24 VDC and dimensions of 120 x 120 x 25 mm, designed for high-reliability thermal management in industrial and telecommunications systems. Operating at a power consumption of 3.50 W with a rated current of 0.146 A, this unit features Sunon’s proprietary VAPO bearing system, which leverages magnetic levitation to minimize mechanical friction and ensure ultra-long service life. With a balanced performance profile of 2700 RPM, it delivers a robust airflow of 93 CFM and a static pressure of 0.22 inH2O, making it highly effective at overcoming system resistance. Constructed with UL 94V-0 flame-retardant plastic and weighing 163 g, the fan includes essential safety features such as auto-restart and polarity protection, providing a powerful and quiet cooling solution for power supplies, server racks, and industrial control cabinets at the end.

MEC0252V2-000C-A99 Fan Parameters
Model Number: MEC0252V2-000C-A99
Manufacturer: Sunon
Series: MEC Series
Type: DC Axial Fan
Size: 120 mm
Dimensions: 120 x 120 x 25 mm
Weight: 163 g
Bearing Type: VAPO Bearing
Nominal Voltage: 24 VDC
Voltage Range: 10.0 – 27.6 VDC
Power Consumption: 3.50 W
Nominal Current: 0.146 A
Speed: 2700 RPM
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Actual Air Flow: 93 CFM (158.0 m³/h)
Actual Static Pressure: 0.22 inH₂O (5.59 mmH₂O / 54.8 Pa)
Sound Pressure Level: 40.5 dB(A)
Motor Design: Brushless DC motor
Motor Protection: Auto-restart; Polarity protection
Technical Features: Soft start
Insulation Class: Class A
Electrical Hookup: 2-wire lead wires (Red: +, Black: -)
Number of Blades: 7
Direction of Rotation: Counter-clockwise, viewed toward rotor
Airflow Direction: Exhaust over struts
Impeller Material: Plastic (UL 94V-0)
Housing Material: Plastic (UL 94V-0)
Installation Position: Any
Degree of Protection: IP20
Operating Temperature: -10 – +70 °C
Service Life (L10 @ 40 °C): 70000 h
Standard Compliance: UL, TUV, CE
Approval Agency: UL, TUV, CUR

Application
The Sunon MEC0252V2-000C-A99 DC fan is primarily utilized in industrial power supplies, telecommunications equipment cabinets, frequency converters, and server rack ventilation.
