Description

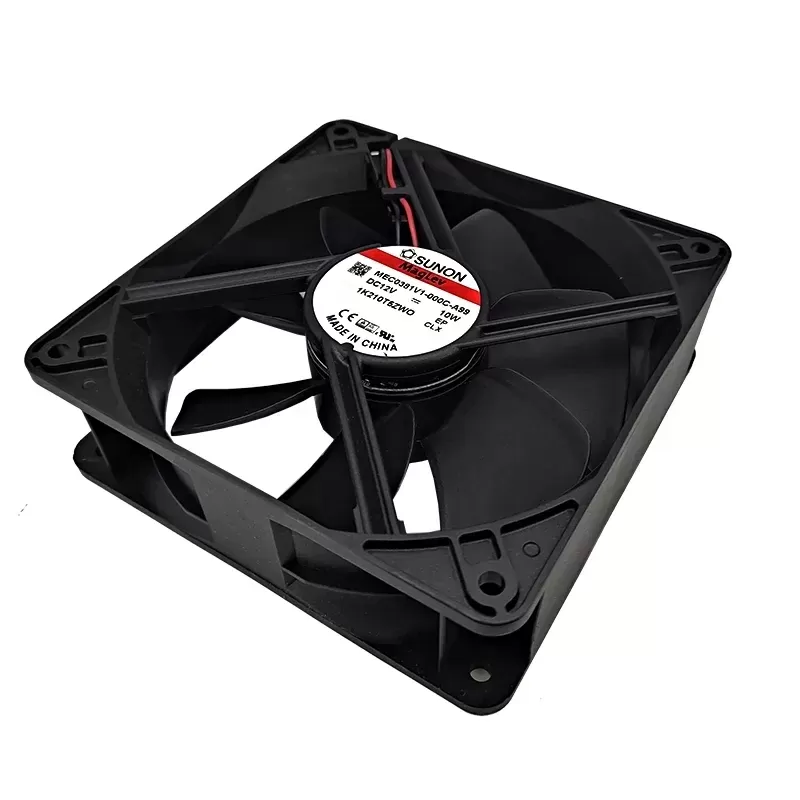

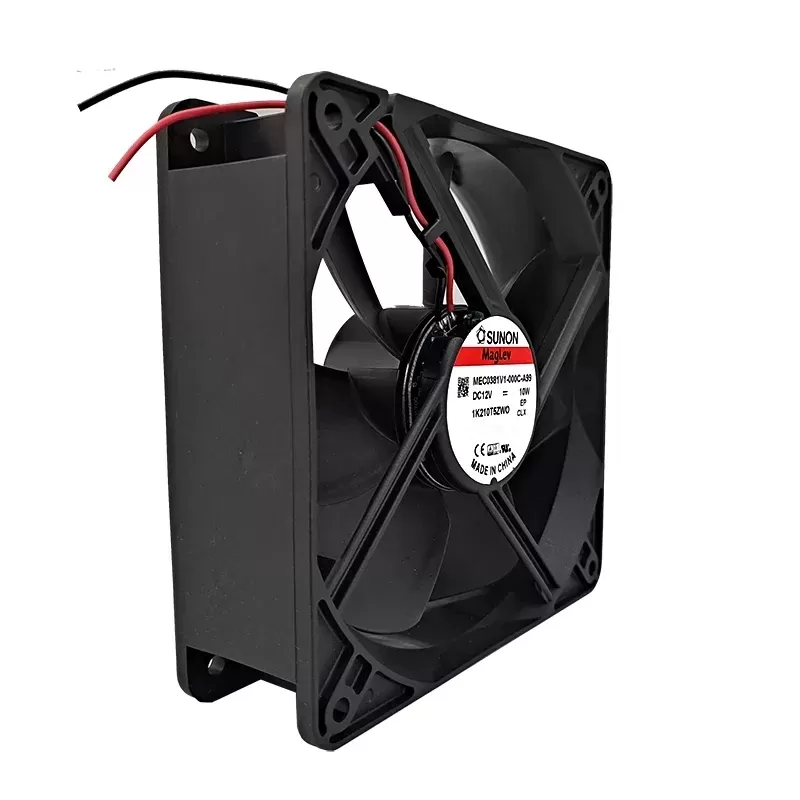

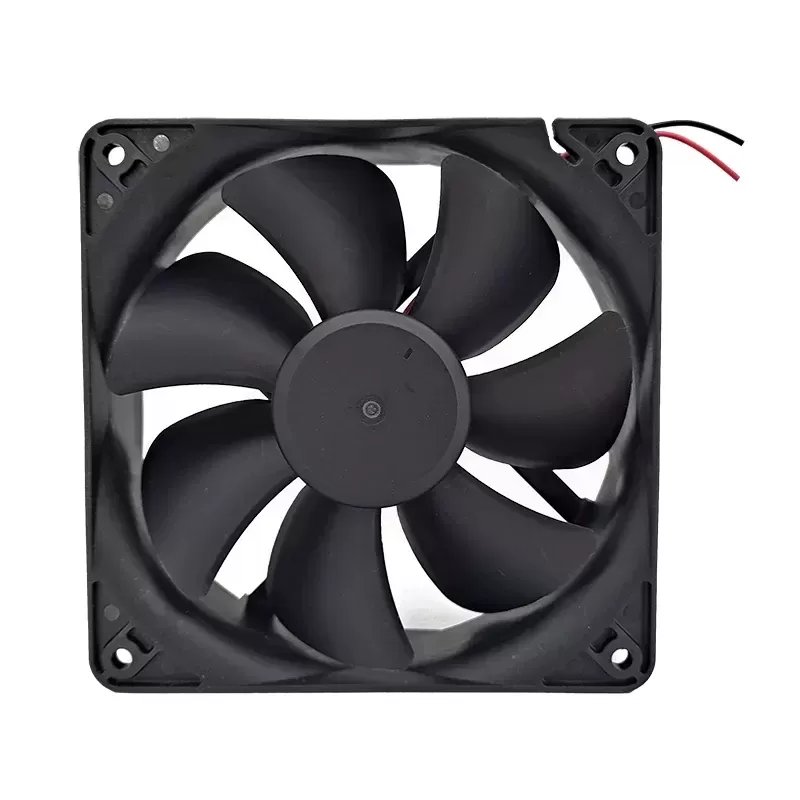

The SUNON MEC0381V1-000C-A99 is a high-performance DC axial fan measuring 120x120x38mm. It operates on 12 VDC, drawing 833 mA of current, with a power consumption of 10 W. This fan achieves a speed of 3100 RPM, providing an airflow of 234.5 m³/h (approximately 138 CFM). The noise level is 48 dB(A). It features a Vapo bearing system for reliable and quiet operation, and connects via wire leads. This model incorporates MagLev technology for enhanced performance, low friction, and a long operational life. It also includes features like auto-restart and locked rotor protection. This fan is commonly used in various electronic equipment, power supplies, and general cooling applications where efficient and durable airflow is required.
MEC0381V1-000C-A99 Fan Parameters
Model: MEC0381V1-000C-A99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 120x120x38 mm
Rated Voltage: 12 VDC
Nominal Voltage Range: 6 to 13.8 VDC
Rated Current: 833 mA
Power Consumption: 10 W
Speed: 3100 RPM
Airflow: 234.5 m³/h (138 CFM)
Static Pressure: 0.360 inH2O (89.7 Pa)
Noise Level: 48 dB(A)
Bearing Type: Vapo Bearing (MagLev technology)
Termination: Wire Leads (2 wires)
Housing Material: Thermoplastic (PBT)
Impeller Material: Thermoplastic (PBT)
Operating Temperature: -20 to 70°C
Expected Life L10 at 40°C: 70000 h
Motor Protection: Locked Rotor Protected, Auto Restart
Application: Electronic equipment, power supplies, general cooling.
Weight: 200 g
