Description

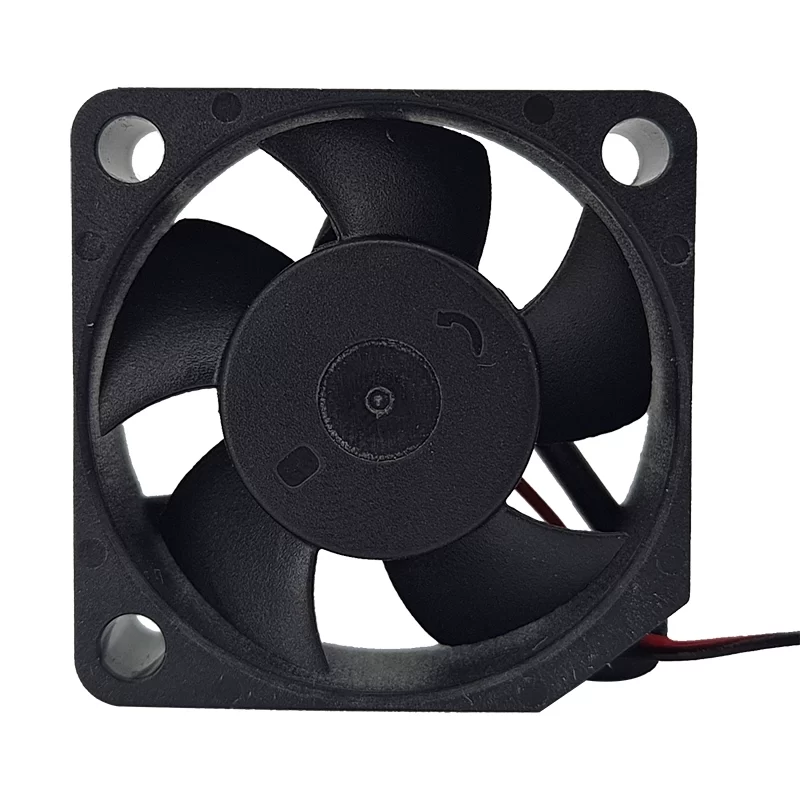

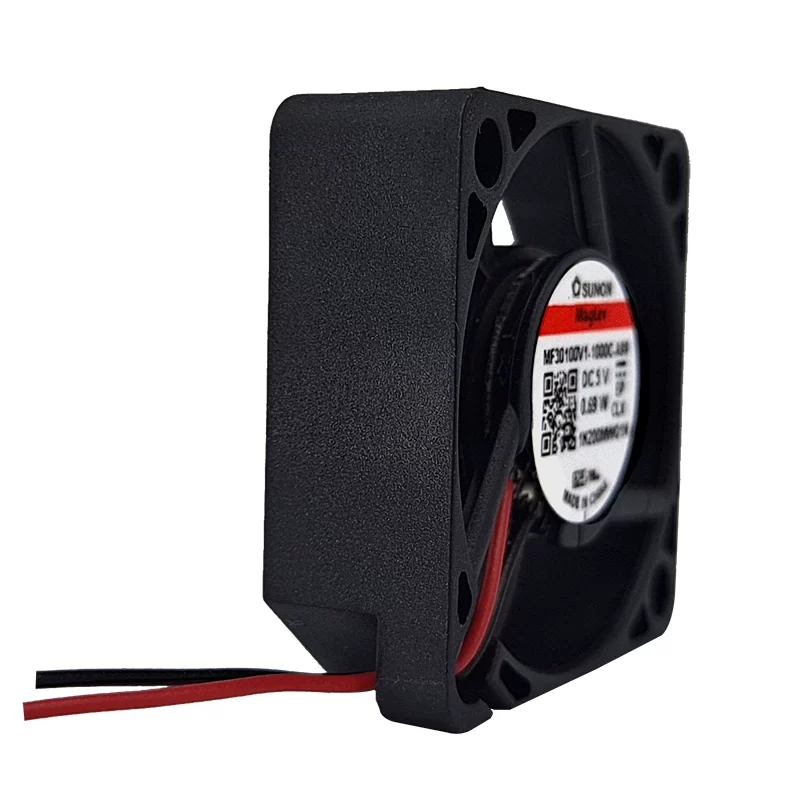

The SUNON MF30100V1-1000C-A99 is a compact DC axial fan measuring 30x30x10mm. It operates on 5 VDC, drawing 138 mA of current, with a power consumption of 0.69 W. This fan achieves a speed of 6500 RPM, providing an airflow of 5.5 CFM (approximately 9.34 m³/h). Its noise level is 23 dB(A). It features a precise Vapo bearing system (MagLev technology) for reliable, quiet operation and extended life. It connects via 2 wire leads. The frame and fan blade materials are thermoplastic PBT with a UL94V-0 flammability rating. The fan also includes automatic restart and polarity protection. It is commonly used for cooling compact electronic components, hard disks, projectors, and other small devices where space is limited and quiet operation is desired.
MF30100V1-1000C-A99 Fan Parameters
Model: MF30100V1-1000C-A99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 30x30x10 mm
Rated Voltage: 5 VDC
Operating Voltage Range: 2.5 to 6 VDC
Rated Current: 138 mA
Power Consumption: 0.69 W
Speed: 6500 RPM
Speed Tolerance: ±15%
Airflow: 5.5 CFM (9.34 m³/h)
Static Pressure: 0.20 inH2O (49.8 Pa)
Noise Level: 23 dB(A)
Bearing Type: Vapo Bearing (MagLev technology)
Termination: 2 Wire Leads
Frame Material: Thermoplastic PBT
Fan Blade Material: Thermoplastic PBT
Flammability Rating: UL94V-0
Insulation Class: A
Insulation Resistance: 10 MΩ minimum (at 500 VDC)
Dielectric Strength: 500 VAC for 1 minute
Operating Temperature: -10 to 70°C
Storage Temperature: -40 to 70°C
Expected Life: 70,000 hours (at 40°C, 65% humidity, 90% CL)
Motor Protection: Automatic Restart, Polarity Protection
Weight: 8.5 g
Application: Compact electronic components, hard disks, projectors, mini-micro axial cooling
