Description

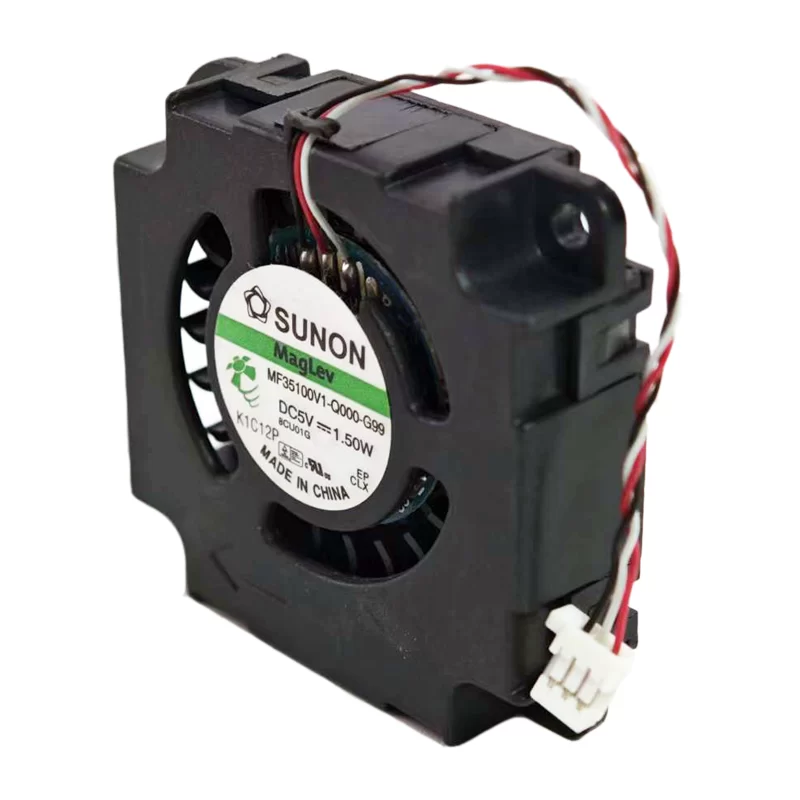

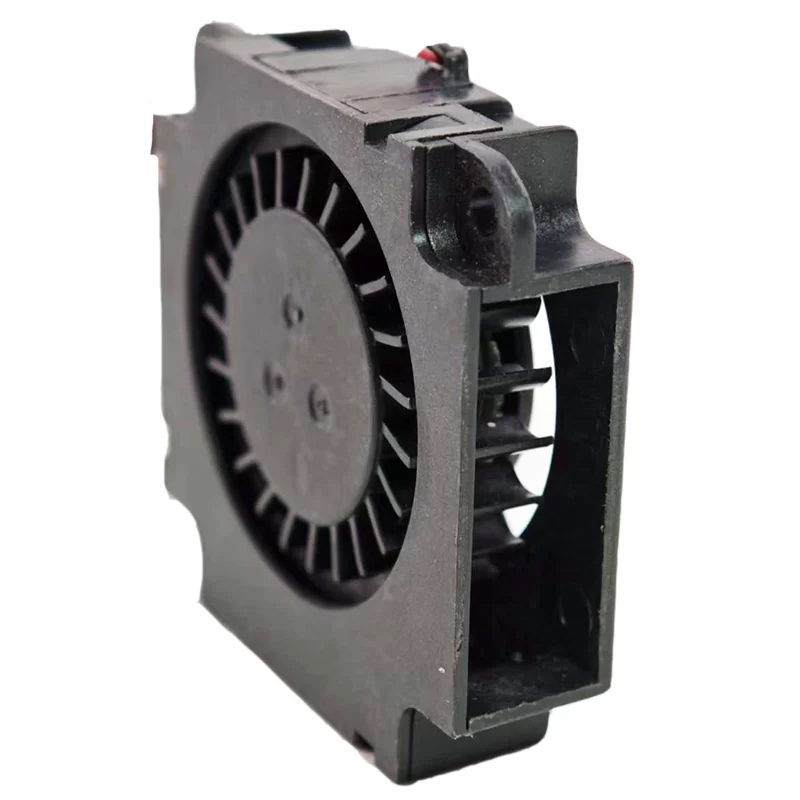

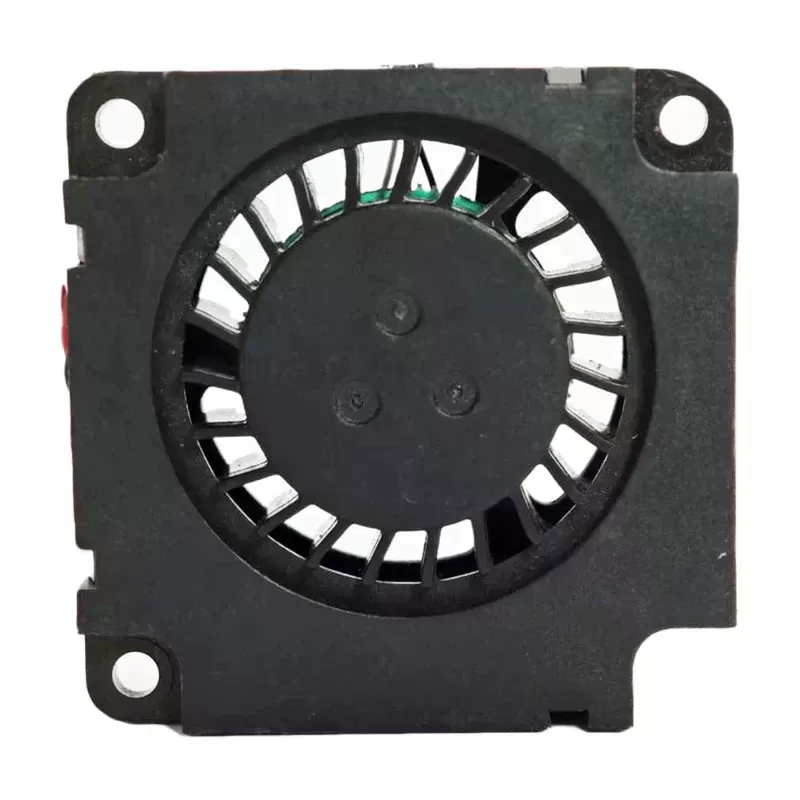

The Sunon MF35100V1-Q000-G99 is a compact and high-speed 5V DC axial fan measuring 35x35x10mm. Designed with Sunon’s reliable Vapo-Bearing™ technology, it offers an extended operational life of 70,000 hours at 40°C. This fan delivers a powerful 12.17 m³/h (7.2 CFM) of airflow and a significant static pressure, making it exceptionally effective for cooling components in highly constrained spaces. Despite its high speed of 10000 RPM, it maintains a relatively low noise level of 28 dBA, making it an ideal thermal solution for miniature electronic devices, 5G equipment, IoT devices, medical appliances, e-sports gear, and portable products where both space and efficient heat dissipation are critical.
Manufacturer: Sunon
Model: MF35100V1-Q000-G99
Type: DC Axial blower fan
Dimensions: 35mm x 35mm x 10mm
Nominal Voltage: 5V DC
Operating Voltage Range: 2.5V to 6V DC
Current: 0.135A
Power Consumption: 1.5W
Speed: 10000 RPM
Airflow: 12.17 m³/h (or 7.2 CFM)
Static Pressure: 5.59 mm H2O (or 0.220 in H2O)
Noise Level: 28 dBA
Bearing Type: Vapo-Bearing™
Termination: 3-wire leads
Life Expectancy: 70,000 hours at 40°C
Frame and Blade Material: Thermoplastic PBT
Features: Auto-Restart, brushless DC motor
Safety Approvals: cURus, TUV
