Description

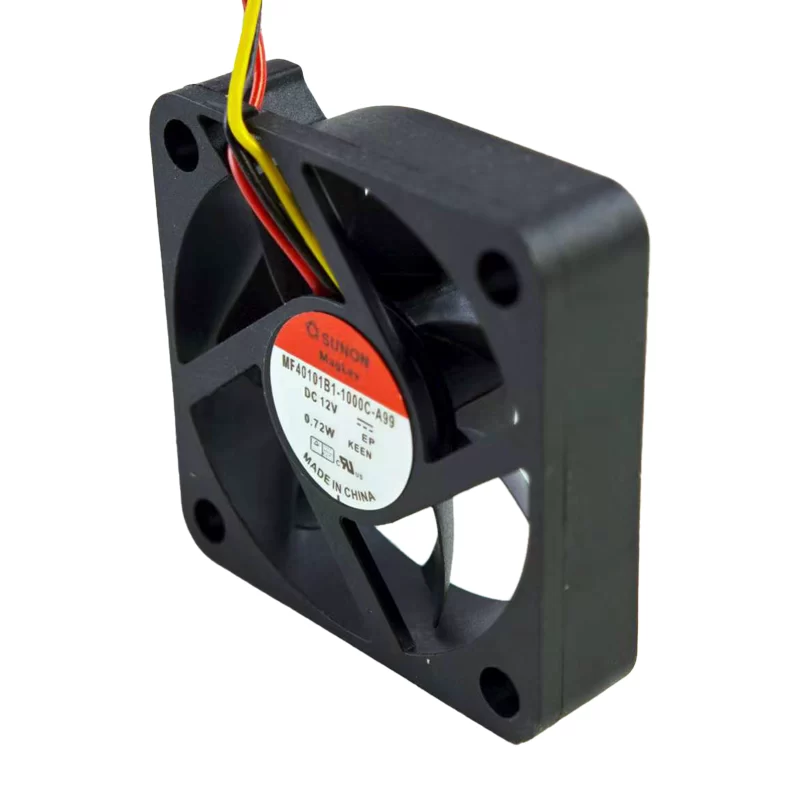

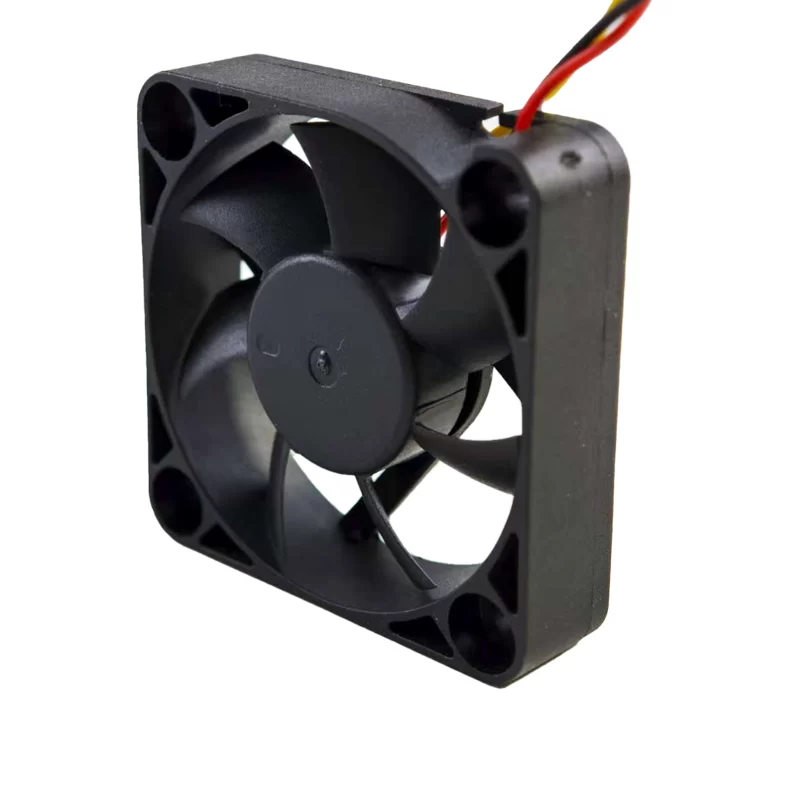

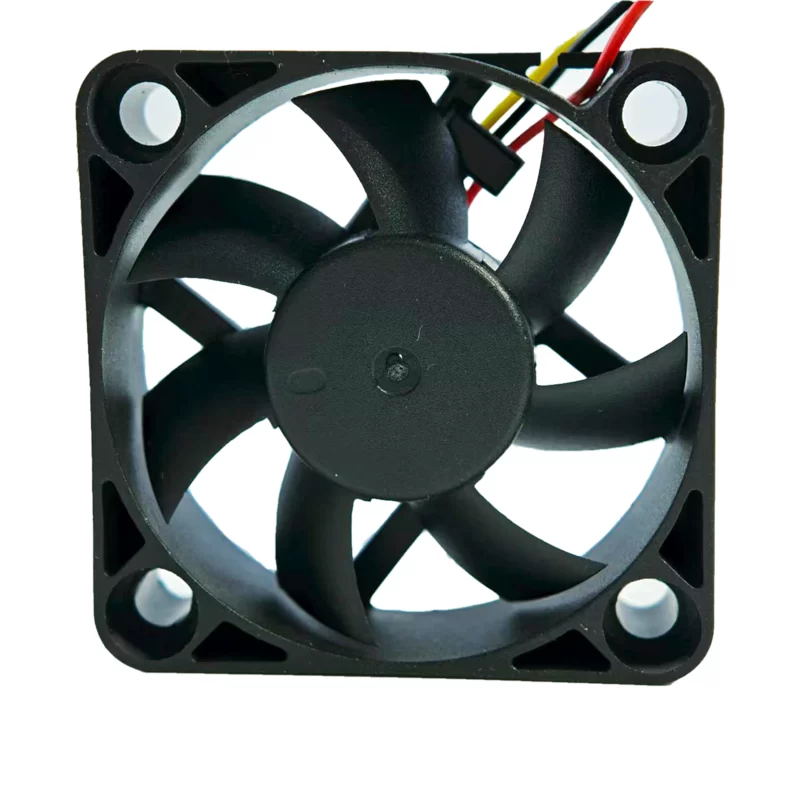

The Sunon MF40101B1-1000C-A99 is a DC axial fan measuring 40x40x10mm. It operates on 12 VDC, drawing 0.06 A of current, with a power consumption of 0.72 W. This fan achieves a speed of 5000 RPM, providing an airflow of 6.0 CFM (approximately 10.2 m³/h). The noise level is 15.0 dB(A), making it suitable for quiet applications. It features a Vapo bearing system for reliable performance and connects via 3-wire Leads, often including a tachometer signal output. The housing and impeller are made of thermoplastic. This fan is commonly used in compact electronic devices, small appliances, and other applications where space is limited and quiet cooling is required.
MF40101B1-1000C-A99 Fan Parameters
Model: MF40101B1-1000C-A99
Manufacturer: Sunon
Type: DC Axial Fan
Dimensions: 40x40x10 mm
Rated Voltage: 12 VDC
Rated Current: 0.06 A
Power Consumption: 0.72 W
Speed: 5000 RPM
Airflow: 6.0 CFM (10.2 m³/h)
Noise Level: 15.0 dB(A)
Bearing Type: Vapo bearing
Termination: 3-wire Leads
Housing Material: Thermoplastic (PBT)
Impeller Material: Thermoplastic (PA)
Operating Temperature: -10 to 70°C
Expected Life L10 at 40°C: 60000 h
Motor Protection: Auto Restart, Locked Rotor Protected
Application: Compact electronic devices, small appliances, quiet cooling.
