Description

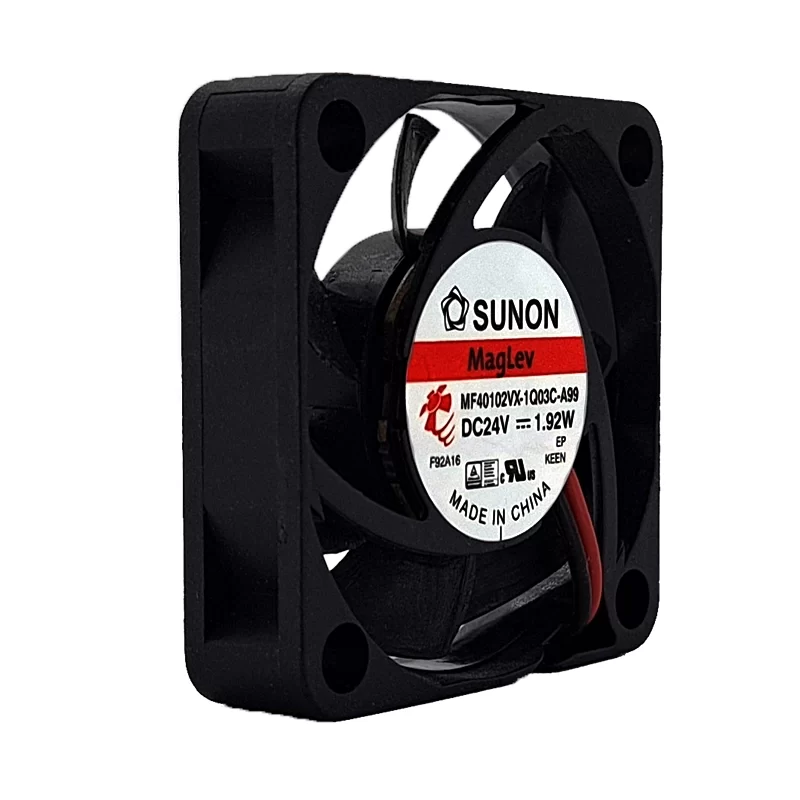

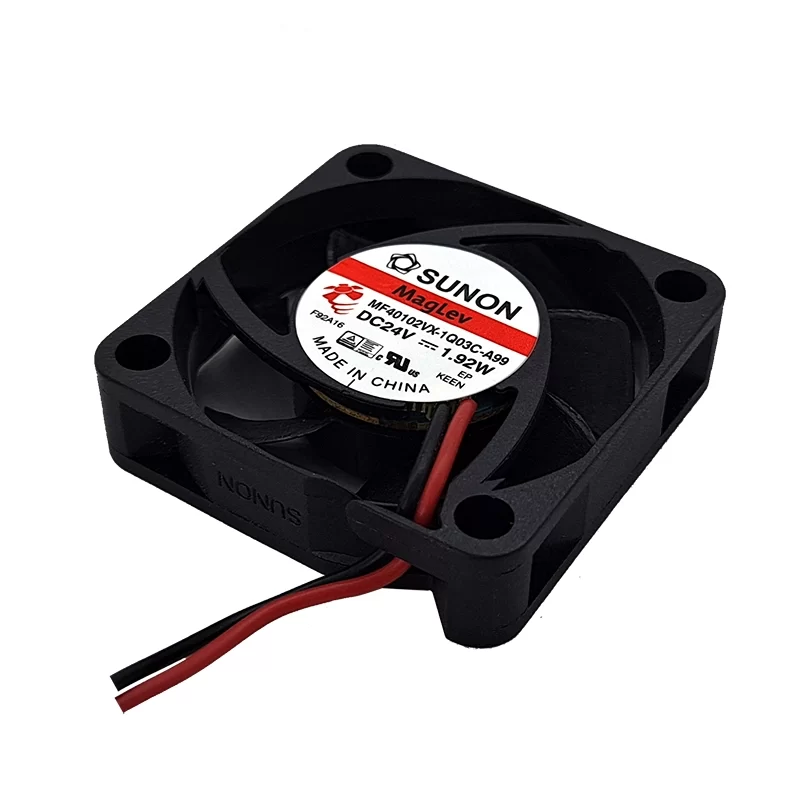

The SUNON MF40102VX-1Q03C-A99 is a compact DC axial fan measuring 40x40x10mm. It operates on 24 VDC, drawing 80 mA of current, with a power consumption of 1.92 W. This fan achieves a high speed of 10000 RPM, providing an airflow of 11 CFM (approximately 18.6 m³/h). Its noise level is 36.8 dB(A). It features a precise Vapo bearing system (MagLev technology) for reliable, quiet operation and extended life. It connects via 2 wire leads. The frame and fan blade materials are thermoplastic PBT with a UL94V-0 flammability rating. The fan also includes automatic restart and polarity protection. It is commonly used for cooling compact electronic components, 3D printer hotends, and other devices in tight spaces that require efficient 24V DC cooling.
MF40102VX-1Q03C-A99 Fan Parameters
Model: MF40102VX-1Q03C-A99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 40x40x10 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 8 to 25.2 VDC
Rated Current: 80 mA
Power Consumption: 1.92 W
Speed: 10000 RPM
Speed Tolerance: ±10%
Airflow: 11 CFM (18.6 m³/h)
Static Pressure: 0.29 inH2O (7.3 mmH2O)
Noise Level: 36.8 dB(A)
Bearing Type: Vapo Bearing (MagLev technology)
Termination: 2 Wire Leads
Frame Material: Thermoplastic PBT
Fan Blade Material: Thermoplastic PBT
Flammability Rating: UL94V-0
Insulation Class: A
Insulation Resistance: 10 MΩ minimum (at 500 VDC)
Dielectric Strength: 500 VAC for 1 minute
Motor Protection: Automatic Restart
Operating Temperature: -10 to 60°C
Storage Temperature: -40 to 60°C
Expected Life: 60,000 hours (at 40°C, 65% humidity)
Weight: 14.4 g
Application: Compact electronic components, 3D printers, small enclosures.
