Description

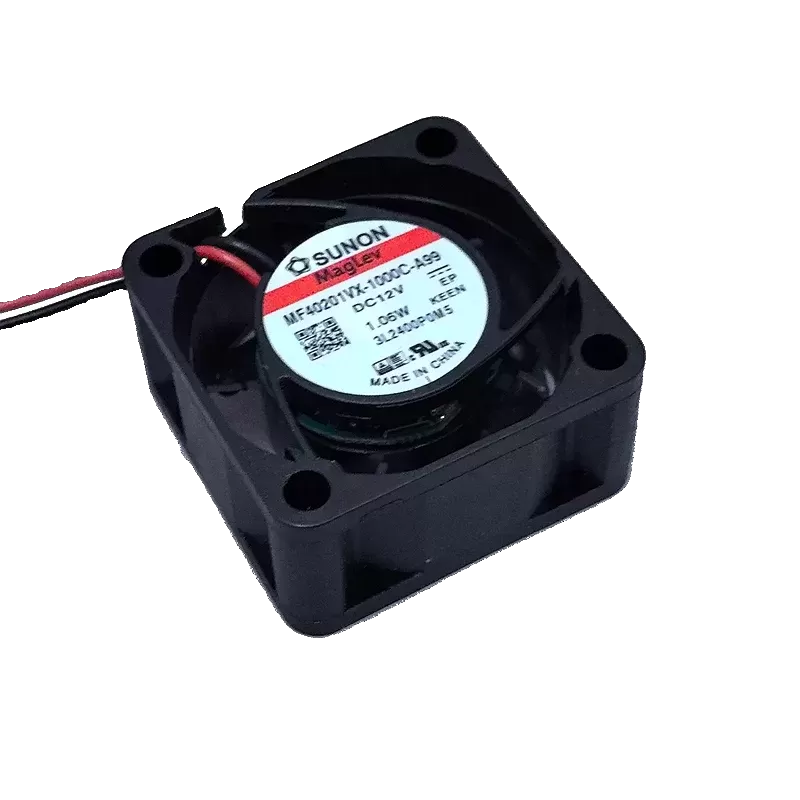

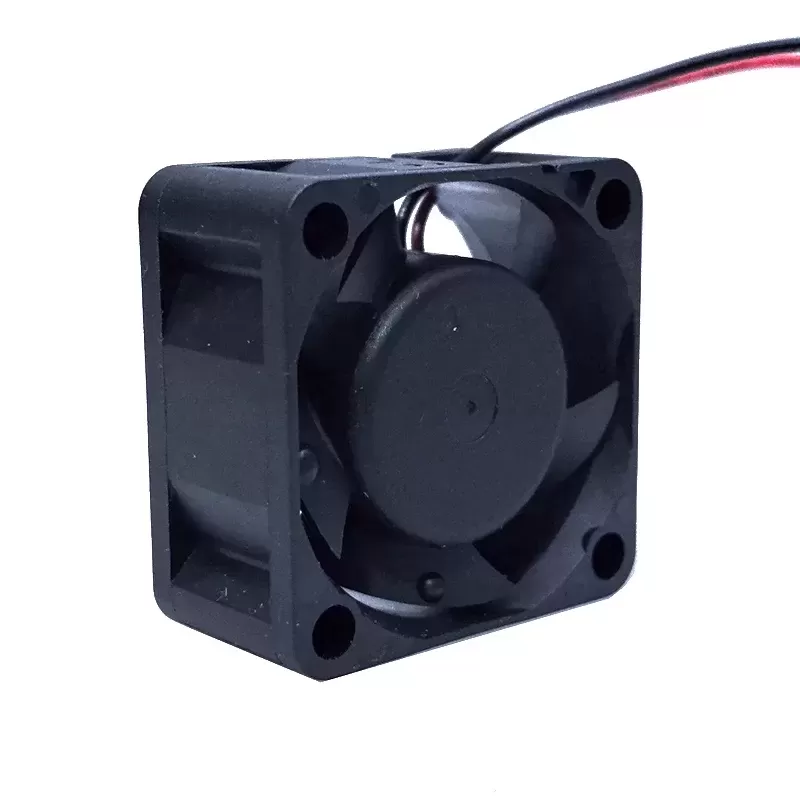

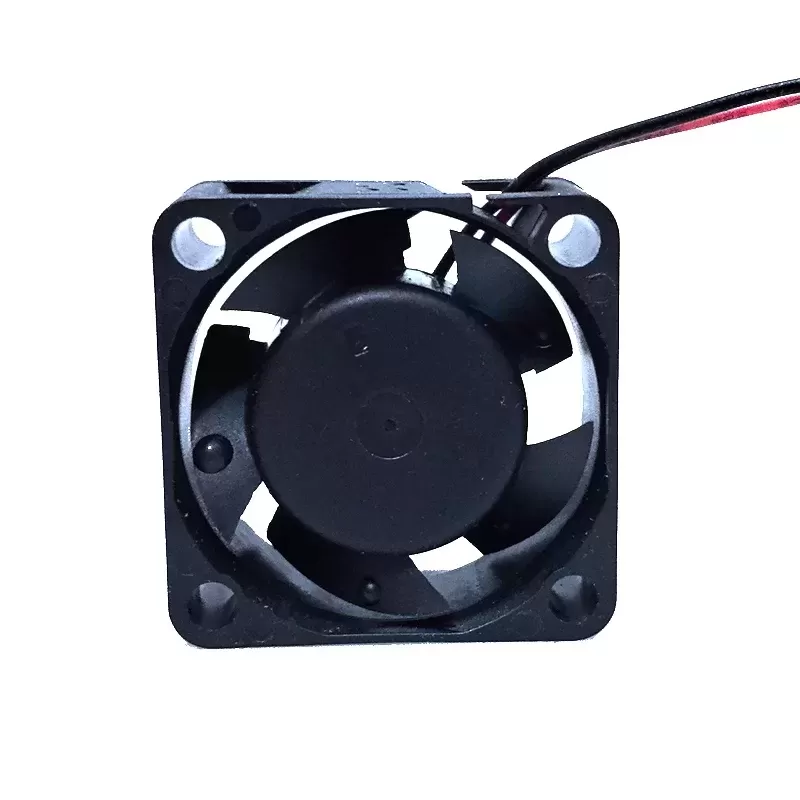

The SUNON MF40201VX-1000C-A99 is a high-output DC axial fan measuring 40x40x20mm. It operates on 12 VDC, drawing 0.088 A of current, with a power consumption of 1.06 W. This fan achieves a speed of 8000 RPM, providing an airflow of 10.8 CFM. The noise level is 27.5 dB(A). It features a precise Vapo bearing system for reliable, quiet operation and extended life, incorporating MagLev technology. It connects via 2 wire leads. The frame and fan blade materials are thermoplastic PBT with a UL94V-0 flammability rating. The fan also includes automatic restart and polarity protection. It is commonly used for cooling video heatsinks, mainboard chipsets, and other compact electronic components.
MF40201VX-1000C-A99 Fan Parameters
Model: MF40201VX-1000C-A99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 40x40x20 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 4.5 to 13.8 VDC
Rated Current: 0.088 A
Max Current: 0.092 A
Power Consumption: 1.06 W
Max Power Consumption: 1.11 W
Speed: 8000 RPM
Airflow: 10.8 CFM
Static Pressure: 0.29 inH2O
Noise Level: 27.5 dB(A)
Bearing Type: Vapo Bearing
Termination: 2 Wire Leads
Frame Material: Thermoplastic PBT
Fan Blade Material: Thermoplastic PBT
Flammability Rating: UL94V-0
Operating Temperature: -10 to 70°C
Storage Temperature: -40 to 70°C
Expected Life: 70,000 hours (at 40°C, 65% humidity, 90% CL)
Motor Protection: Automatic Restart, Polarity Protection
Weight: 29 g
Application: Video heatsinks, mainboard chipsets, compact electronic components.
