Description

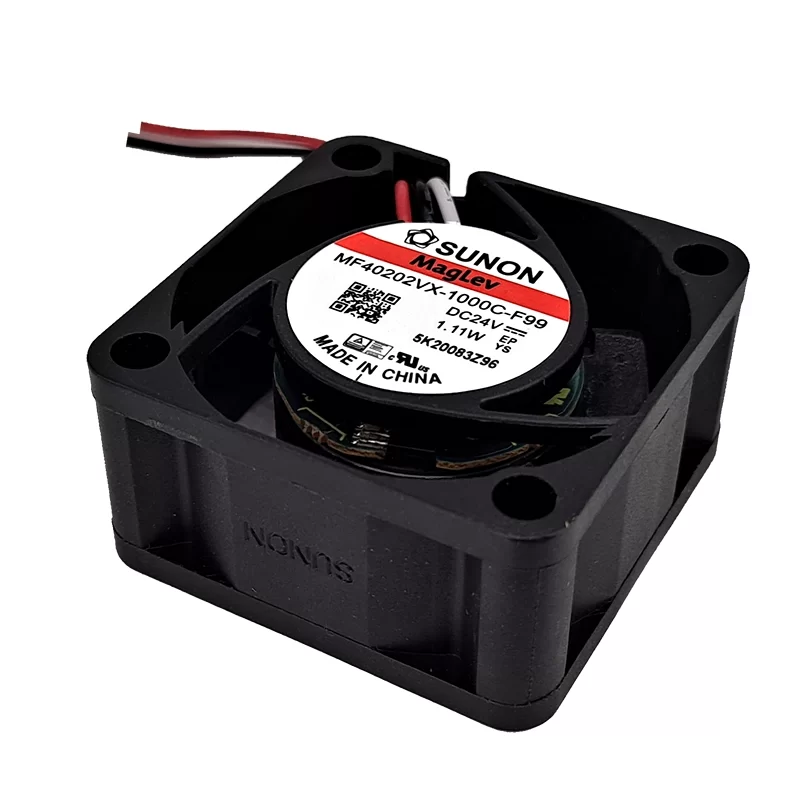

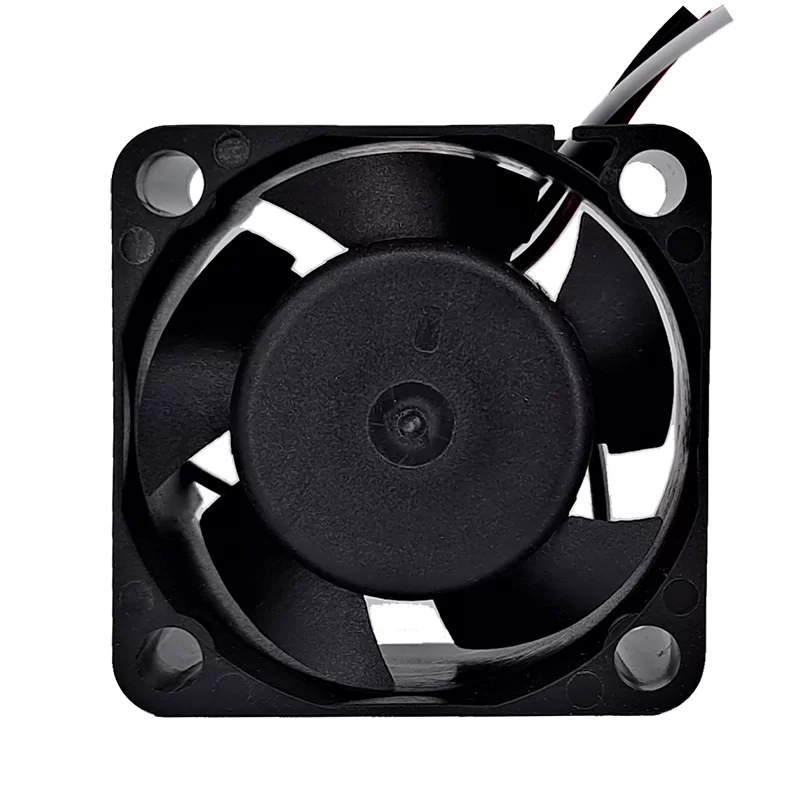

The SUNON MF40202VX-1000C-F99 is a high-output DC axial fan measuring 40x40x20mm. It operates on 24 VDC, drawing 46 mA of current, with a power consumption of 1.11 W. This fan achieves a speed of 8000 RPM, providing an airflow of 18.25 m³/h (approximately 10.8 CFM). The noise level is 27.5 dB(A). It features a precise Vapo bearing system for reliable, quiet operation and extended life, incorporating MagLev technology. It connects via 2 wire leads. The frame and fan blade materials are thermoplastic PBT with a UL94V-0 flammability rating. The fan also includes automatic restart and polarity protection. It is commonly used for cooling video heatsinks, mainboard chipsets, and other compact electronic components in systems requiring 24V DC.
MF40202VX-1000C-F99 Fan Parameters
Model: MF40202VX-1000C-F99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 40x40x20 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 8 to 27.6 VDC
Rated Current: 46 mA
Power Consumption: 1.11 W
Speed: 8000 RPM
Speed Tolerance: ±15% (at rated voltage)
Airflow: 18.25 m³/h (10.8 CFM)
Static Pressure: 7.37 mmH2O (0.29 inH2O)
Noise Level: 27.5 dB(A)
Bearing Type: Vapo Bearing (MagLev technology)
Termination: 2 Wire Leads
Frame Material: Thermoplastic PBT
Fan Blade Material: Thermoplastic PBT
Flammability Rating: UL94V-0
Operating Temperature: -10 to 70°C
Expected Life: 70,000 hours (at 40°C, 65% humidity, 90% CL)
Motor Protection: Automatic Restart, Polarity Protection
Weight: 29 g
Application: Video heatsinks, mainboard chipsets, compact electronic components, 24VDC systems.
