Description

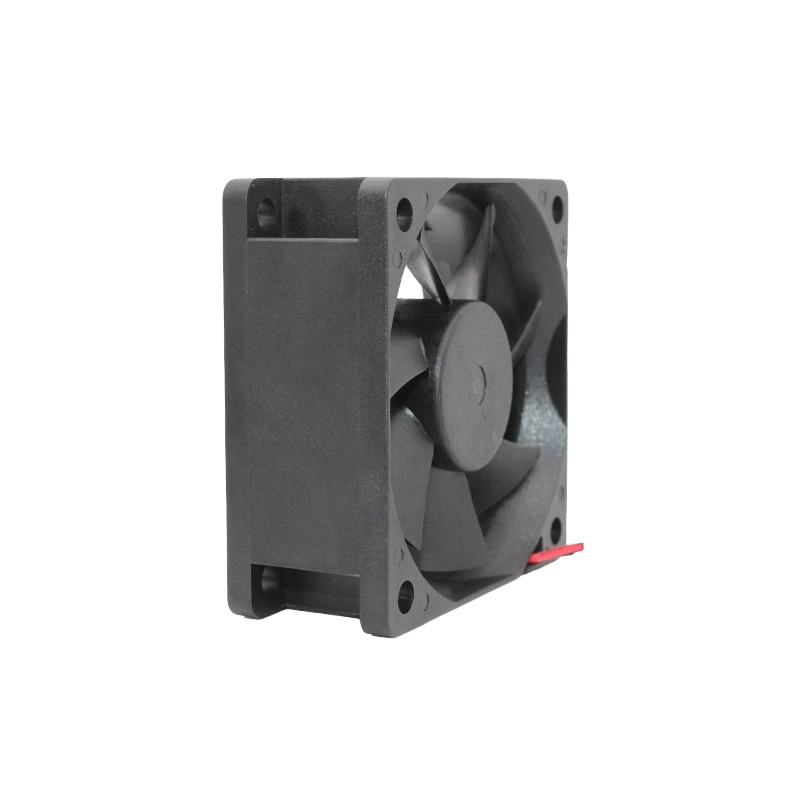

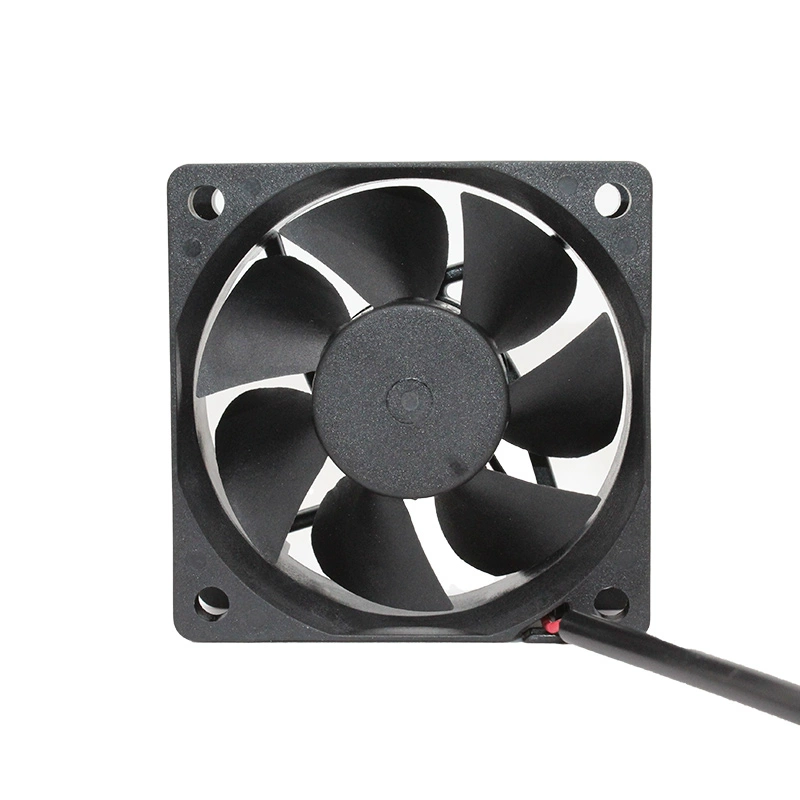

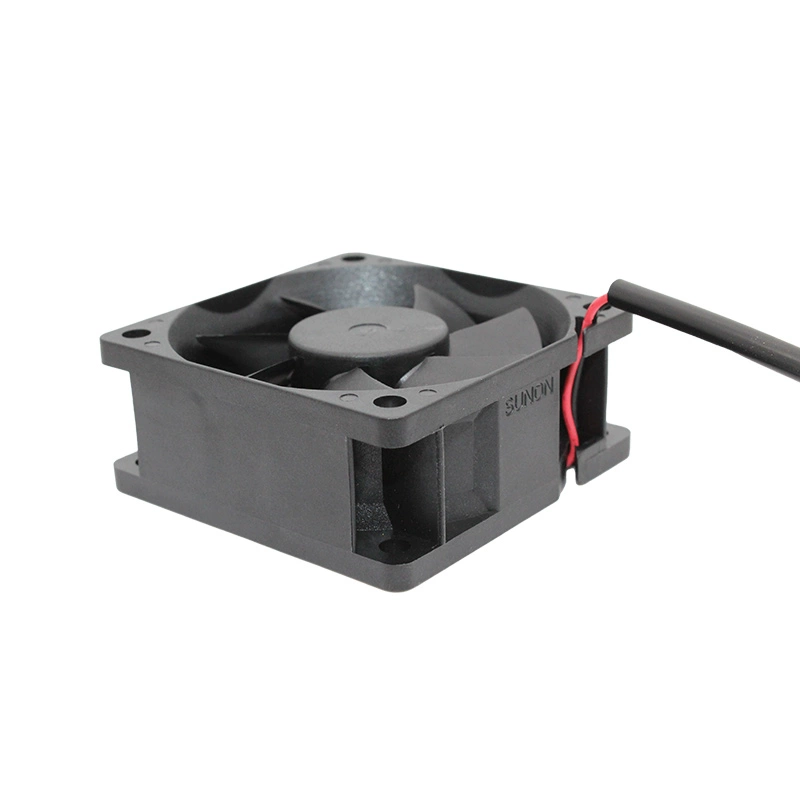

MF60251V2-10000-A99 SUNON 6025 DC 12V 0.89W silent cooling fan
Model Number: MF60251V2-10000-A99
Manufacturer: SUNON Fans
Fan Type: DC Brushless Axial Fan
Dimensions L x H x W: 60 mm x 60 mm x 25 mm
Rated Voltage: 12 VDC
Rated Current: 0.89A
Input Power: 1 W
Wiring: 2 Wire Leads
Bearing Type: Vapo-Bearing System
Rotational Speed RPM: 3800 RPM
Maximum Airflow: 19.3 CFM or 0.540 m³/min or 32.62 m³/h
Maximum Static Pressure: 0.150 in H2O or 37.3 Pa
Noise Level: 22 dB to 22.5 dB
Frame Material: Thermoplastic PBT UL 94V-0
Impeller Blade Material: Thermoplastic PBT UL 94V-0
Protection Functions: Auto Restart, Reverse Polarity Protection
Operating Temperature Range: -10°C to +70°C
Expected Life: 60,000 hours at 40°C
Mass: Approximately 45 g
The SUNON MF60251V2-10000-A99 is a reliable 60x60x25mm DC axial fan from SUNON’s line of quiet and efficient cooling solutions. Operating on 12VDC, it typically consumes 0.87W of power with a current draw of 0.072A. This fan features SUNON’s Vapo-Bearing system, known for its long lifespan and low operational noise, typically around 22 dB. It delivers 19.3 CFM of airflow at 3800 RPM, providing effective cooling for sensitive electronics. With its durable PBT construction and protection features like auto restart and reverse polarity protection, it’s an excellent choice for various applications including PCs, servers, industrial equipment, and other electronic devices where quiet, efficient, and reliable thermal management is needed.
