Description

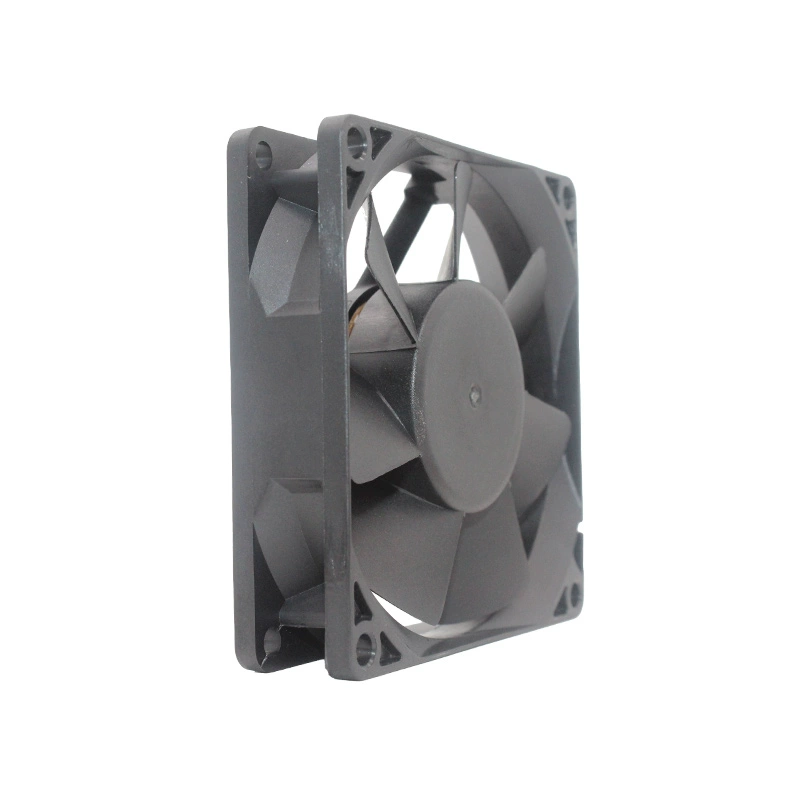

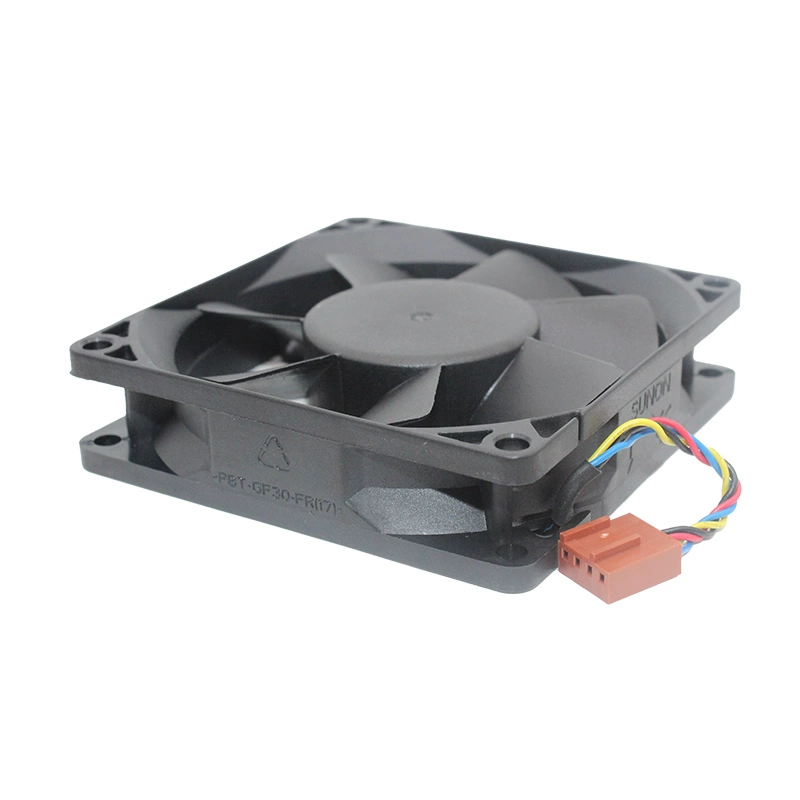

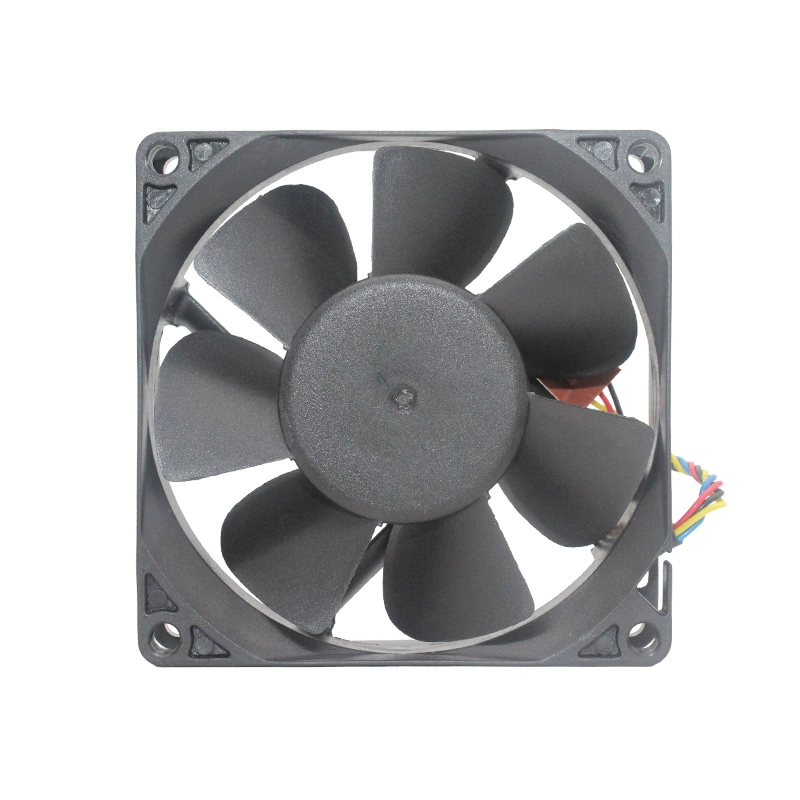

The Sunon MF80201VX-Q070-S99 is a high-performance 12V DC axial cooling fan from Sunon, measuring 80mm x 80mm x 20mm. Operating at a rated current of 0.20A (2.40W), this fan provides efficient airflow for various electronic cooling applications. It achieves a speed of approximately 3800 RPM, delivering an airflow of 42 CFM and a static pressure of 0.16 inch-H2O, while maintaining a noise level of 36.0 dBA. Equipped with Sunon’s reliable Vapo-Bearing system, it ensures a long operational life of 60,000 hours at 40°C. The fan utilizes 4-wire leads, providing both PWM control for precise speed adjustment and a speed sensor for real-time monitoring of fan status, along with auto-restart and polarity protection, making it a suitable choice for systems requiring robust and controllable cooling.
Model Number: MF80201VX-Q070-S99
Manufacturer: Sunon
Type: DC Axial Cooling Fan
Dimensions: 80mm x 80mm x 20mm
Rated Voltage: 12V DC
Rated Current: 0.20A
Rated Power: 2.40W
Speed: 3800 RPM
Airflow: 42 CFM / 1.19 m³/min
Static Pressure: 0.16 inch-H2O / 39.8 Pa
Noise Level: 36.0 dBA
Connector: 4-Wire Leads
Bearing Type: Vapo-Bearing
Life Expectancy: 60,000 hours at 40°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: PWM Control, Speed Sensor, Auto Restart, Polarity Protection
