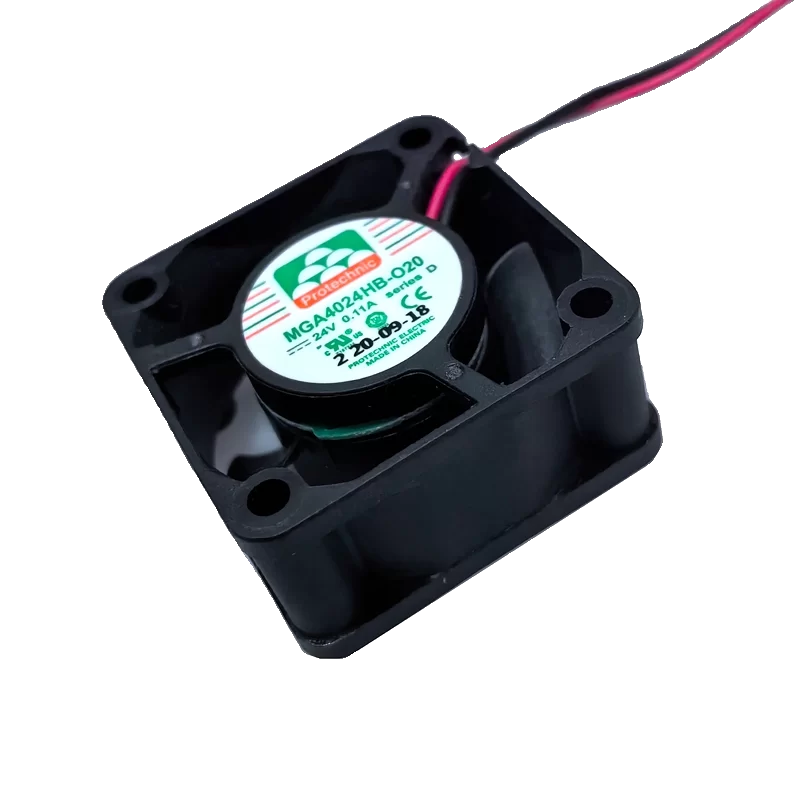

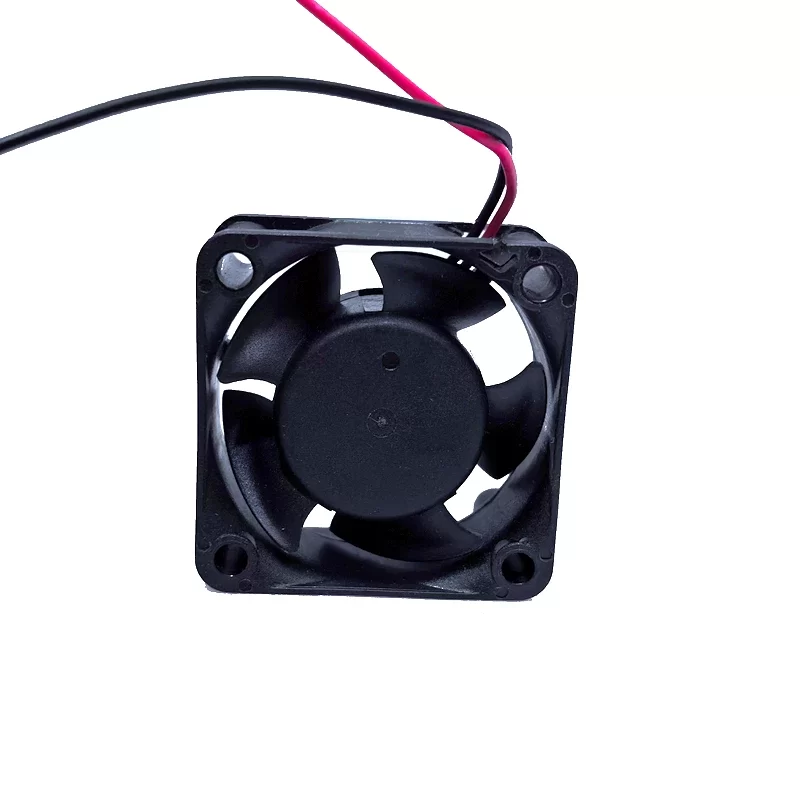

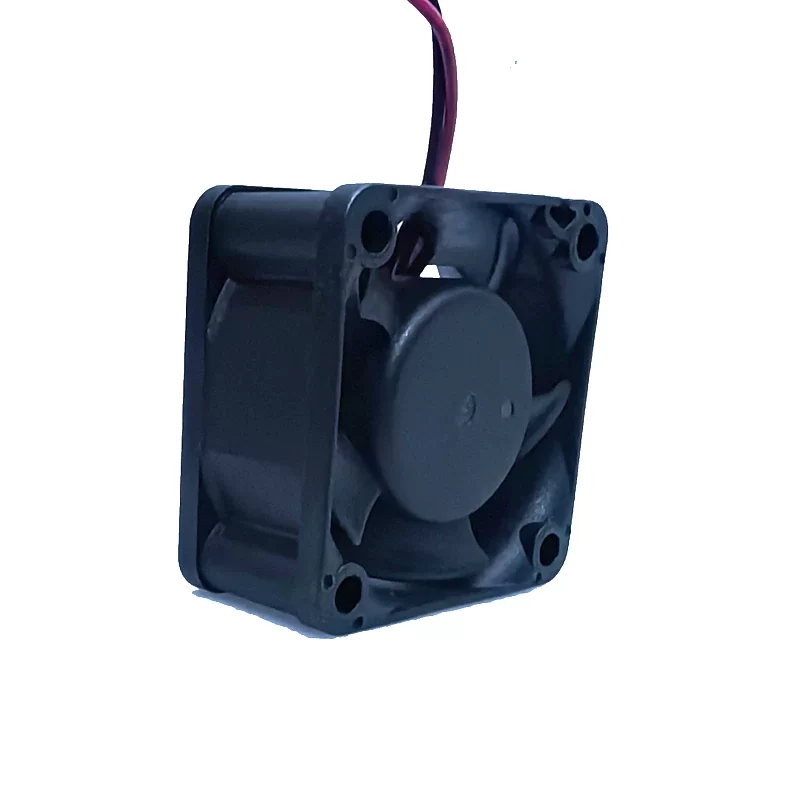

MGA0424HB-O20 Protechnic 24V 0.11A 40mm 4020 DC Axial Fan

Description

The Protechnic MGA0424HB-O20 is a high-speed compact 24V DC Axial Fan with dimensions of 40 x 40 x 20 mm, designed for precision thermal management in space-constrained electronic applications. Operating at a nominal 24 VDC, this unit reaches a rated speed of 8200 RPM, delivering an airflow of 18.4 m3/h (10.8 CFM) with a power consumption of 2.64 W. Built with a high-precision dual ball bearing system for enhanced reliability, the fan utilizes a 5-blade glass-fiber reinforced PBT impeller to maintain structural stability at high rotational speeds. The MGA0424HB-O20 is an essential cooling solution for 1U server components, network switches, and medical instrumentation where high static pressure and compact airflow are required to overcome high system impedance.

MGA0424HB-O20 Fan Parameters
Manufacturer: Protechnic Electric
Model Number: MGA0424HB-O20
Motor Design: Brushless DC Motor
Type: DC Axial Fan
Nominal Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Dimensions: 40 x 40 x 20 mm
Impeller Size: 40 mm
Number of Blades: 5
Mass: 40 g

[Electrical Data]
Nominal Speed: 8200 RPM (±10%)
Power Consumption: 2.64 W
Current Draw: 0.11 A
Starting Voltage: 12.0 VDC
Termination: 2 Lead wires
Lead Wire Length: 300 mm ± 10 mm
Motor Bearing: Dual Ball Bearing
Motor Protection: Polarity protection and locked rotor auto-restart

[Performance & Acoustics]
Max. Air Flow: 18.4 m3/h (10.8 CFM)
Max. Static Pressure: 92 Pa (0.37 inAq)
Sound Pressure Level: 36.5 dB(A)
Direction of Rotation: Clockwise (looking at rotor)
Airflow Direction: Exhaust over struts

[Materials & Construction]
Housing Material: Glass-fiber reinforced plastic (PBT, UL 94V-0)
Impeller Material: Glass-fiber reinforced plastic (PBT, UL 94V-0)
Mounting Position: Any
Frame Type: Ribbed

[Reliability & Protection]
Service Life (L10 at 40 °C): 70000 h
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Insulation Resistance: 10M Ω min at 500 VDC
Dielectric Strength: 5 mA max at 500 VAC 50/60 Hz for 1 minute
Approval: UL, CUL, TUV, CE

Application
The Protechnic MGA0424HB-O20 is specifically engineered for high-density cooling in mission-critical 24V environments where consistent airflow is required to maintain the stability of compact network routers, 1U rackmount servers, and industrial micro-controllers, utilizing its 20mm frame depth to provide superior static pressure compared to thinner 10mm or 15mm variants. Its robust dual ball bearing construction ensures a long service life of 70,000 hours in demanding 24/7 industrial applications, while the high-speed 8200 RPM motor ensures that concentrated heat loads are efficiently extracted from tightly packed electronic enclosures even under conditions of high back-pressure.
