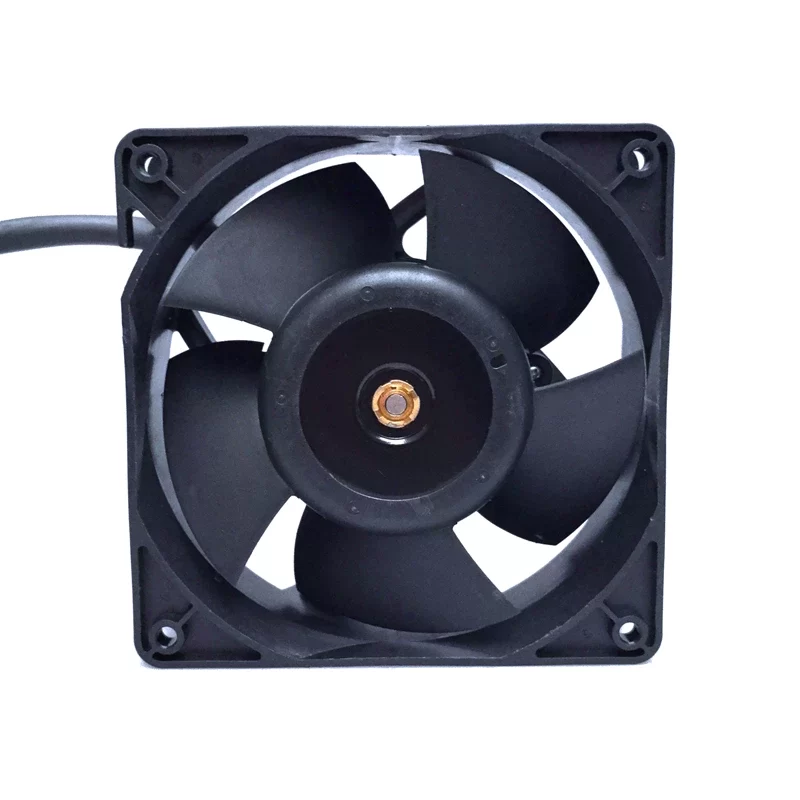

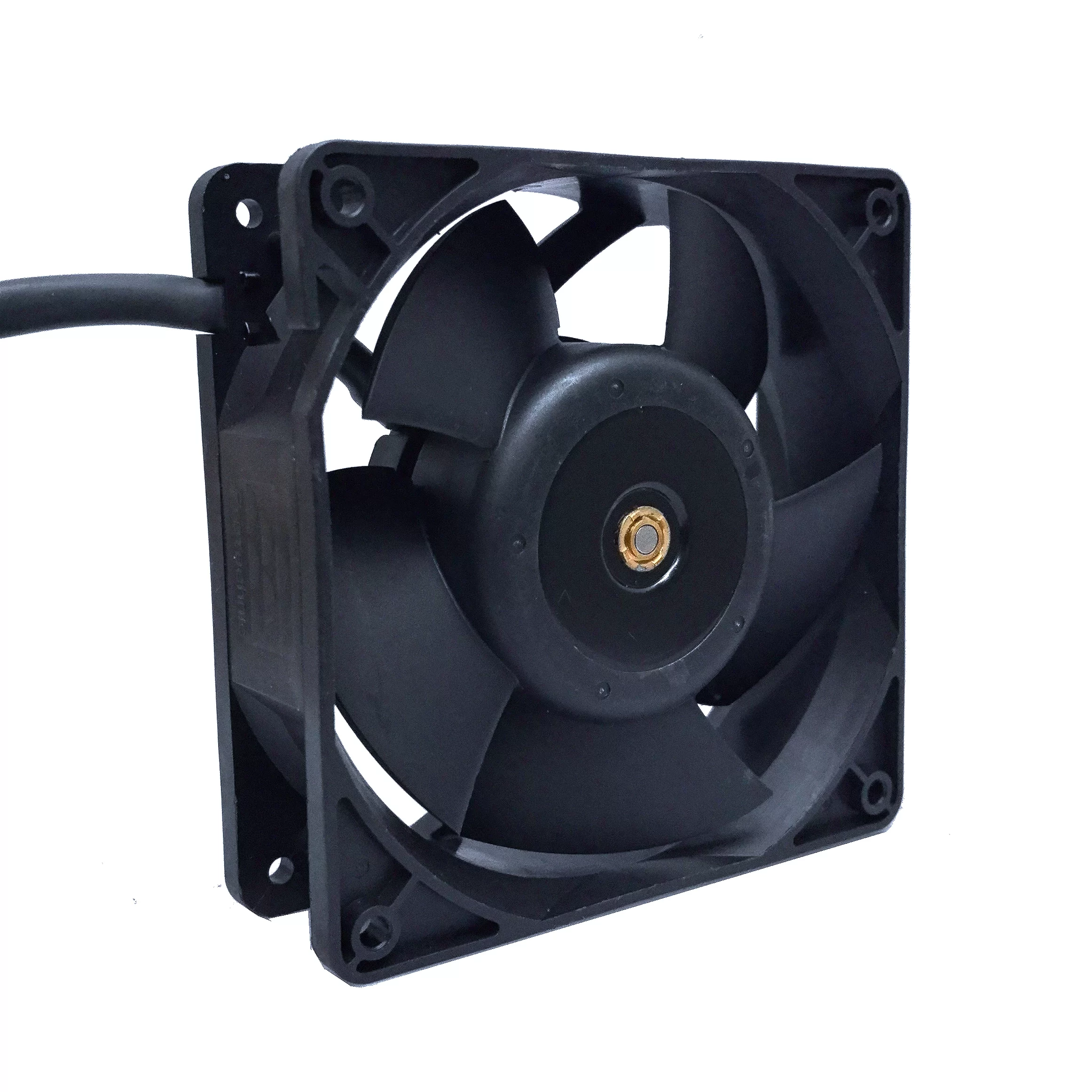

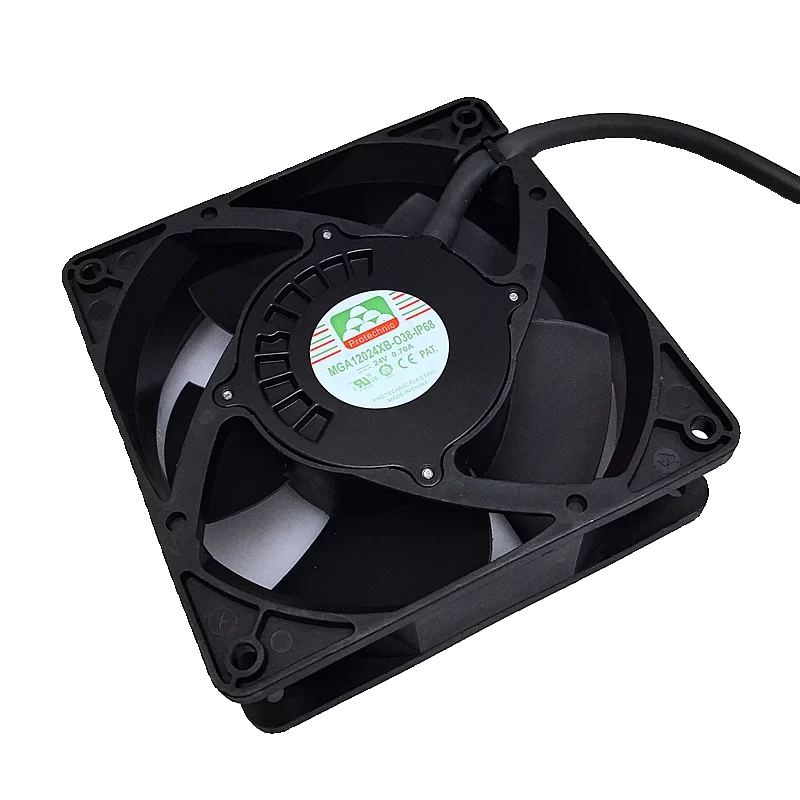

MGA12024XB-O38-IP68 Protechnic 24V 0.70A 12038 DC Axial Fan

Description

The Protechnic MGA12024XB-O38-IP68 is a ruggedized high-performance 24V DC Axial Fan with dimensions of 120 x 120 x 38 mm, specifically designed for harsh environments requiring superior moisture and dust resistance. Operating at a nominal 24 VDC, this specialized IP68-rated variant delivers a rated speed of 3500 RPM, providing an airflow of 220.5 m3/h (129.8 CFM) with a power consumption of 14.4 W. Built with a high-durability dual ball bearing system and a fully encapsulated motor, it ensures reliable 24/7 cooling performance in industrial and outdoor telecommunications infrastructure. The MGA12024XB-O38-IP68 is a mission-critical thermal management solution for energy storage systems, charging stations, and industrial control cabinets exposed to high humidity, rain, or heavy dust.

MGA12024XB-O38-IP68 Fan Parameters
Manufacturer: Protechnic Electric
Model Number: MGA12024XB-O38-IP68
Motor Design: Brushless DC Motor
Type: DC Axial Fan
Nominal Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Dimensions: 120 x 120 x 38 mm
Impeller Size: 120 mm
Number of Blades: 5
Mass: 315 g

[Electrical Data]
Nominal Speed: 3500 RPM
Power Consumption: 14.4 W
Current Draw: 0.60 A
Termination: 2 Lead wires
Motor Bearing: Ball bearing
Motor Protection: Polarity, locked rotor, and IP68 environmental protection

[Performance & Acoustics]
Max. Air Flow: 220.5 m3/h (129.8 CFM)
Max. Static Pressure: 122 Pa (0.49 inAq)
Sound Pressure Level: 51.0 dB(A)
Direction of Rotation: Clockwise (looking at rotor)
Airflow Direction: Exhaust over struts

[Materials & Construction]
Housing Material: Glass-fiber reinforced plastic (PBT, UL 94V-0)
Impeller Material: Glass-fiber reinforced plastic (PBT, UL 94V-0)
Mounting Position: Any
Frame Type: Ribbed

[Reliability & Protection]
Service Life (L10 at 40 °C): 70000 h
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Ingress Protection: IP68 (Dust-tight and protected against long-term immersion)
Approval: UL, CUL, TUV, CE

Application
The Protechnic MGA12024XB-O38-IP68 is specifically engineered for high-density cooling in mission-critical 24V environments where consistent airflow must be maintained despite exposure to water, salt spray, or heavy dust, making it ideal for outdoor telecommunications base stations, renewable energy inverters, and marine-grade electronic enclosures. Utilizing its 38mm frame depth to provide enhanced static pressure compared to standard 25mm fans, its robust dual ball bearing construction and IP68-rated motor encapsulation ensure a long service life of 70,000 hours in demanding 24/7 industrial applications where standard fans would fail due to environmental ingress.
