Description

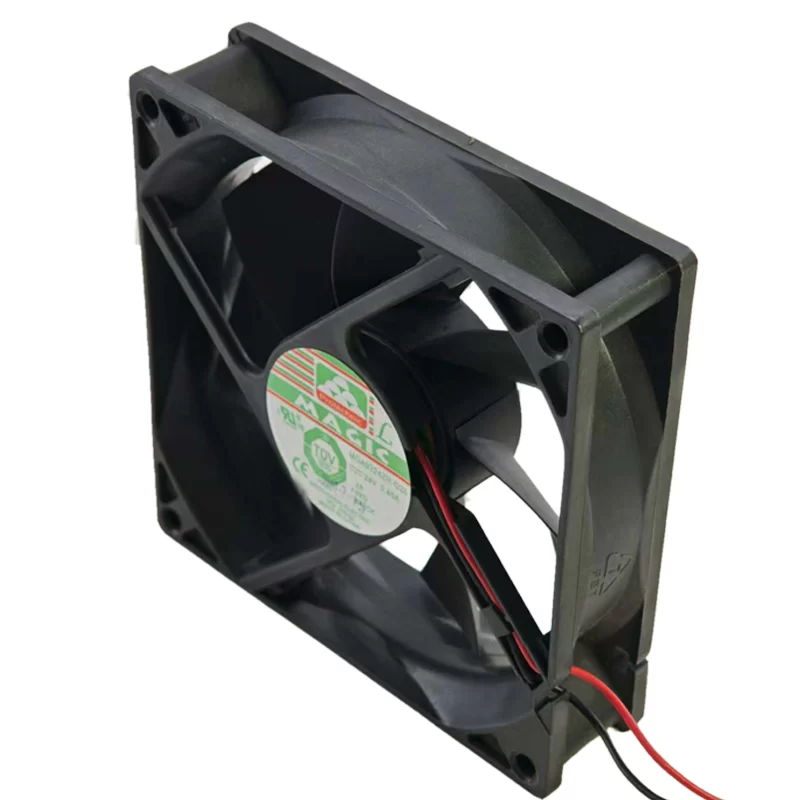

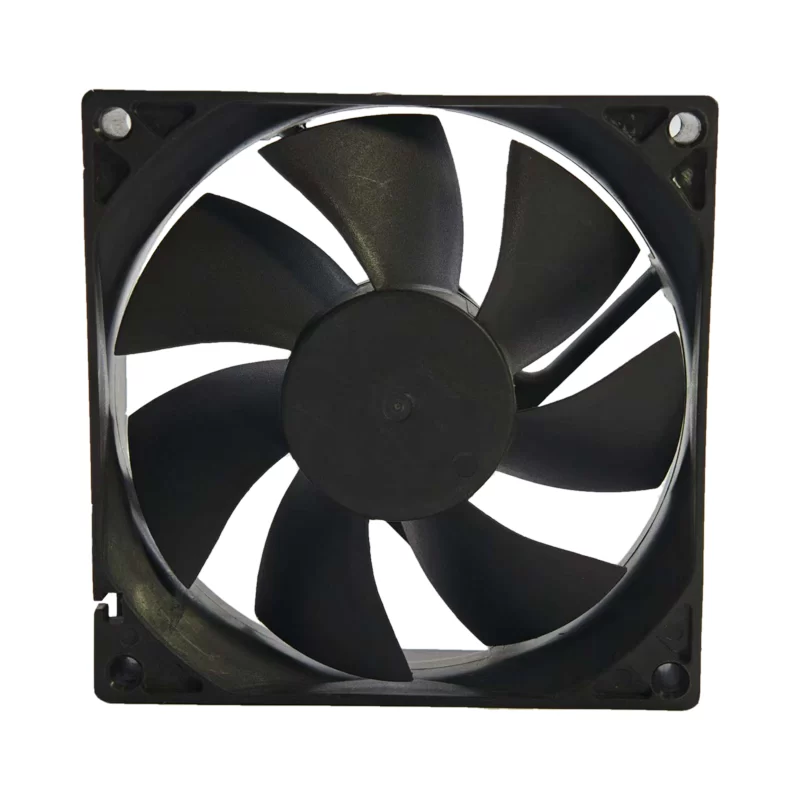

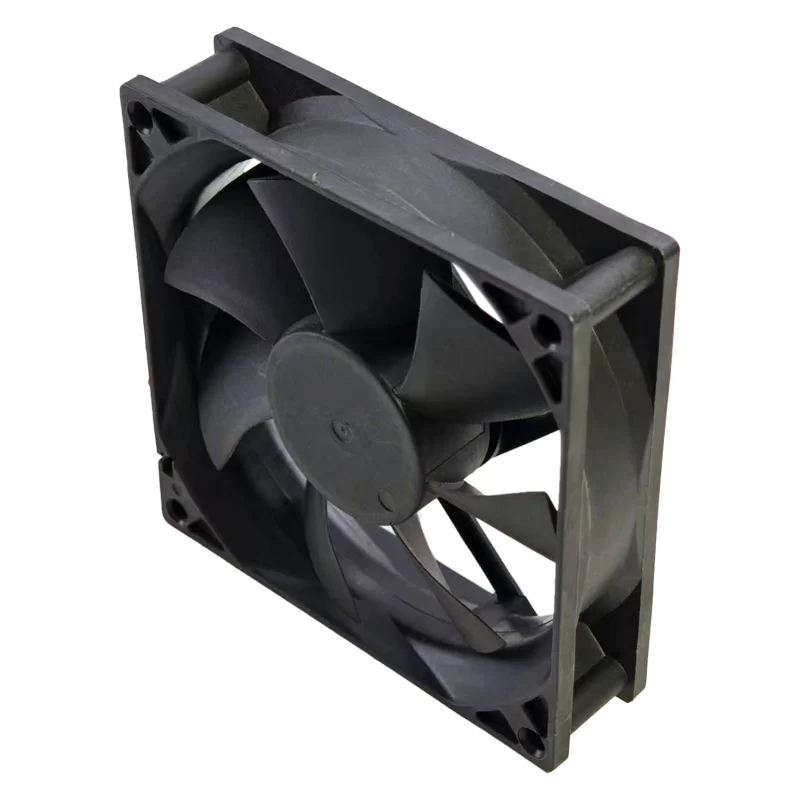

The Protechnic MGA9224ZR-O25 is a standard 24VDC axial fan with dimensions of 92x92x25mm. It is designed for general-purpose cooling, providing 46CFM (78.2m³/h) of airflow and generating 0.14inchH₂O (34.9Pa) of static pressure. Operating at 2700RPM, the fan consumes 9.6W of power and is built with durable plastic materials. It uses ball bearings for a long and reliable lifespan of 50,000 hours. The two-wire termination provides a direct power connection. It is commonly used for cooling power supplies, industrial control systems, and network equipment.
MGA9224ZR-O25 Fan Parameters
Manufacturer: Protechnic
Model: MGA9224ZR-O25
Fan Type: DC Axial Fan
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 24 VDC
Current Rating: 0.40 A
Power Consumption: 9.6 W
Airflow: 46 CFM (78.2 m³/h)
Static Pressure: 0.14 inch H₂O (34.9 Pa)
Speed: 2700 RPM
Noise Level: 34.0 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10 °C ~ 60 °C
Lifetime @ Temp: 50,000 Hours @ 40 °C
Weight: 95 g
Application: This Protechnic DC axial fan is suitable for cooling power supplies, industrial control systems, and network equipment.
