Description

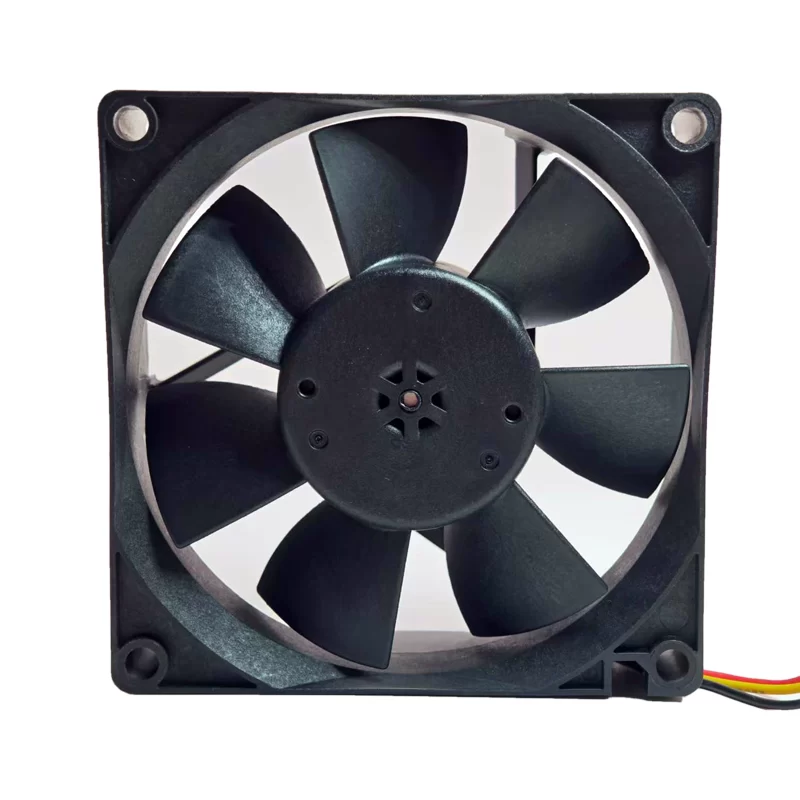

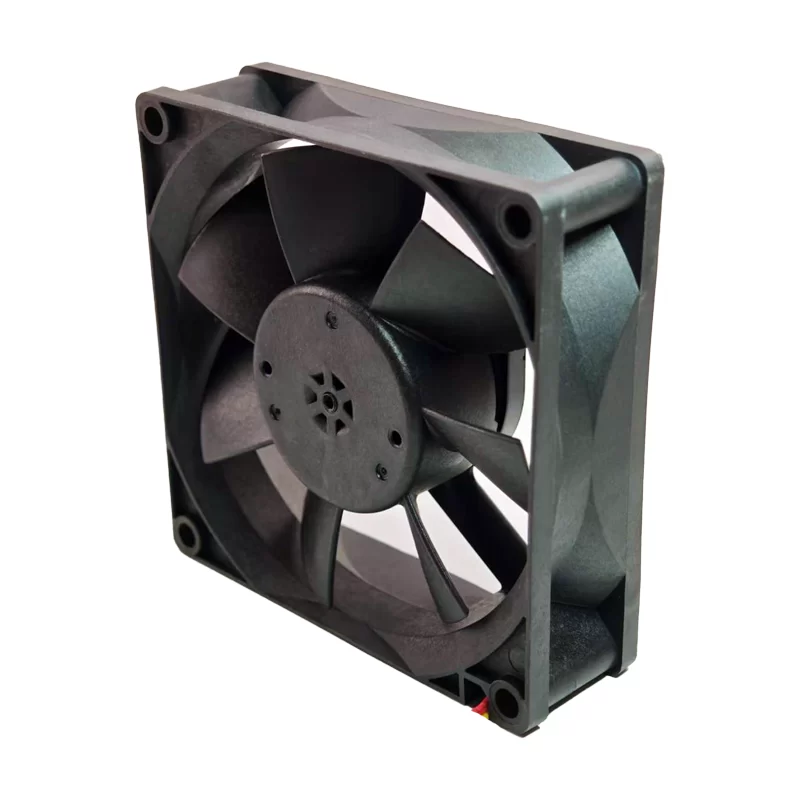

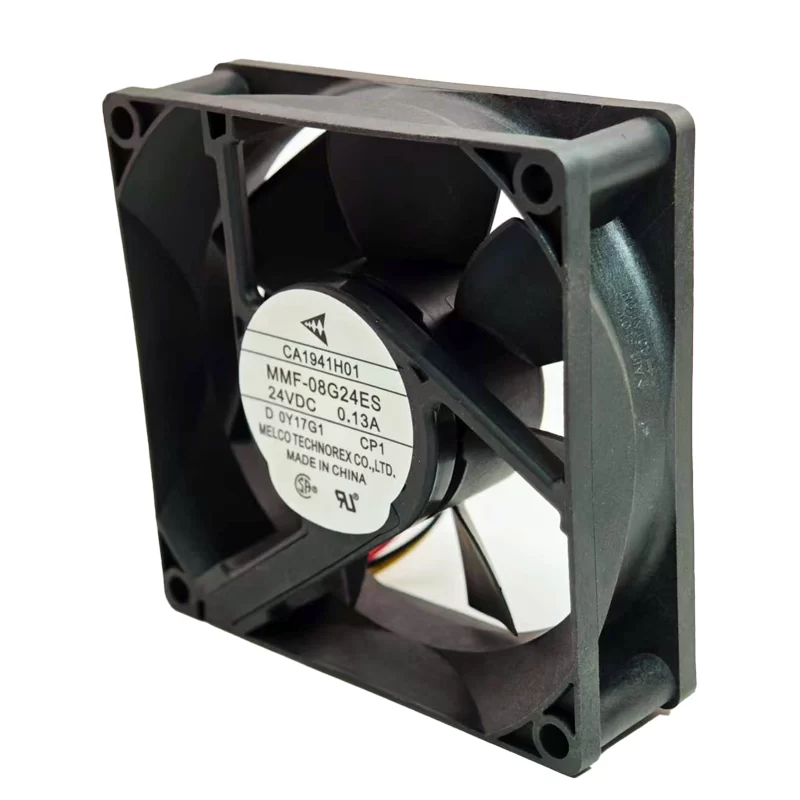

The MMF-08G24ES-CP1 is a reliable 24V DC axial cooling fan, prominently supplied and utilized by Melco Technorex Co., Ltd. for integration into various Mitsubishi Electric (MELCO) industrial automation products. This fan, originally produced by NMB Technologies, features dimensions of 80mm x 80mm x 25mm. It operates at a rated current of 0.13A (3.12W), providing efficient thermal management for critical electronic components. The fan achieves a rotational speed of approximately 3200 RPM, delivering about 43.8 CFM of airflow with a moderate static pressure. Its typical noise output is 35.0 dBA, offering a balanced performance suitable for industrial environments. Equipped with durable ball bearings, this fan ensures a long and reliable operational lifespan. For system integration and monitoring, it commonly features 3-wire leads, which include a pulse sensor (tachometer) output.
MMF-08G24ES-CP1 Fan Parameters
Model Number: MMF-08G24ES-CP1
Supplier/Integrator: Melco Technorex Co., Ltd
Type: DC Axial Cooling Fan
Dimensions: 80mm x 80mm x 25mm
Rated Voltage: 24V DC
Operating Voltage: 14.0V to 27.6V DC (typical for NMB 24V fans)
Rated Current: 0.13A
Rated Power: 3.12W
Speed: 3200 RPM (approx.)
Airflow: 43.8 CFM / 1.24 m³/min (approx.)
Static Pressure: 0.17 inch-H2O / 42.3 Pa (approx.)
Noise Level: 35.0 dBA (approx.)
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: Typically 60,000 hours at 60°C (for NMB ball bearing fans)
Operating Temperature: -10°C to 70°C
Frame Material: Plastic (typically PBT)
Impeller Material: Plastic (typically PBT)
Features: Pulse Sensor (Tachometer), Auto Restart, Polarity Protection
