Description

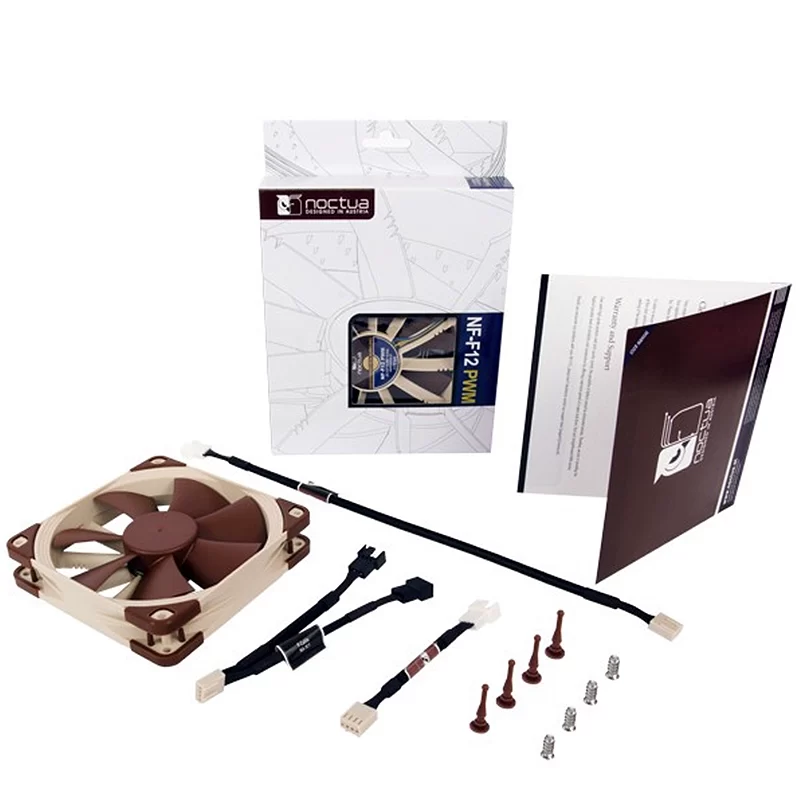

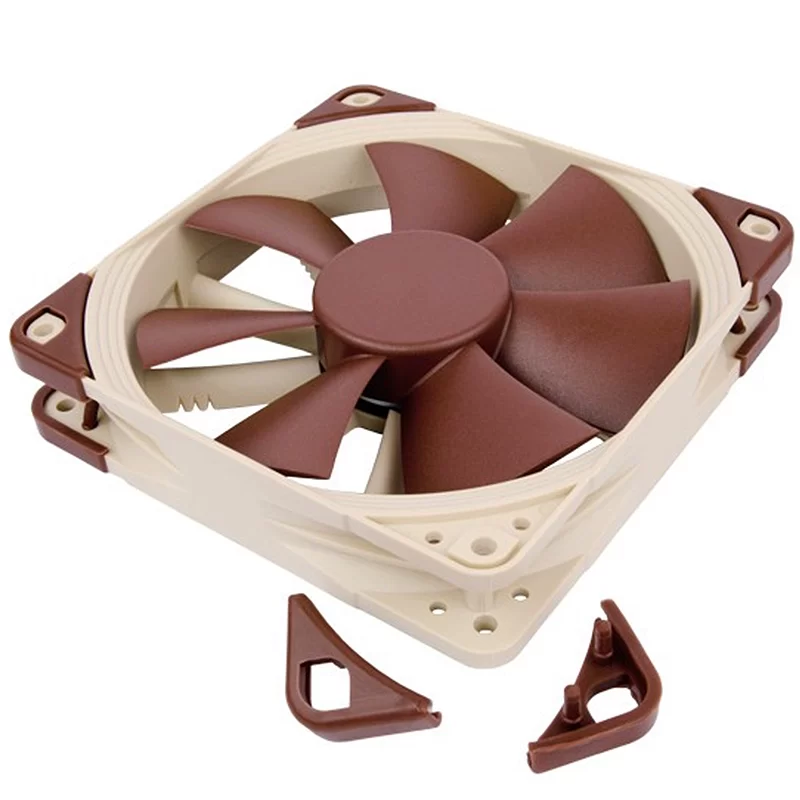

The Noctua NF-F12 PWM is a 12V DC Axial Fan with dimensions of 120x120x25mm, specifically designed for high static pressure applications like CPU coolers and radiators. It operates within a voltage range of 5 to 13V DC. The fan has a rated current of 0.05A and a power consumption of 0.6W. Its rotational speed is PWM-controlled, ranging from a minimum of 300RPM up to a maximum of 1500RPM. It provides a maximum airflow of 93.4m³/h (54.9 CFM) and a maximum static pressure of 25.5Pa (2.61 mmH2O), with a maximum noise level of 22.4dB(A). It is equipped with Noctua’s proprietary SSO2 (Self-Stabilising Oil-Pressure) bearing for an MTTF (Mean Time To Failure) of over 150,000 hours. The fan is constructed from fibre-glass reinforced Liquid Crystal Polymer (LCP) and features a 4-pin PWM termination, typically including a Low-Noise Adaptor (L.N.A.) and integrated anti-vibration pads.
NF-F12 PWM Fan Parameters
Model: NF-F12 PWM
Manufacturer: Noctua
Type: DC Axial Fan (High Static Pressure Optimized)
Dimensions: 120 x 120 x 25 mm
Nominal Voltage: 12 V DC
Operating Voltage Range: 5 .. 13 V
Rated Current: 0.05 A
Power Consumption: 0.6 W
Max. Rotational Speed: 1500 RPM
Min. Rotational Speed (PWM): 300 RPM
Max. Airflow: 93.4 m³/h (54.9 CFM)
Max. Static Pressure: 25.5 Pa (2.61 mmH2O)
Max. Noise Level: 22.4 dB(A)
Bearing Type: SSO2 (Self-Stabilising Oil-Pressure Bearing)
Material Frame: Fibre-glass reinforced Liquid Crystal Polymer (LCP)
Material Impeller: Fibre-glass reinforced Liquid Crystal Polymer (LCP)
MTTF: >150,000 h
Termination: 4-pin PWM
Features: PWM Control, Low-Noise Adaptor (L.N.A.), FocusedFlow™ frame, Heptaperfect™ impeller, Integrated Anti-vibration pads
Application: Ideal for CPU coolers, radiators, and other applications that require excellent static pressure performance to push air through restrictive elements.
