Description

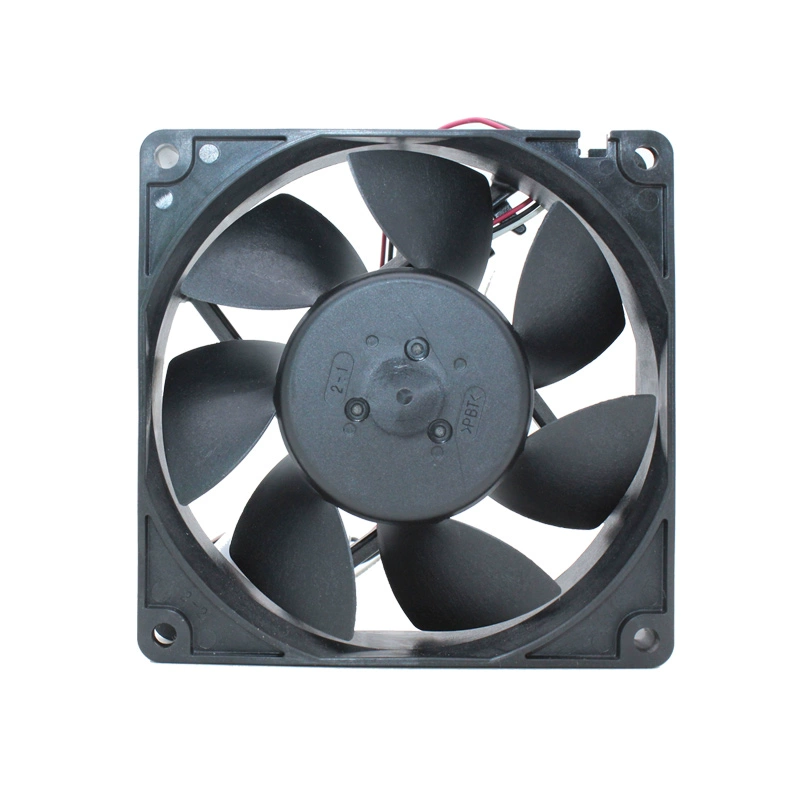

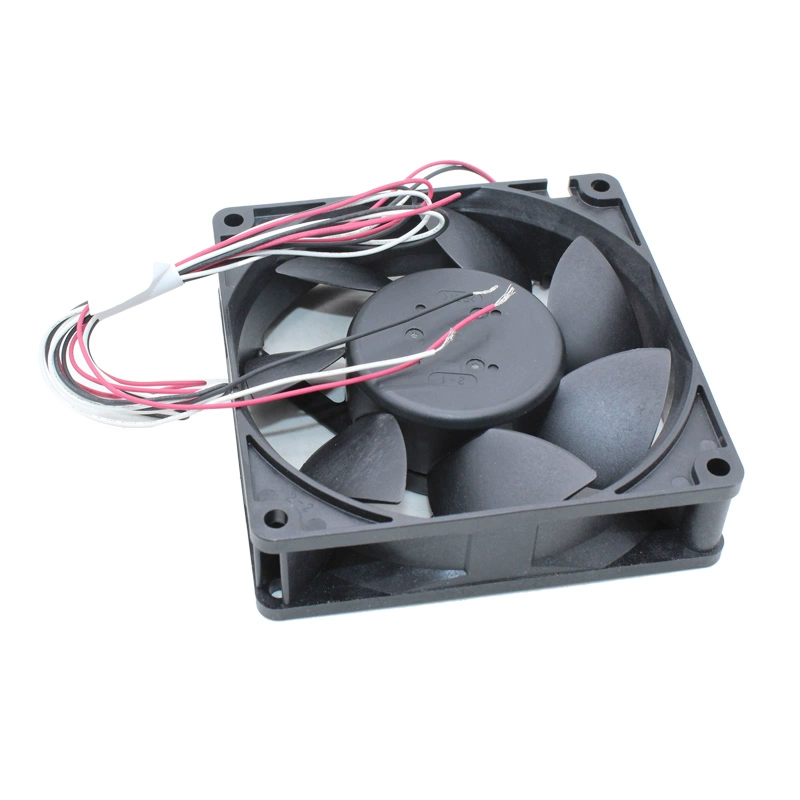

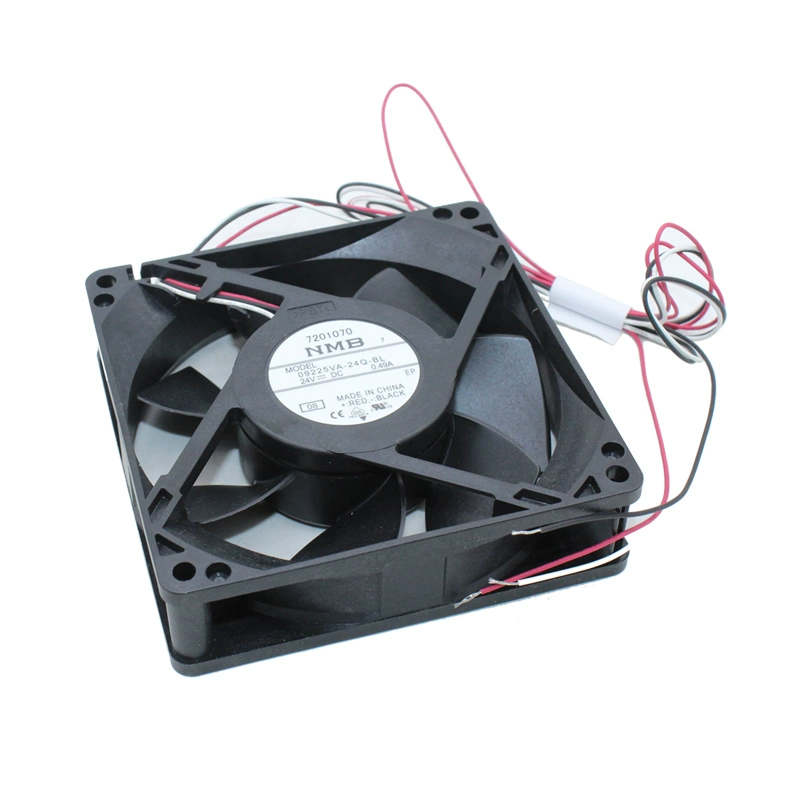

NMB 09225VA-24Q-BL 9025 waterproof chassis fan Minebea 24V 9cm heat dissipation cabinet fan
Model Number: 09225VA-24Q-BL
Manufacturer: NMB Technologies Corporation
Series: 09225VA
Fan Type: DC Brushless Axial Fan
Dimensions L x H x W: 92 mm x 92 mm x 25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 14 VDC to 27.6 VDC
Rated Current: 0.49 A
Input Power: 11.76 W
Wiring: 3 Wire Leads
Bearing Type: Ball Bearing
Rotational Speed RPM: Approximately 5600 RPM
Maximum Airflow: Approximately 96.4 CFM
Maximum Static Pressure: Approximately 0.600 In H2O or 149.5 Pa
Noise Level: Approximately 51.0 dB
Frame Material: Plastic
Impeller Blade Material: Plastic
Protection Functions: Auto Restart, Locked Rotor Sensor
Operating Temperature Range: -10°C to +70°C
Expected Life L10: 100,000 Hours at 25°C
Mass: Approximately 150 g
The NMB 09225VA-24Q-BL is a high-performance 92x92x25mm DC axial fan from NMB Technologies, designed for efficient and reliable cooling. Operating on 24VDC, it consumes 11.76W of power with a current draw of 0.49A. This fan features durable ball bearings for an exceptionally long expected life of 100,000 hours. It delivers a powerful airflow of approximately 96.4 CFM at around 5600 RPM, with a noise level of approximately 51.0 dB. Its 3-wire configuration typically provides a locked rotor sensor for system monitoring, alongside an auto-restart feature. This fan is a robust and effective solution for cooling applications such as power supplies, industrial control cabinets, server chassis, and other electronic systems where reliable and high-volume airflow is required.
