Description

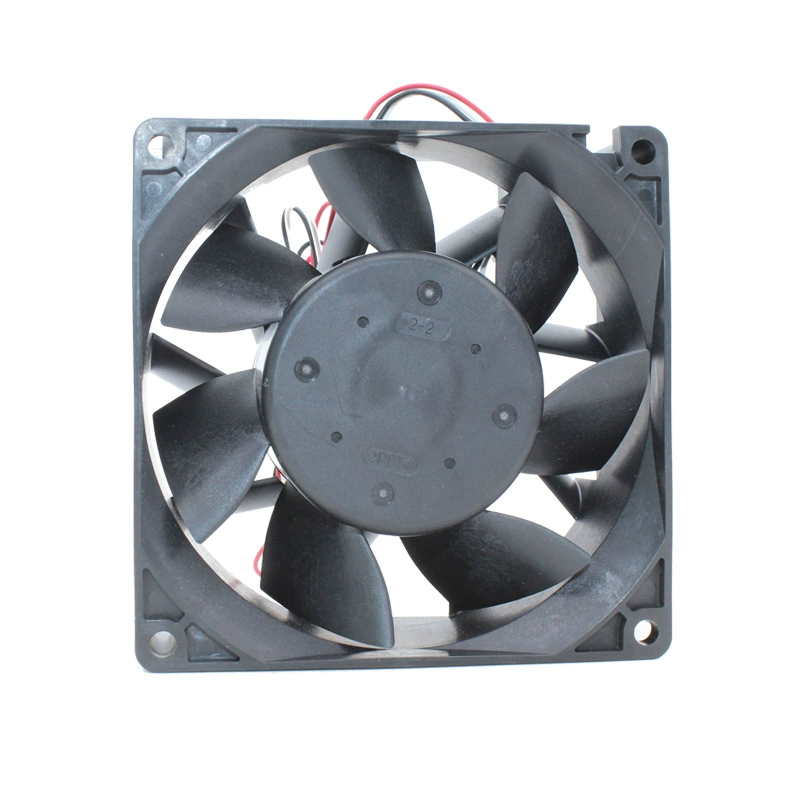

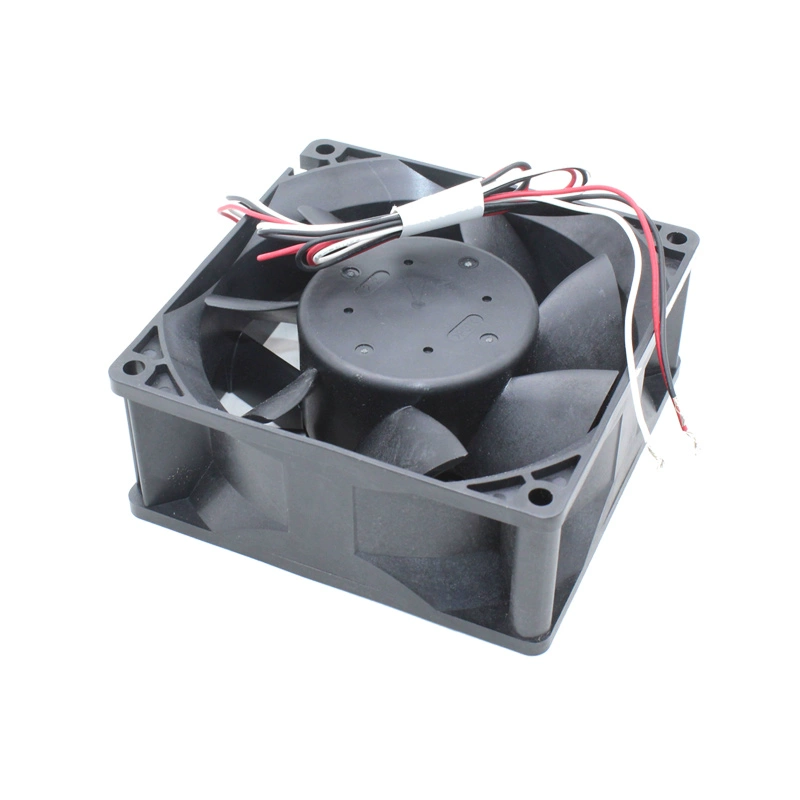

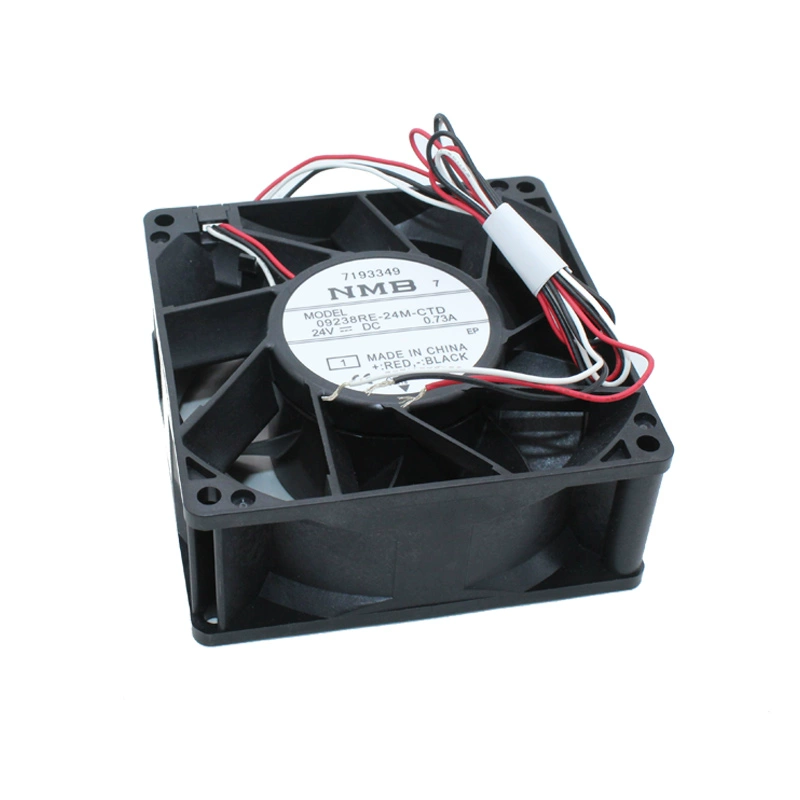

NMB 09238RE-24M-CTD 9038 inverter fan 24V 9cm heat dissipation cabinet fan Minebeya
Model Number: 09238RE-24M-CTD
Manufacturer: NMB Technologies Corporation
Series: 09238RE
Fan Type: DC Brushless Axial Fan
Dimensions L x H x W: 92 mm x 92 mm x 38 mm
Rated Voltage: 24 VDC
Rated Current: 0.73 A
Input Power: 17.52 W
Wiring: 3 Wire Leads
Bearing Type: Ball Bearing
Rotational Speed RPM: 4000 RPM
Noise Level: 40 dB to 49 dB
Frame Material: Plastic
Impeller Blade Material: Plastic
Features: Tachometer Output
Mass: Approximately 230 g
The NMB 09238RE-24M-CTD is a robust 92x92x38mm DC axial fan from NMB Technologies, designed for effective thermal management in various applications. Operating on 24VDC, it consumes 17.52W of power with a current draw of 0.73A. This fan features durable ball bearings, ensuring reliable operation. It provides significant airflow at a rotational speed of 4000 RPM, with a noise level typically between 40 dB and 49 dB. The 3-wire configuration includes a tachometer output for real-time speed monitoring, which is crucial for critical systems. This fan is a suitable choice for cooling inverters, servers, industrial control cabinets, and other electronic equipment where reliable performance and speed monitoring are essential.
