NUB0612MB-R00 Delta 12V DC Axial Fan

Description

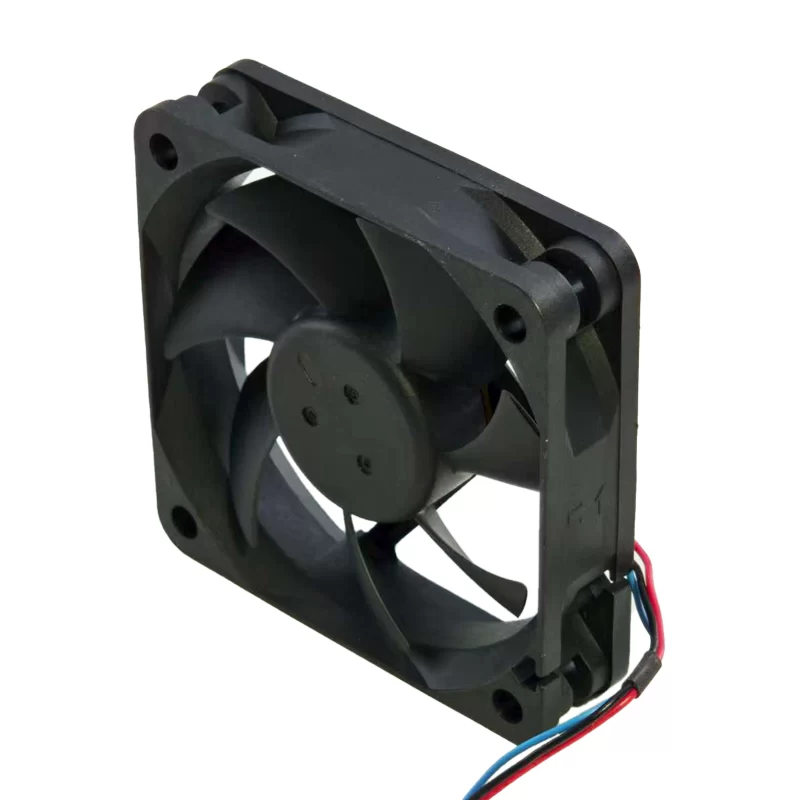

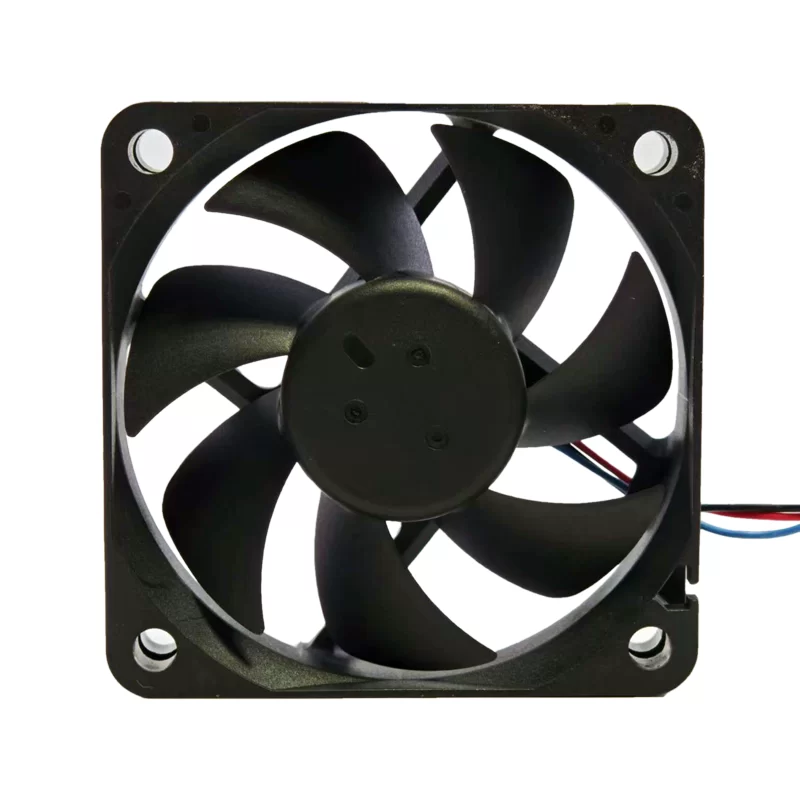

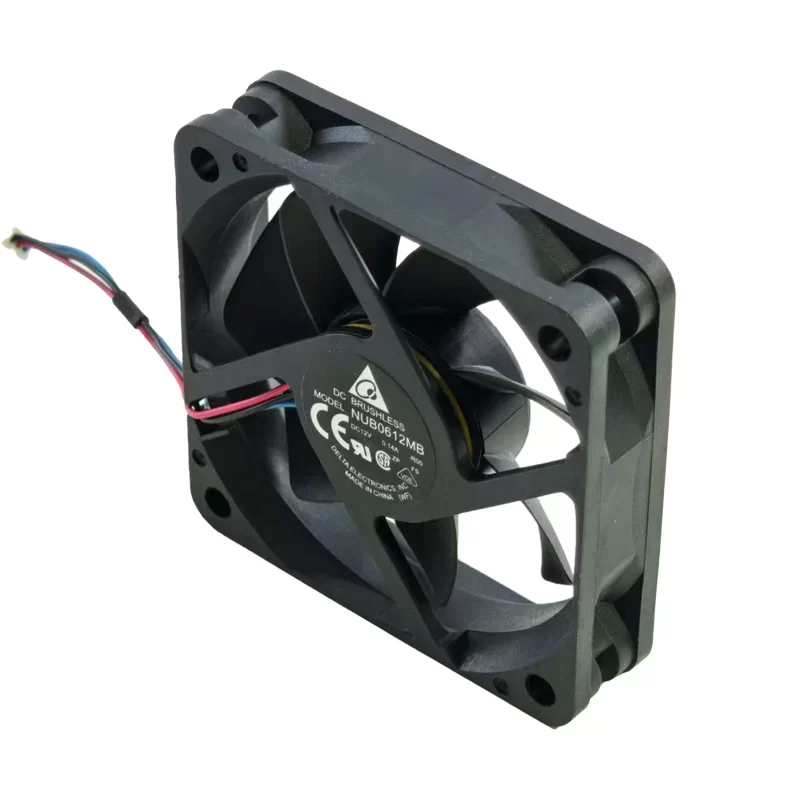

The Delta NUB0612MB-R00 is a DC axial fan with dimensions of 60 x 60 x 15 mm. It operates on 12V DC, drawing a nominal current of 0.06 A and consuming 0.72 W of power. This fan runs at a speed of 3600 RPM, delivering an airflow of 17.06 CFM with a static pressure of 0.089 inch H₂O. It produces a noise level of 28 dB(A). The fan uses ball bearings and is terminated with three-wire leads. It operates within a temperature range of -10 °C to 70 °C and is commonly used as a projector cooling fan.

NUB0612MB-R00 Fan Parameters
Manufacturer: Delta Electronics
Model: NUB0612MB-R00
Fan Type: DC Axial Fan
Dimensions: 60 x 60 x 15 mm
Rated Voltage: 12V DC
Current Rating: 0.06 A
Label Current: 0.14 A
Power Consumption: 0.72 W
Airflow: 17.06 CFM
Static Pressure: 0.089 inch H₂O
Speed: 3600 RPM
Noise Level: 28 dB(A)
Bearing Type: Ball bearing
Termination: 3-Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10 °C to 70 °C

Application
The NUB0612MB-R00 fan is commonly used as a projector cooling fan and is also suitable for general cooling applications in computer equipment, medical devices, and other electronic enclosures.
