Description

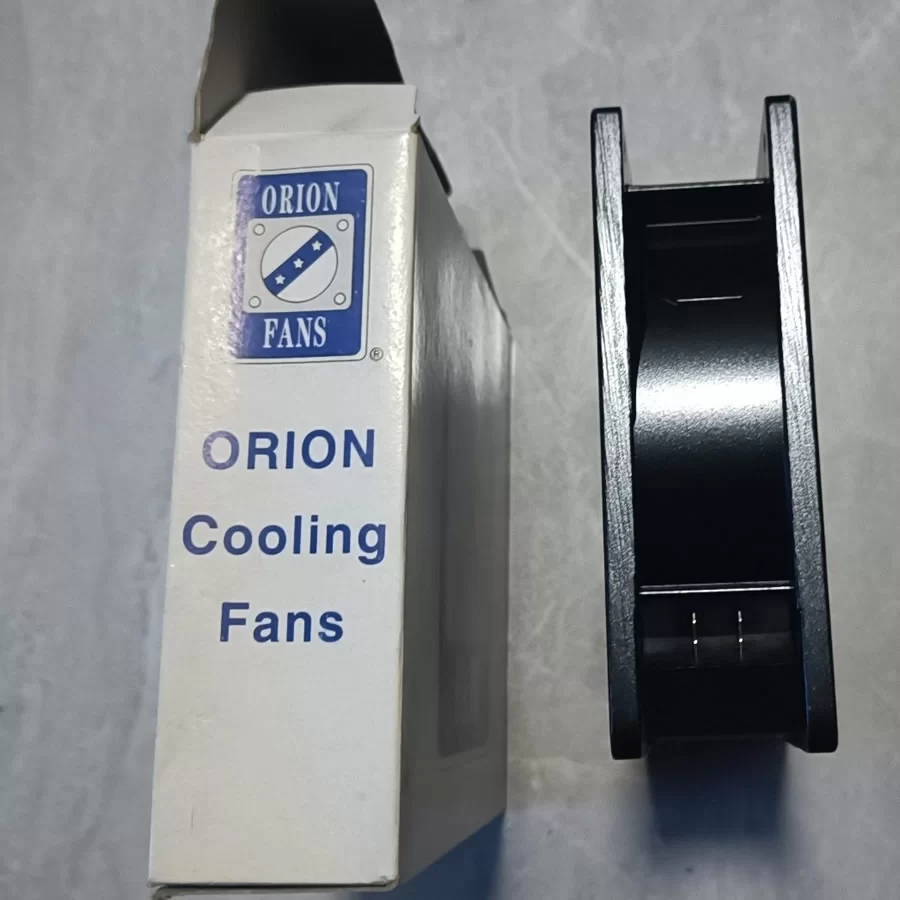

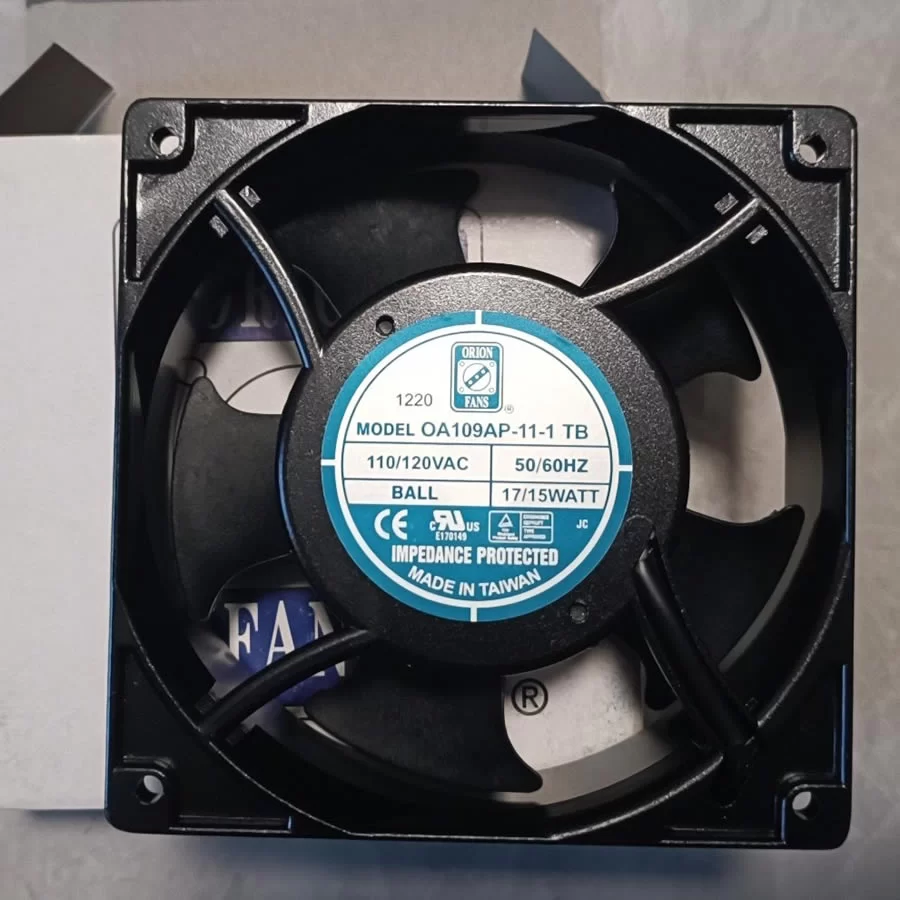

The Orion Fans OA109AP-11-1TB is a robust 115V AC axial cooling fan. Measuring 120mm x 120mm x 38mm, it is engineered for effective cooling in various electronic and industrial applications. Operating at 115V AC (60Hz), it typically consumes 15W of power, drawing approximately 0.17A. This fan delivers an airflow of 110 CFM (186.9 m³/h) at a rotational speed of 3000 RPM, with a noise level of 42 dBA. It features a durable ball bearing system and has a die-cast aluminum frame for enhanced longevity.
Model Number: OA109AP-11-1TB
Manufacturer: Orion Fans
Type: AC Axial Cooling Fan
Dimensions: 120mm x 120mm x 38mm
Rated Voltage: 115 VAC
Operating Voltage Range: 80 VAC to 130 VAC
Frequency: 50/60 Hz
Rated Current (at 60Hz): 0.17A (based on 15W / 115V)
Rated Power (at 60Hz): 15W
Speed (at 60Hz): 3000 RPM
Airflow (at 60Hz): 110 CFM (186.9 m³/h)
Static Pressure (at 60Hz): 0.28 inch-H2O (69.7 Pa)
Noise Level (at 60Hz): 42 dBA
Connector: 2 Terminals (Quick Connect)
Bearing Type: Ball Bearing
Frame Material: Die-Cast Aluminum
Impeller Material: Thermoplastic (PBT, UL94 V-0)
Operating Temperature: -20°C to +75°C
Weight: 544.3 g (1.2 lbs)
Life Expectancy: 70,000 Hours (L10 at 40°C)
Features: AC Shaded Pole Motor, Impedance Protected
Approvals/Certifications: CE, cURus (UL/CSA recognized), TUV
