Description

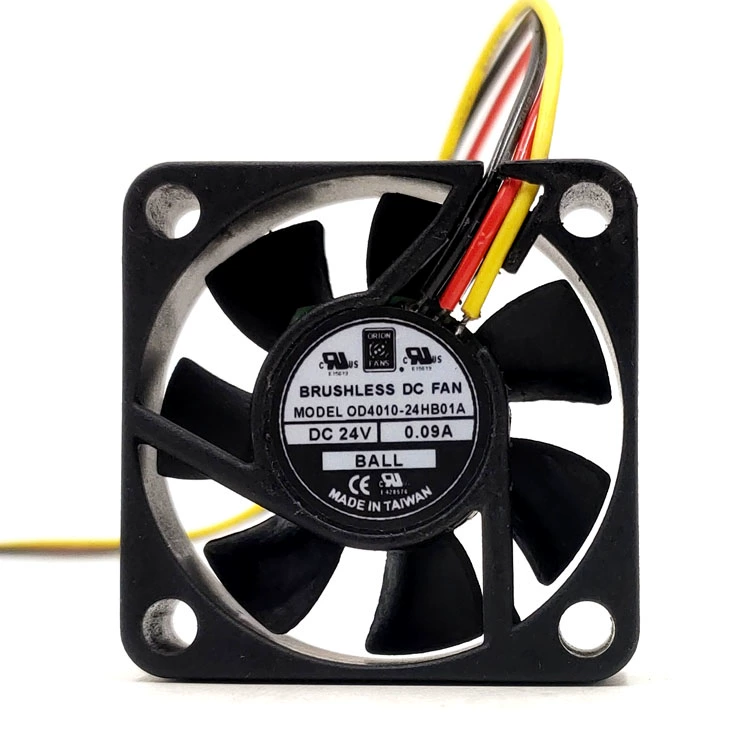

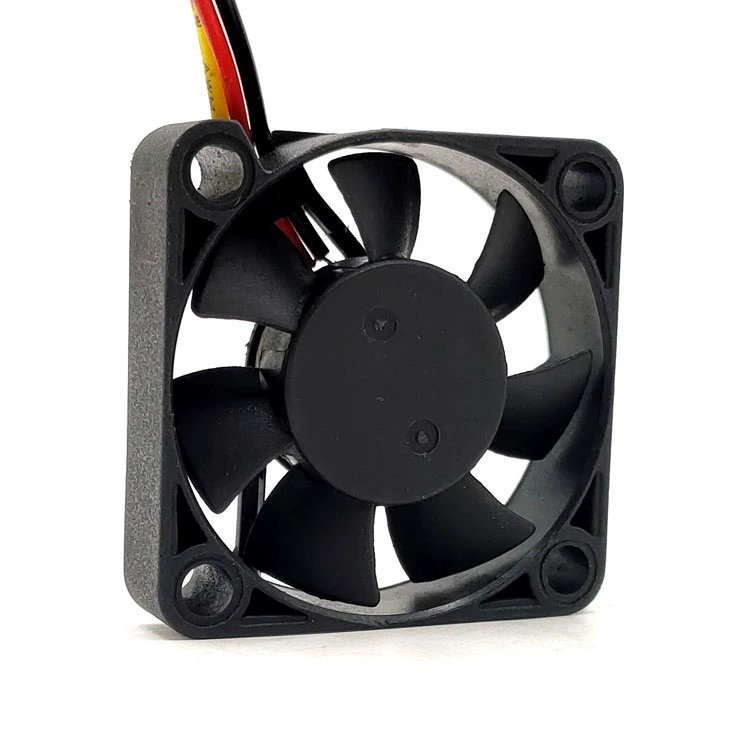

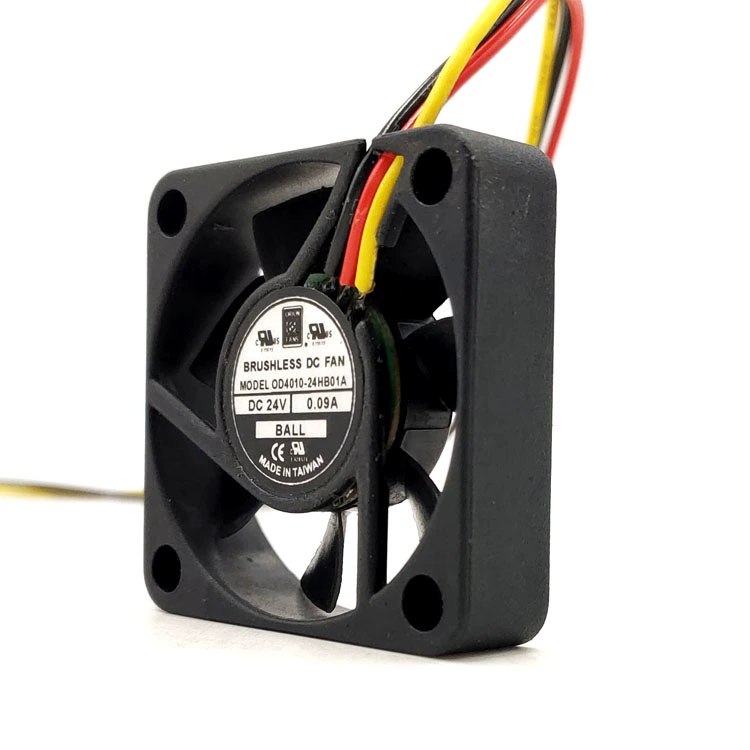

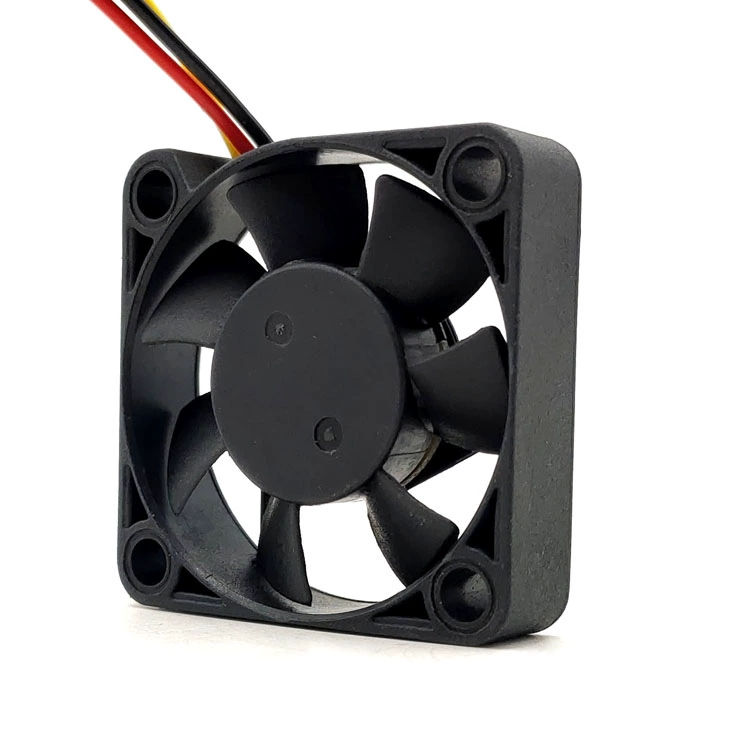

Original ORION FANS OD4010-24HB01A 24V 0.09A 4010 3-wire cooling fan
Model Number: OD4010-24HB01A
Manufacturer: Orion Fans
Series: OD4010 Series
Fan Type: DC Brushless Axial Fan (Tubeaxial)
Dimensions (L x H x W): 40 mm x 40 mm x 10 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 21.6 VDC to 26.4 VDC
Rated Current: 0.06 A (Some sources may list 0.09A, but 0.06A is directly from Orion’s detailed datasheet for this exact model.)
Input Power: 1.4 W (Calculated from 24V * 0.06A)
Wiring: 3 Lead Wires (Positive, Negative, and Open Collector Tachometer Output)
Rotational Speed (RPM): 8000 RPM (Some sources list 6000 RPM, but 8000 RPM is more precise for the ‘HB’ – High Blower – designation)
Maximum Airflow:
9.2 CFM (Cubic Feet per Minute)
0.258 m³/min (Cubic Meters per Minute)
Maximum Static Pressure: 0.20 in H2O (Inches of Water) / 33.4 Pa (Pascals)
Noise Level: 33.4 dB(A) (Some sources may list 25 dB(A) or 34 dB(A), but 33.4 dB(A) is found on the datasheet)
Bearing Type: Ball Bearing (Dual Ball Bearing)
Frame Material: PBT, UL94 V-0 plastic
Impeller (Blade) Material: PBT, UL94 V-0 plastic
Sensor Type: Open Collector Tachometer Output (Provides 2 pulses per revolution)
Protection Functions: Auto Restart, Auto Cutoff (Electronically Protected), Polarity Protected (Reverse Polarity Protection)
Operating Temperature Range: -20°C to +65°C
Storage Temperature Range: -20°C to +75°C
Expected Life (L10): 60,000 hours (at 45°C) or 70,000 hours (from some distributor listings).
Safety Approvals: Typically includes UL, cUL (common for Orion Fans)
Mass: 0.044 lbs (approx. 20g)
The Orion Fans OD4010-24HB01A is a compact, high-performance 40x40x10mm DC axial fan designed for cooling electronic components in constrained spaces. Operating on 24VDC with a low current draw of 0.06A and 1.4W power, it delivers a notable 9.2 CFM of airflow and 0.20 in H2O static pressure at 8000 RPM, with a moderate noise level of 33.4 dB(A). Featuring durable dual ball bearings, flame-retardant plastic construction, and an open collector tachometer output for speed monitoring, this fan also incorporates auto restart, auto cutoff, and reverse polarity protection, ensuring a long and reliable lifespan of 60,000 hours at 45°C.
