Description

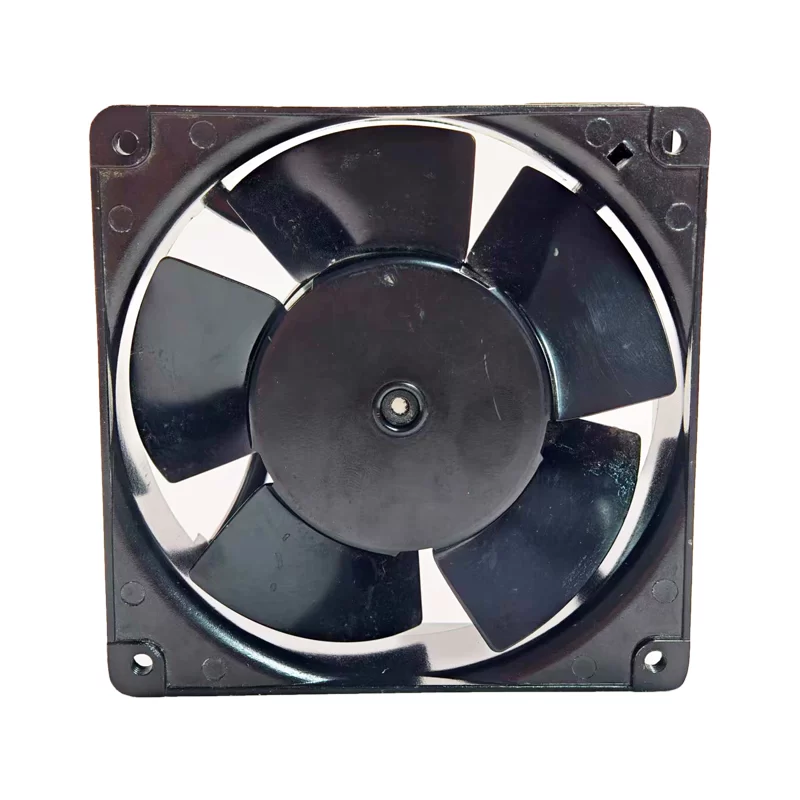

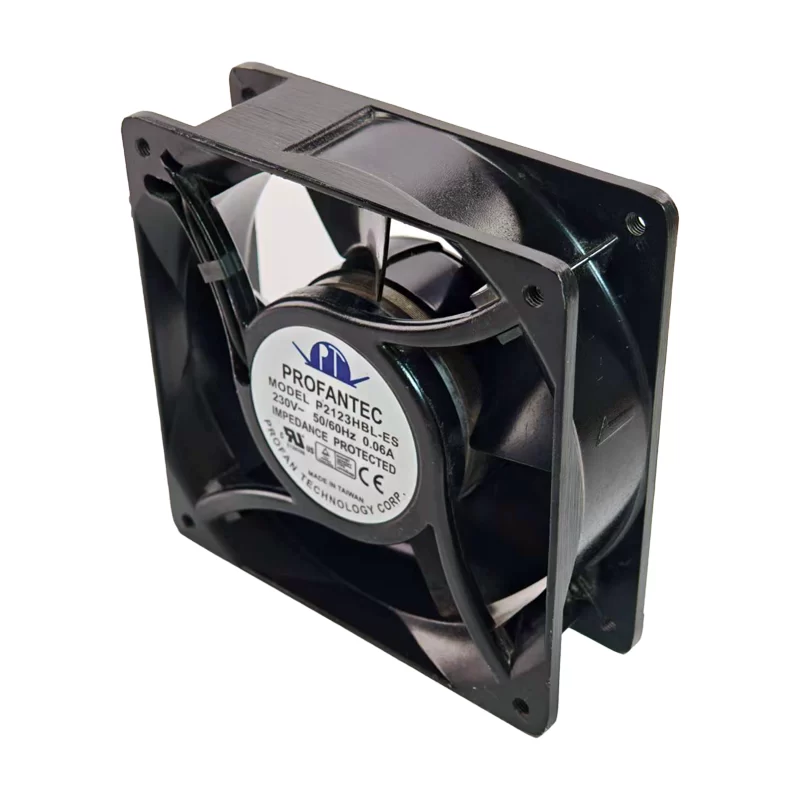

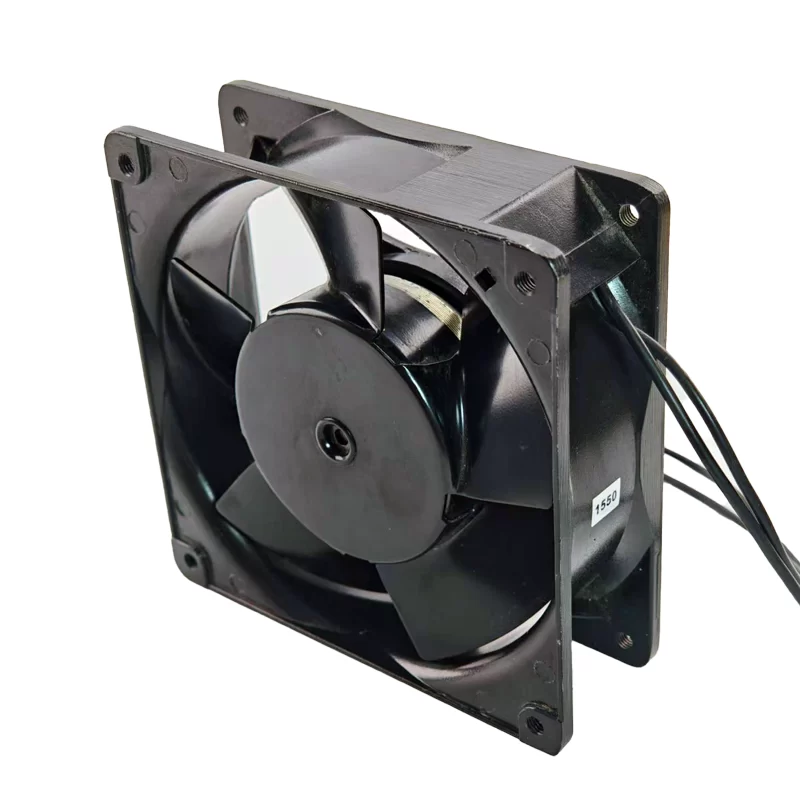

The PROFANTEC P2123HBL-ES is an AC axial fan measuring 120mm x 120mm x 38mm. It operates on a nominal voltage of 230V AC at both 50 Hz and 60 Hz frequencies, with a current draw of 0.06A. This fan is designed to provide an airflow of 153 m³/h. While typically used for general cooling in electronic and industrial setups, further detailed performance metrics such as power consumption, RPM, static pressure, or noise level are not readily available in the provided specifications.
P2123HBL-ES Fan Parameters
Model: P2123HBL-ES
Manufacturer: PROFANTEC
Type: AC Axial Fan
Dimensions: 120 mm x 120 mm x 38 mm
Nominal Voltage: 230 V AC
Frequency: 50 Hz / 60 Hz
Rated Current: 0.06 A
Operating Voltage Range: 150 – 250 V AC
Airflow: 153 m³/h
Termination: 2-Wire Leads
Application: General cooling
