Description

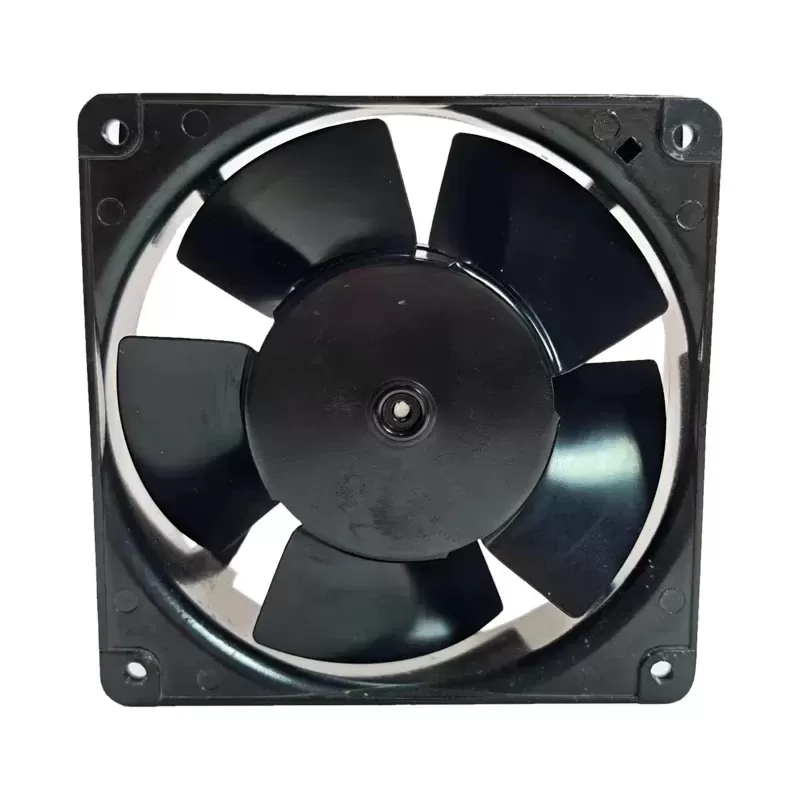

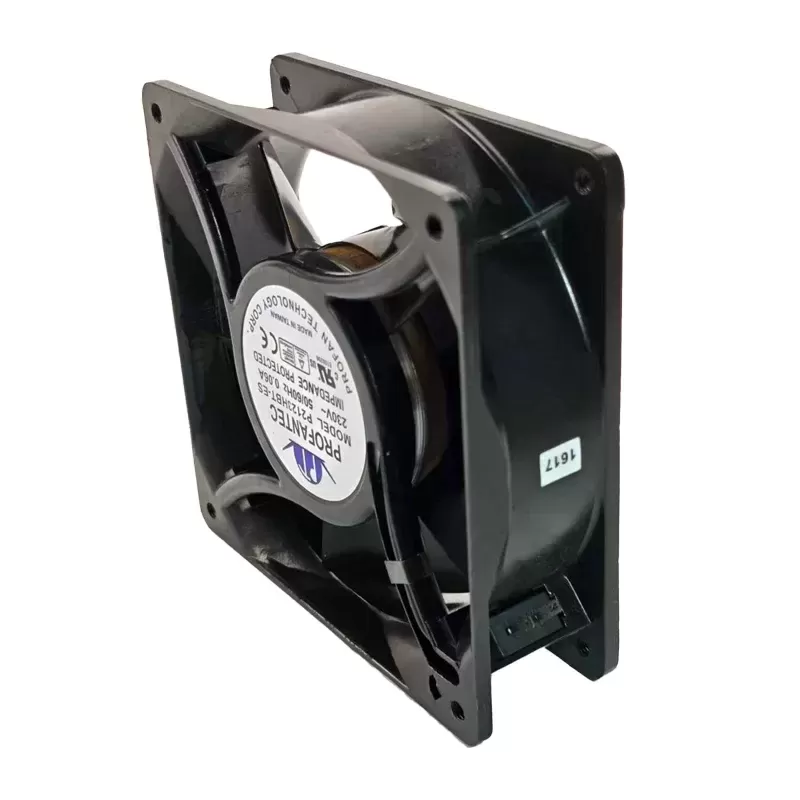

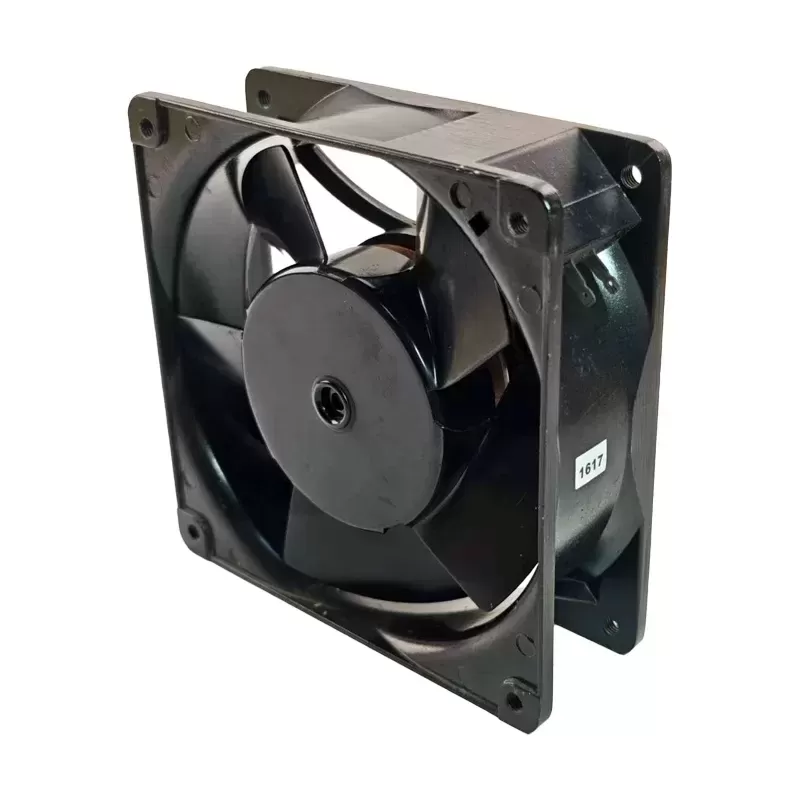

The PROFANTEC P2123HBT-ES is an AC axial fan measuring 120x120x38mm. It operates on 230 VAC at both 50 Hz and 60 Hz frequencies, drawing 0.06 A of current. Power consumption is 14 W at 50 Hz and 15 W at 60 Hz. This fan achieves a speed ranging from 2600 to 3100 RPM and provides an airflow between 153 to 187 m³/h (equivalent to 90 to 110 CFM), with a noise level of 44 to 48 dB(A). It is equipped with ball bearings for durable operation and features terminal or lead wire termination. Constructed with an aluminum frame and a steel or plastic impeller, it is designed for general purpose ventilation and cooling in various electronic and industrial applications.
P2123HBT-ES Fan Parameters
Model: P2123HBT-ES
Manufacturer: PROFAN Technology
Brand: PROFANTEC
Type: AC Axial Fan
Dimensions: 120x120x38 mm
Rated Voltage: 230 VAC
Operating Voltage Range: 200 – 250 VAC
Starting Voltage: 150 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 0.06 A
Power Consumption (50Hz / 60Hz): 14 W / 15 W
Speed: 2600 – 3100 RPM
Airflow: 153 – 187 m³/h (90 – 110 CFM)
Static Pressure: 0.33 – 0.38 in H2O
Noise Level: 44 – 48 dB(A)
Bearing Type: Ball Bearing
Termination: Terminal or Lead Wire
Weight: 0.534 kg
Frame Material: Die-cast aluminum
Impeller Material: Steel or Plastic
Operating Temperature: -10°C to +70°C
Motor Protection: Impedance Protected
Direction of Rotation: Counter-clockwise viewed from fan blade
Approval Agency: UL, TUV, CE
Application: General purpose cooling, industrial equipment, control panels, power supplies.
