Description

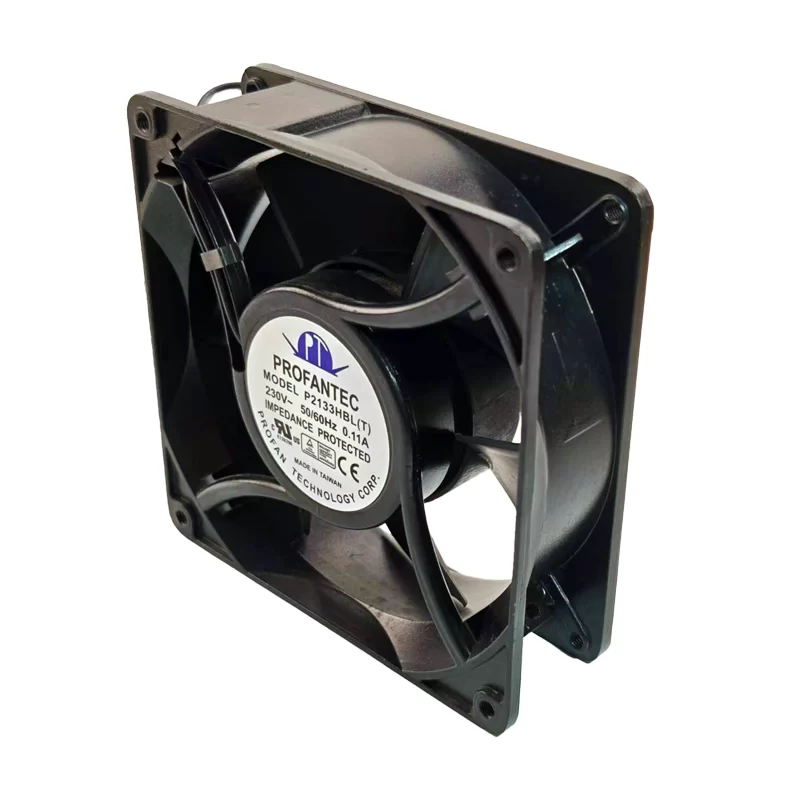

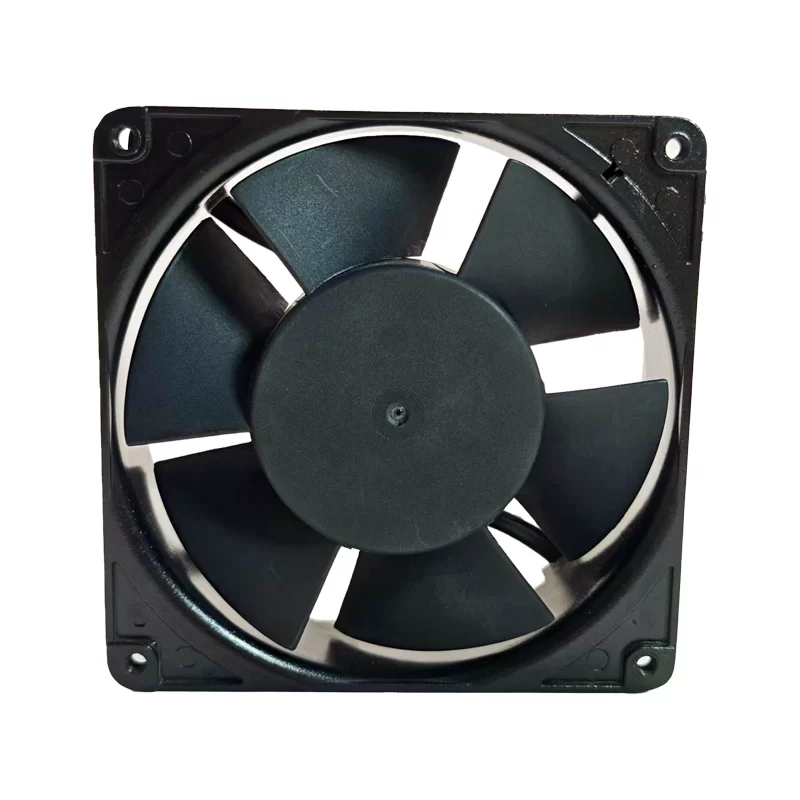

The PROFANTEC P2133HBL(T) is an AC axial fan measuring 127x127x38mm. It operates on 230 VAC at both 50 Hz and 60 Hz frequencies, drawing 0.14 A (at 50 Hz) and 0.12 A (at 60 Hz) of current. Power consumption is 21 W at 50 Hz and 19 W at 60 Hz. This fan achieves a speed ranging from 2600 RPM (at 50 Hz) to 3050 RPM (at 60 Hz) and provides an airflow between 115 CFM (at 50 Hz) and 135 CFM (at 60 Hz), with a noise level of 50 dB(A) (at 50 Hz) to 52 dB(A) (at 60 Hz). It is equipped with ball bearings for durable operation and typically features lead wire termination. Constructed with an aluminum frame and plastic blades, it is designed for high-speed cooling and ventilation in industrial and electronic equipment.
P2133HBL(T) Fan Parameters
Model: P2133HBL(T)
Manufacturer: PROFAN Technology
Brand: PROFANTEC
Type: AC Axial Fan
Dimensions: 127x127x38 mm
Rated Voltage: 230 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 0.14 A (50Hz) / 0.12 A (60Hz)
Power Consumption: 21 W (50Hz) / 19 W (60Hz)
Speed: 2600 RPM (50Hz) / 3050 RPM (60Hz)
Airflow: 115 CFM (50Hz) / 135 CFM (60Hz)
Static Pressure: Not specified
Noise Level: 50 dB(A) (50Hz) / 52 dB(A) (60Hz)
Bearing Type: Ball Bearing
Termination: Lead Wire
Weight: 0.56 kg
Frame Material: Aluminum
Impeller Material: Plastic
Operating Temperature: Not specified
Life Expectancy: Not specified
Motor Protection: Not specified
Direction of Rotation: Not specified
Approval Agency: Not specified
Application: Industrial equipment cooling, electronic device ventilation.
