Description

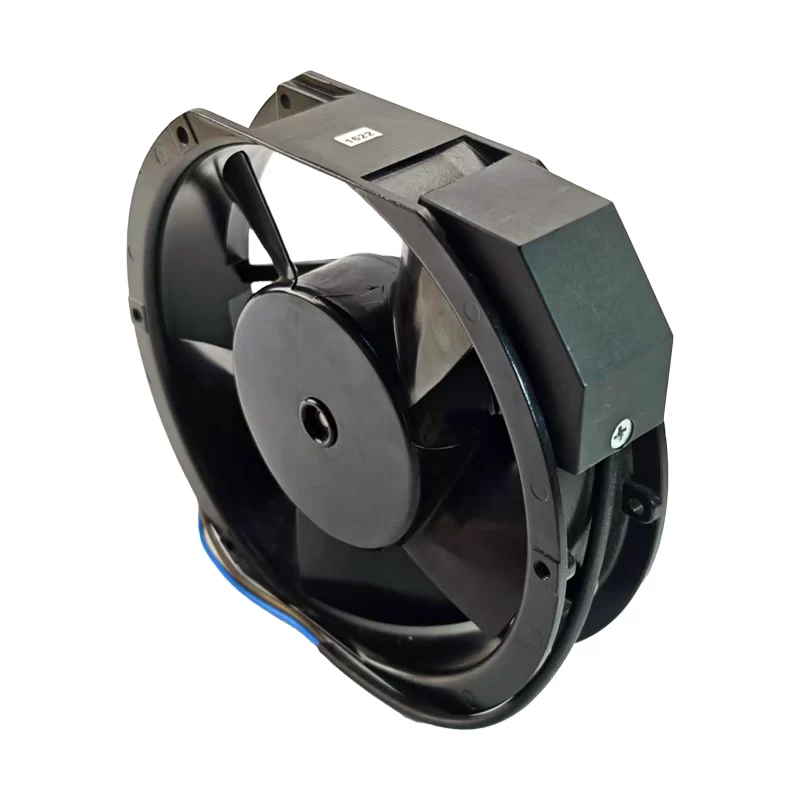

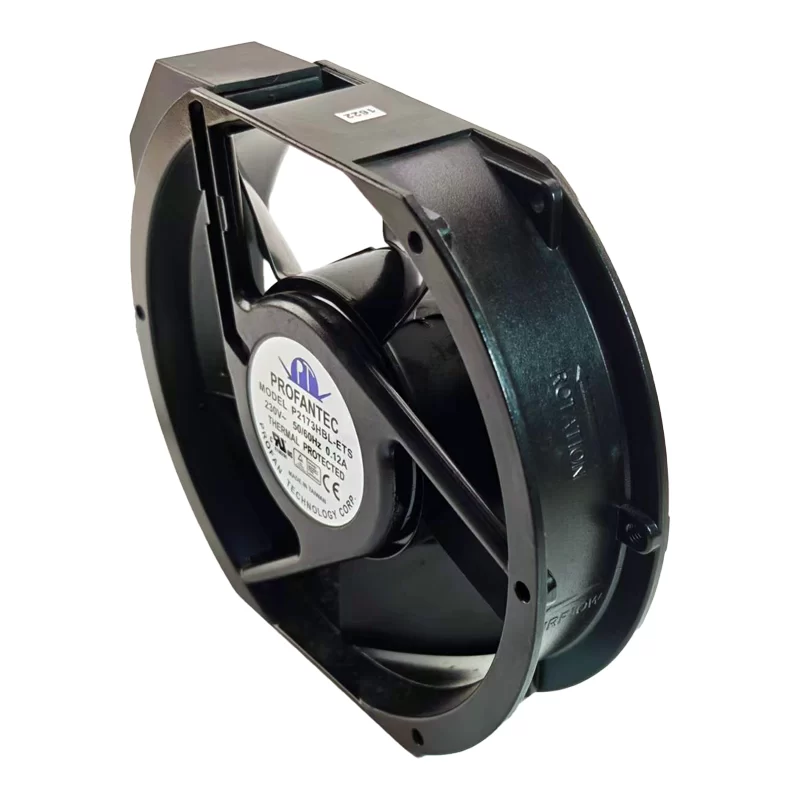

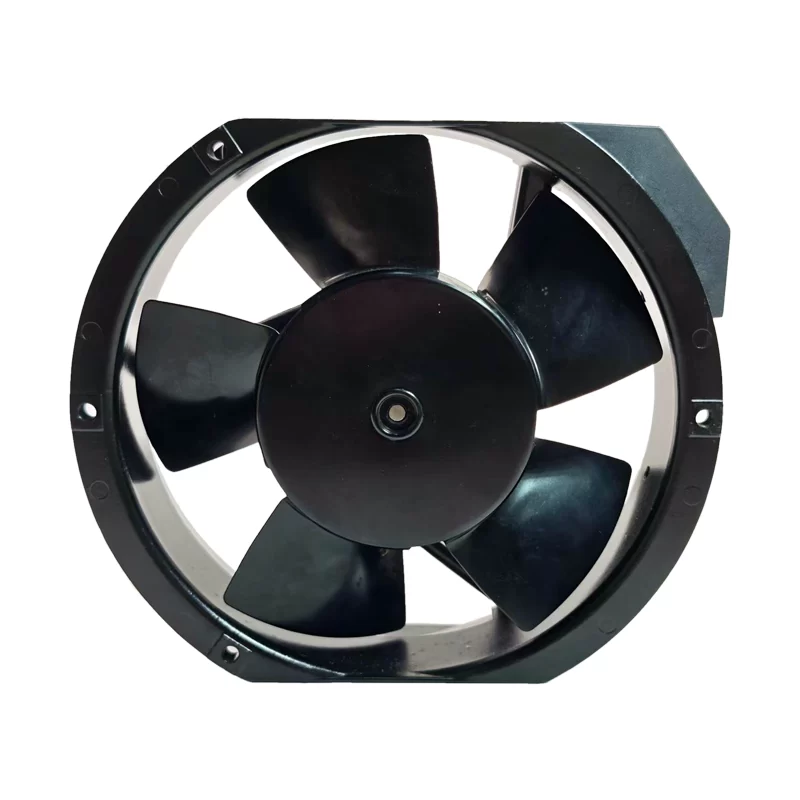

The PROFANTEC P2173HBL-ETS is an AC axial fan measuring 172x150x38mm. It operates on 230 VAC at 50 Hz and 60 Hz frequencies, drawing 0.12 A of current. Power consumption is 32 W at 50 Hz and 35 W at 60 Hz. This fan achieves a speed of 2850 RPM at 50 Hz and 3200 RPM at 60 Hz, providing an airflow of 200 CFM at 50 Hz and 250 CFM at 60 Hz, with a noise level of 55 dB(A) at 50 Hz and 58 dB(A) at 60 Hz. It is equipped with ball bearings for durable operation and features an open-end cable for connection. Constructed with a die-cast aluminum frame and steel impeller, it is designed for efficient cooling and ventilation in various industrial and electronic equipment.
P2173HBL-ETS Fan Parameters
Model: P2173HBL-ETS
Manufacturer: PROFAN Technology
Brand: PROFANTEC
Type: AC Axial Fan
Dimensions: 172x150x38 mm
Rated Voltage: 230 VAC
Operating Voltage Range: 150 – 250 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 0.12 A
Power Consumption (50Hz / 60Hz): 32 W / 35 W
Speed (50Hz / 60Hz): 2850 RPM / 3200 RPM
Airflow (50Hz / 60Hz): 200 CFM / 250 CFM
Static Pressure (50Hz / 60Hz): 0.58 in H2O / 0.62 in H2O
Noise Level (50Hz / 60Hz): 55 dB(A) / 58 dB(A)
Bearing Type: Ball Bearing
Termination: Open end cable (approx. 28 cm length)
Weight: 0.6 kg
Frame Material: Die-cast aluminum
Impeller Material: Steel
Operating Temperature: -10°C to +70°C
Life Expectancy: 20,000 hours
Motor Protection: Impedance Protected
Approval Agency: UL, TUV, CE
Application: Industrial equipment cooling, control panels, power supplies, general electronic cooling.
