Description

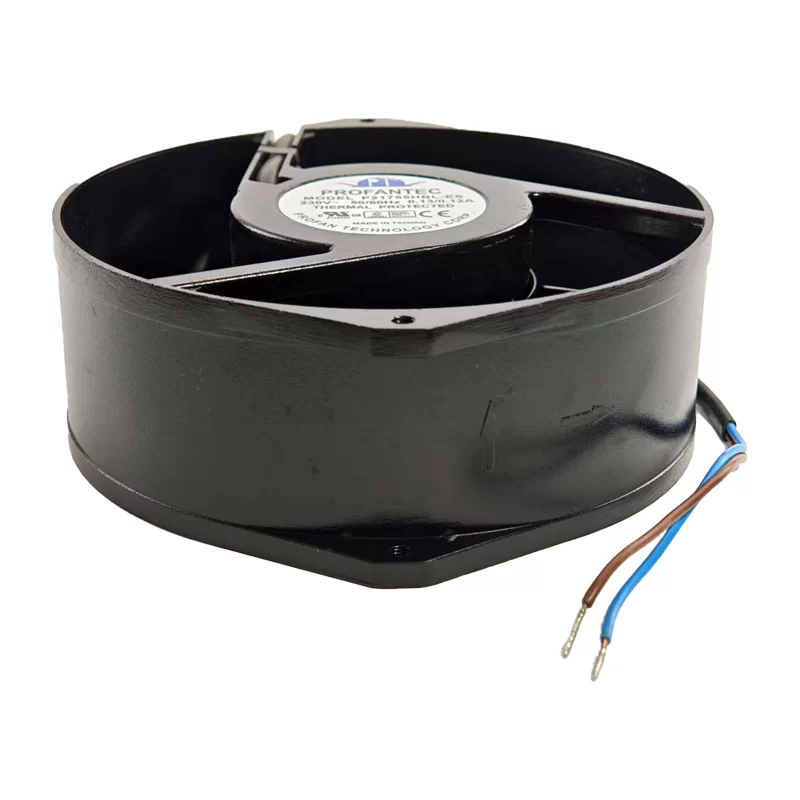

The PROFANTEC P21755HBL-ES is a robust AC axial fan, featuring dimensions of 172mm x 151mm x 55mm. It provides powerful and consistent airflow, making it suitable for a range of demanding industrial and commercial cooling needs. This fan operates on 230 VAC at both 50 Hz and 60 Hz. Key performance metrics include a current consumption of 0.13A (at 50Hz) and 0.12A (at 60Hz), a power consumption of 30W (at 50Hz) and 28W (at 60Hz), and a rotational speed of 2700 RPM (at 50Hz) and 3100 RPM (at 60Hz). It delivers a substantial airflow of 230 CFM (390.7 m³/h) at 50Hz and 265 CFM (450.7 m³/h) at 60Hz, with noise levels of 52 dB(A) and 55 dB(A) respectively. Built with a durable die-cast aluminum frame and a steel impeller, and featuring ball bearings, it offers a long operational lifespan.
P21755HBL-ES Fan Parameters
Model: P21755HBL-ES
Manufacturer: PROFANTEC
Type: AC Axial Fan
Dimensions: 172mm x 151mm x 55mm
Rated Voltage: 230 VAC
Frequency: 50 Hz / 60 Hz
Rated Current (50Hz / 60Hz): 0.13A / 0.12A
Power Consumption (50Hz / 60Hz): 30 W / 28 W
Speed (50Hz / 60Hz): 2700 RPM / 3100 RPM
Airflow (50Hz / 60Hz): 230 CFM / 265 CFM (390.7 m³/h / 450.7 m³/h)
Static Pressure (50Hz / 60Hz): 0.60 inch H2O / 0.78 inch H2O
Noise Level (50Hz / 60Hz): 52 dB(A) / 55 dB(A)
Bearing Type: Ball Bearing
Frame Material: Die-cast Aluminum
Impeller Material: Steel
Termination: Open end cable (or terminals)
Operating Temperature: -10°C to +70°C
Life Expectancy: 20,000 hours
Weight: 984 g
Features: Thermal or Impedance Protected
Application: Industrial machinery, control cabinets, power supplies, UPS systems, telecommunications equipment, HVAC systems.
