Description

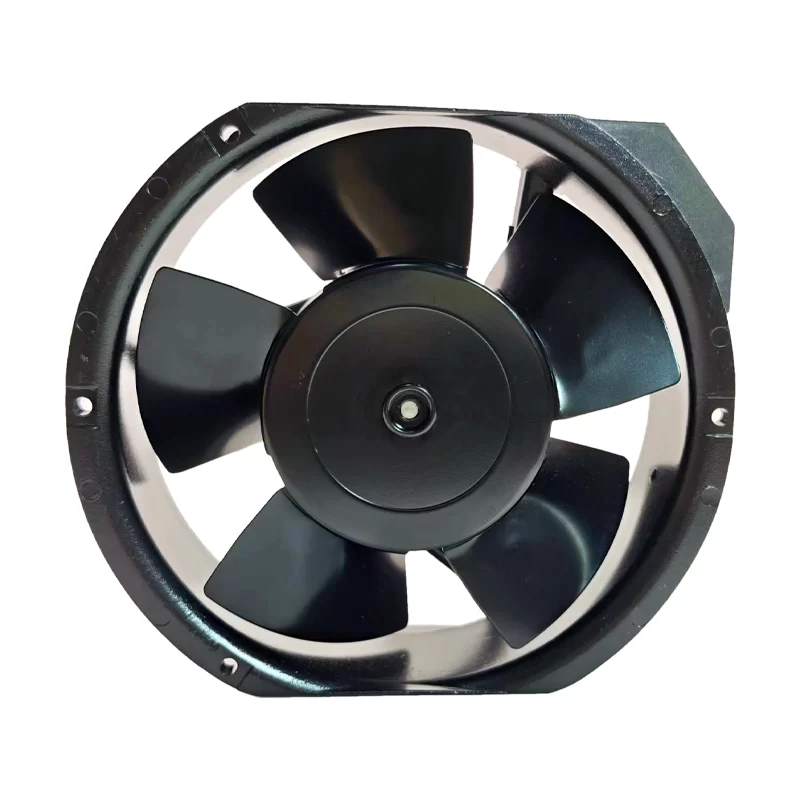

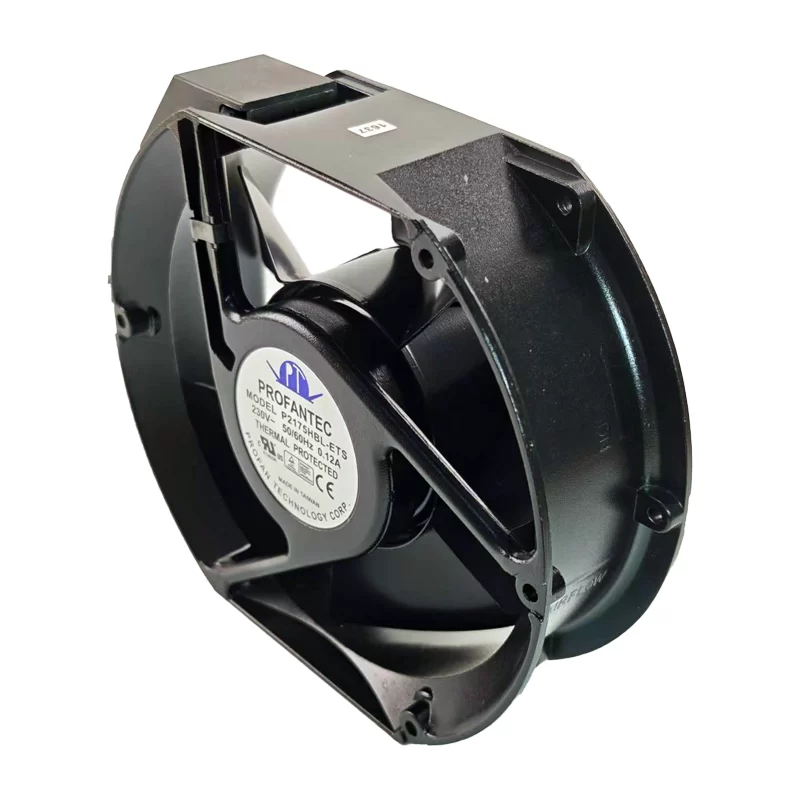

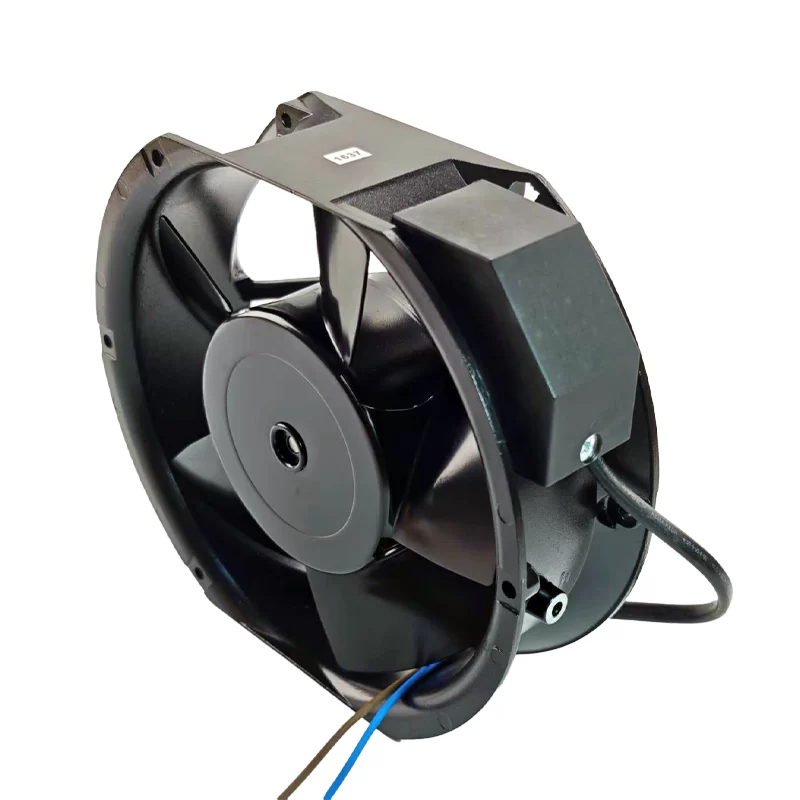

The PROFANTEC P2175HBL-ETS is an AC axial fan measuring 172x150x51mm. It operates on 230 VAC at both 50 Hz and 60 Hz frequencies, drawing 0.12 A of current. Power consumption is 25 W at 50 Hz and 27 W at 60 Hz. This fan achieves a speed of 2800 RPM at 50 Hz and 3300 RPM at 60 Hz, providing an airflow of 202 CFM at 50 Hz and 240 CFM at 60 Hz, with a static pressure of 0.6 in H2O at 50 Hz and 0.73 in H2O at 60 Hz. The noise level ranges from 51 dB(A) at 50 Hz to 58 dB(A) at 60 Hz. It is equipped with ball bearings for durable operation and features 2-wire leads for termination. Constructed with a die-cast aluminum frame and steel impeller, it is designed for efficient high-temperature resistance cooling in various industrial and electronic equipment, including inverters.
P2175HBL-ETS Fan Parameters
Model: P2175HBL-ETS
Manufacturer: PROFAN Technology
Brand: PROFANTEC
Type: AC Axial Fan
Dimensions: 172x150x51 mm
Rated Voltage: 230 VAC
Operating Voltage Range: 150 – 250 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 0.12 A
Power Consumption (50Hz / 60Hz): 25 W / 27 W
Speed (50Hz / 60Hz): 2800 RPM / 3300 RPM
Airflow (50Hz / 60Hz): 202 CFM / 240 CFM
Static Pressure (50Hz / 60Hz): 0.6 in H2O / 0.73 in H2O
Noise Level (50Hz / 60Hz): 51 dB(A) / 58 dB(A)
Bearing Type: Ball Bearing
Termination: 2-wire leads
Weight: 0.908 kg
Frame Material: Die-cast aluminum
Impeller Material: Steel
Operating Temperature: -10°C to +70°C
Life Expectancy: 20,000 hours
Motor Protection: Thermal or Impedance Protected
Approval Agency: UL, TUV
Application: Industrial equipment cooling, control panels, power supplies, inverter applications, general electronic cooling.
