Description

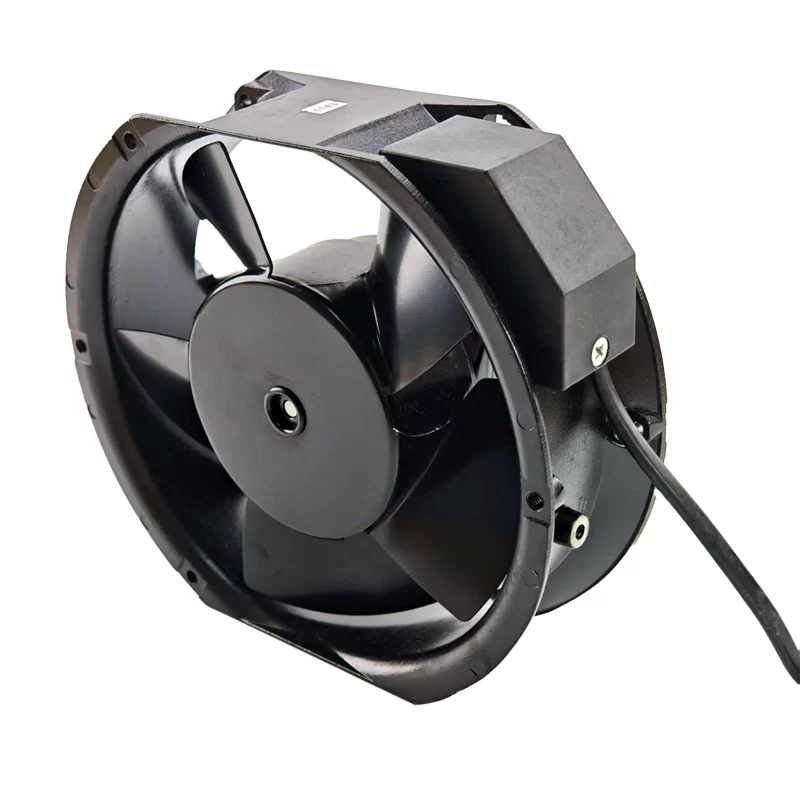

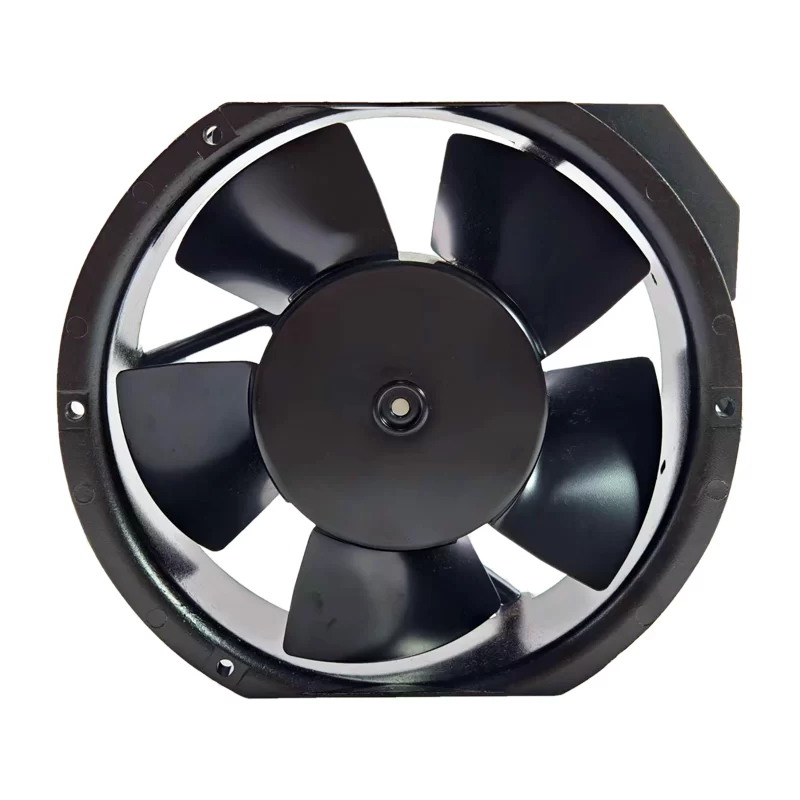

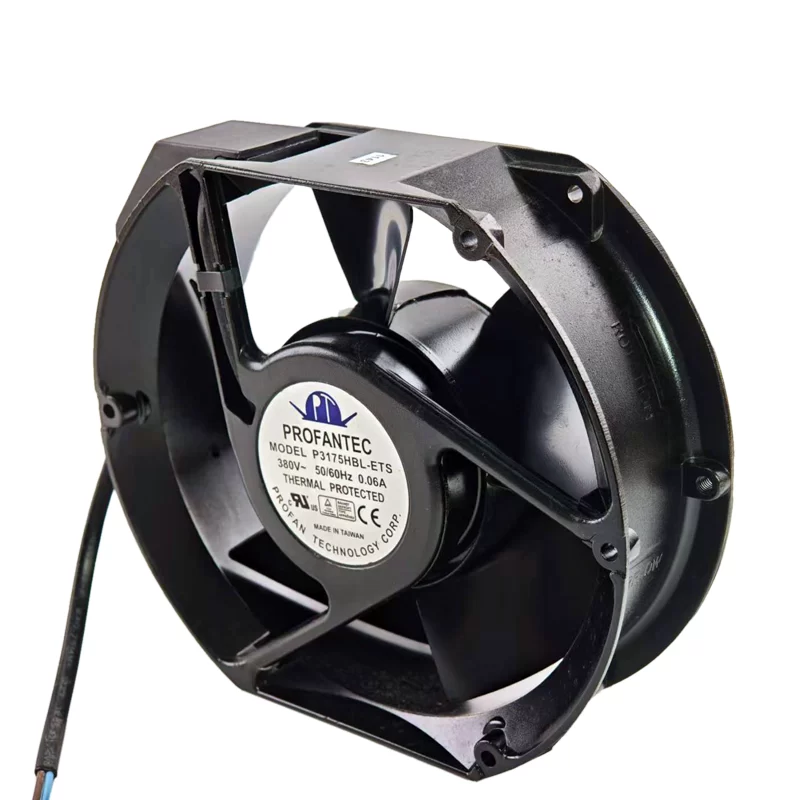

The PROFANTEC P3175HBL-ETS is a robust AC axial fan, measuring 172mm x 150mm x 51mm. This model is designed for high-voltage industrial applications, providing efficient cooling and ventilation in demanding environments. It operates on 380 VAC at both 50 Hz and 60 Hz. Key performance metrics include a low current consumption of 0.06A and a power consumption of 27W. It achieves speeds of 2700 RPM (at 50Hz) and 3200 RPM (at 60Hz), delivering an airflow of 202 CFM (343.4 m³/h) and 240 CFM (407.8 m³/h) respectively. The fan operates with a noise level of 51 dB(A) at 50Hz and 58 dB(A) at 60Hz. It features a durable aluminum alloy frame and a steel impeller, equipped with ball bearings for smooth operation and an extended lifespan, and connects via terminals.
P3175HBL-ETS Fan Parameters
Model: P3175HBL-ETS
Manufacturer: PROFANTEC
Type: AC Axial Fan
Dimensions: 172mm x 150mm x 51mm
Rated Voltage: 380 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 0.06A
Power Consumption (50Hz / 60Hz): 27 W / 27 W
Speed (50Hz / 60Hz): 2700 RPM / 3200 RPM
Airflow (50Hz / 60Hz): 202 CFM / 240 CFM (343.4 m³/h / 407.8 m³/h)
Static Pressure (50Hz / 60Hz): 0.60 inch H2O / 0.68 inch H2O
Noise Level (50Hz / 60Hz): 51 dB(A) / 58 dB(A)
Bearing Type: Ball Bearing
Frame Material: Die-cast Aluminum
Impeller Material: Steel
Termination: Terminals
Operating Temperature: -10°C to +70°C
Life Expectancy: 20,000 hours
Weight: 860 g
Features: Thermal or Impedance Protected
Application: Industrial machinery, high-voltage control panels, power distribution systems, factory ventilation, automation equipment.
