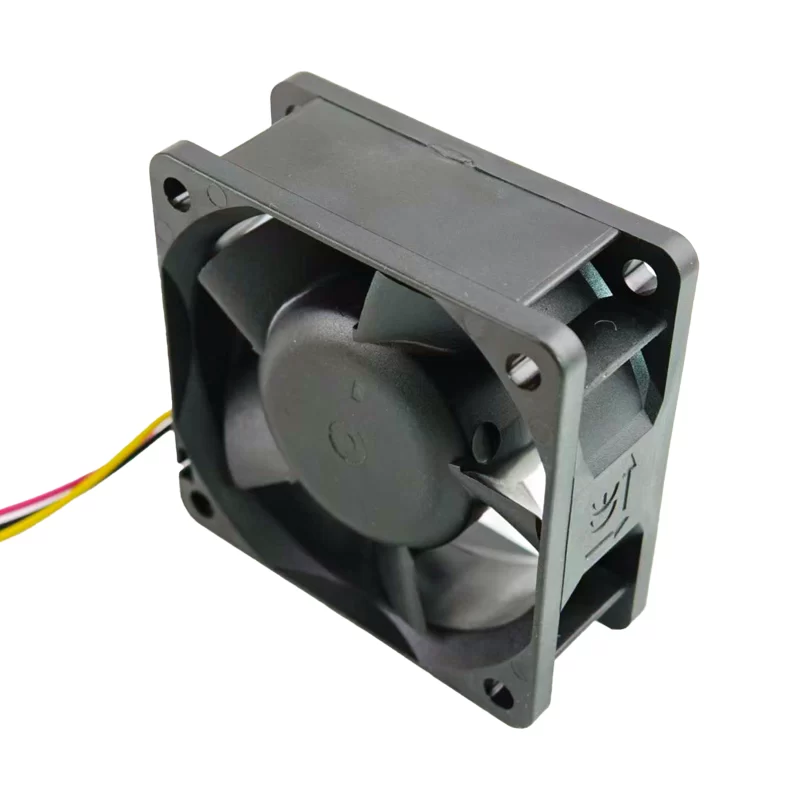

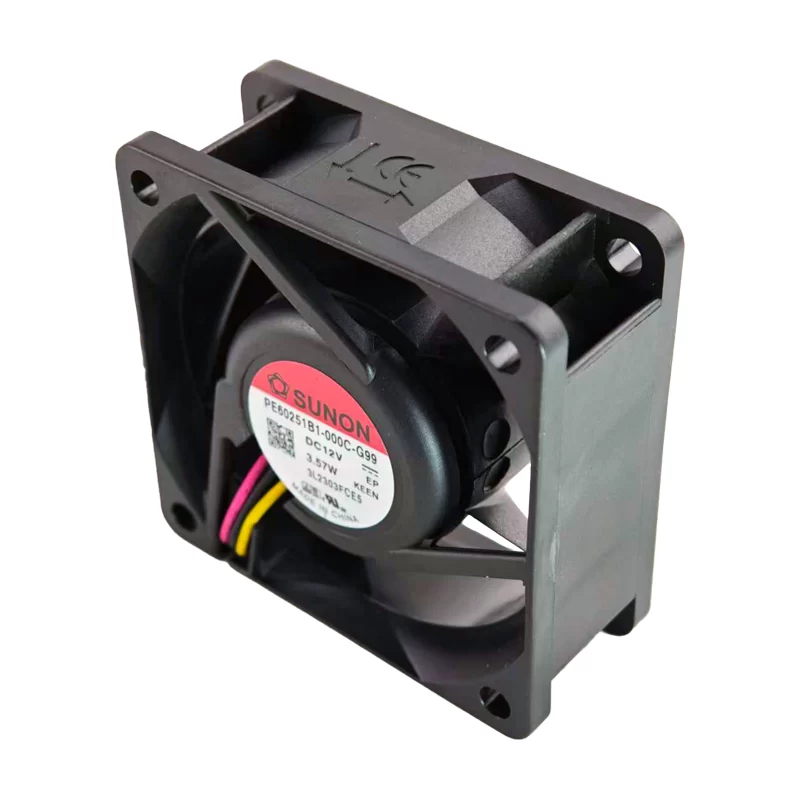

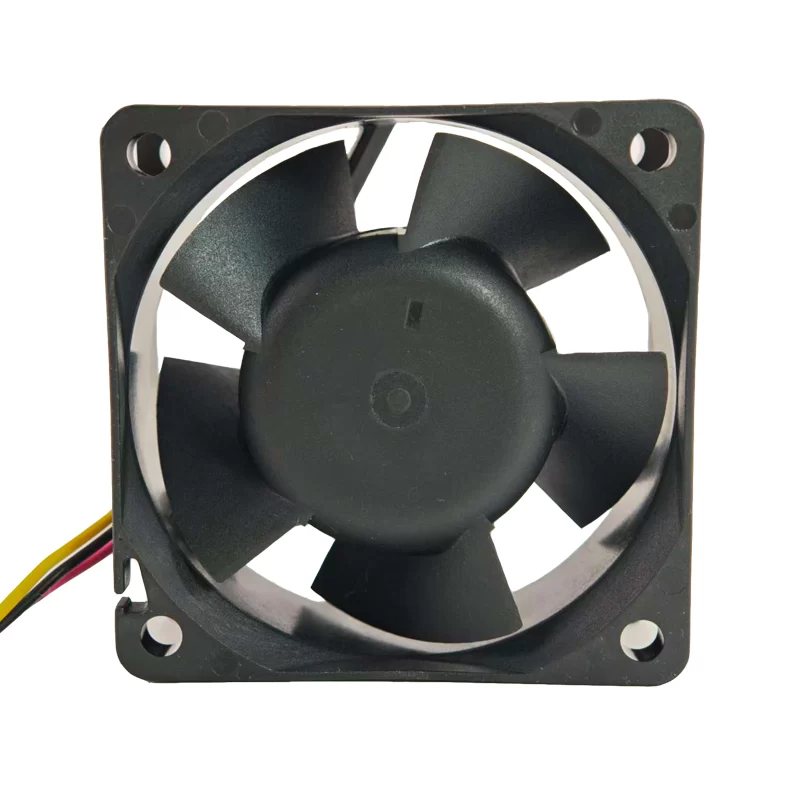

PE60251B1-000C-G99 Sunon 12V 3.57W 60mm 6025 DC Axial Fan

Description

The Sunon PE60251B1-000C-G99 is a high-performance 12V DC Axial Fan with dimensions of 60 x 60 x 25 mm, specifically engineered for efficient thermal management in server, telecommunications, and industrial computing applications. Operating at a nominal 12 VDC, this specialized variant runs at a rated speed of 6900 RPM, delivering an airflow of 36 CFM (61.2 m3/h) with a power consumption of 3.57 W. The fan features a high-efficiency 5-blade impeller and a 3-wire interface providing Tacho signal feedback for precise system monitoring. Utilizing a robust dual ball bearing system and glass-fiber reinforced PBT construction, the PE60251B1-000C-G99 provides a balanced profile of 0.54 inAq (134.5 Pa) static pressure and reliable 24/7 operation, making it an ideal solution for 2U chassis and compact electronic enclosures where structural durability is essential.

PE60251B1-000C-G99 Fan Parameters
Manufacturer: Sunon
Model Number: PE60251B1-000C-G99
Motor Design: Brushless DC Motor
Type: DC Axial Fan
Nominal Voltage: 12 VDC
Voltage Range: 6.0 – 13.8 VDC
Dimensions: 60 x 60 x 25 mm
Impeller Size: 60 mm
Number of Blades: 5
Mass: 71 g

[Electrical Data]
Nominal Speed: 6900 RPM (±10%)
Power Consumption: 3.57 W
Current Draw: 0.30 A
Starting Voltage: 6.0 VDC
Termination: 3 Lead wires
Lead Wire Length: 300 mm ± 10 mm
Motor Bearing: Dual Ball Bearing
Signal Output: Tacho signal (F-Signal)
Motor Protection: Polarity protection and locked rotor auto-restart

[Performance & Acoustics]
Max. Air Flow: 61.2 m3/h (36 CFM)
Max. Static Pressure: 134.5 Pa (0.54 inAq)
Sound Pressure Level: 44 dB(A)
Direction of Rotation: Counter-clockwise (looking at rotor)
Airflow Direction: Exhaust over struts

[Materials & Construction]
Housing Material: Glass-fiber reinforced plastic (PBT, UL 94V-0)
Impeller Material: Glass-fiber reinforced plastic (PBT, UL 94V-0)
Mounting Position: Any
Frame Type: Ribbed

[Reliability & Protection]
Service Life (L10 at 40 °C): 70000 h
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Insulation Resistance: 10M Ω min at 500 VDC
Dielectric Strength: 5 mA max at 500 VAC 50/60 Hz for 1 minute
Approval: UL, CUL, TUV, CE

Application
The Sunon PE60251B1-000C-G99 is specifically engineered for high-density cooling in mission-critical 12V environments where consistent airflow is required to maintain the stability of 2U rackmount servers, network switches, and industrial power supply units, utilizing its 6900 RPM rotational speed and 5-blade impeller design to provide efficient heat extraction while the 3-wire Tacho signal interface allows for real-time monitoring of fan health to ensure 24/7 reliability in enterprise-grade hardware where preventing thermal throttling is essential for maintaining system performance.
