Description

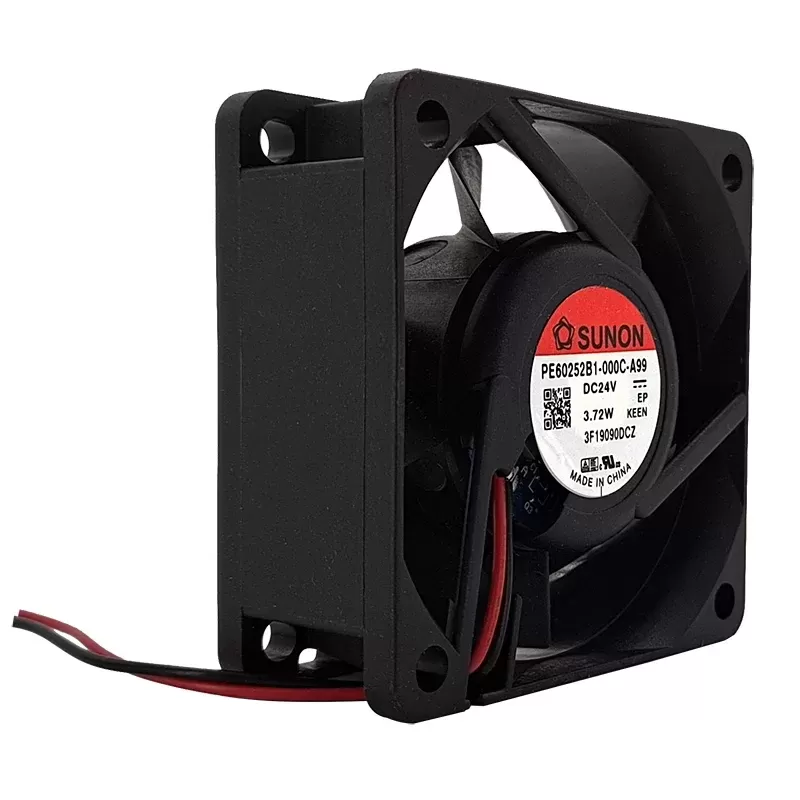

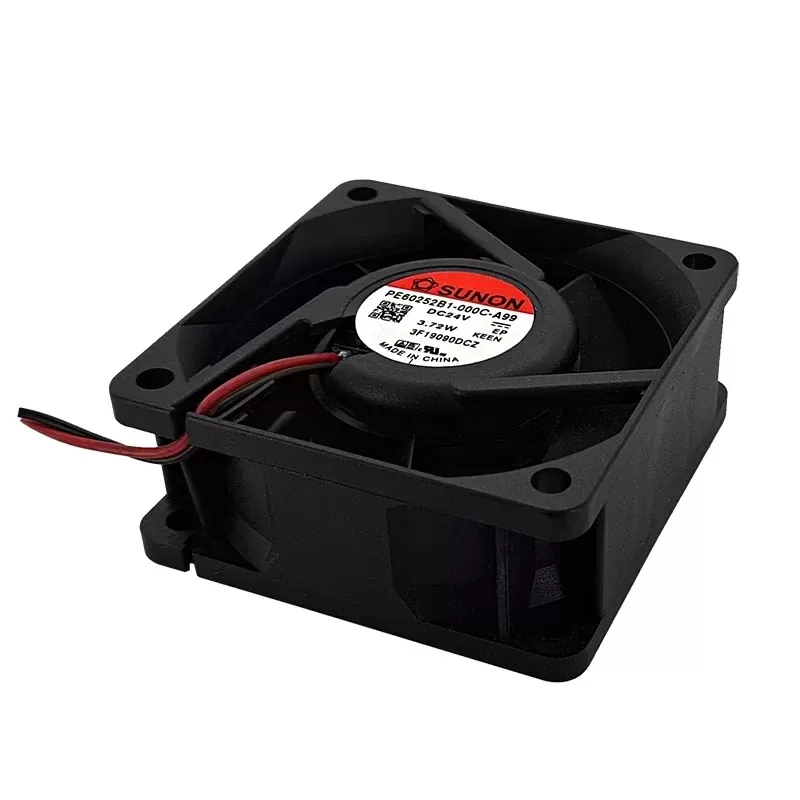

The SUNON PE60252B1-000C-A99 is a compact DC blower measuring 60x60x25mm, designed for efficient spot cooling or directed airflow. It operates on 12 VDC, drawing 310 mA of current, with a power consumption of 3.72 W. This blower achieves a high speed of 6900 RPM, providing a substantial airflow of 36 CFM. Its noise level is 44 dB(A). It features a Vapo bearing system for reliable performance and connects via 2 wire leads. The blower is constructed with a thermoplastic housing and impeller, ensuring durability. With auto-restart and locked rotor protection, it is suitable for various electronic applications where concentrated airflow and efficient cooling are essential.
PE60252B1-000C-A99 Fan Parameters
Model: PE60252B1-000C-A99
Manufacturer: SUNON
Type: DC Blower
Dimensions: 60x60x25 mm
Rated Voltage: 12 VDC
Nominal Voltage Range: 4.5 to 13.8 VDC
Rated Current: 310 mA
Power Consumption: 3.72 W
Speed: 6900 RPM
Airflow: 36 CFM
Static Pressure: 0.52 inH2O (129.5 Pa)
Noise Level: 44 dB(A)
Bearing Type: Vapo Bearing (MagLev technology)
Termination: 2 Wire Leads
Housing Material: Thermoplastic (PBT)
Impeller Material: Thermoplastic (PBT)
Operating Temperature: -20 to 70°C
Expected Life L10 at 40°C: 60000 h
Motor Protection: Auto Restart, Locked Rotor Protected
Application: Spot cooling, electronic enclosures, general cooling.
Weight: 45 g
