Description

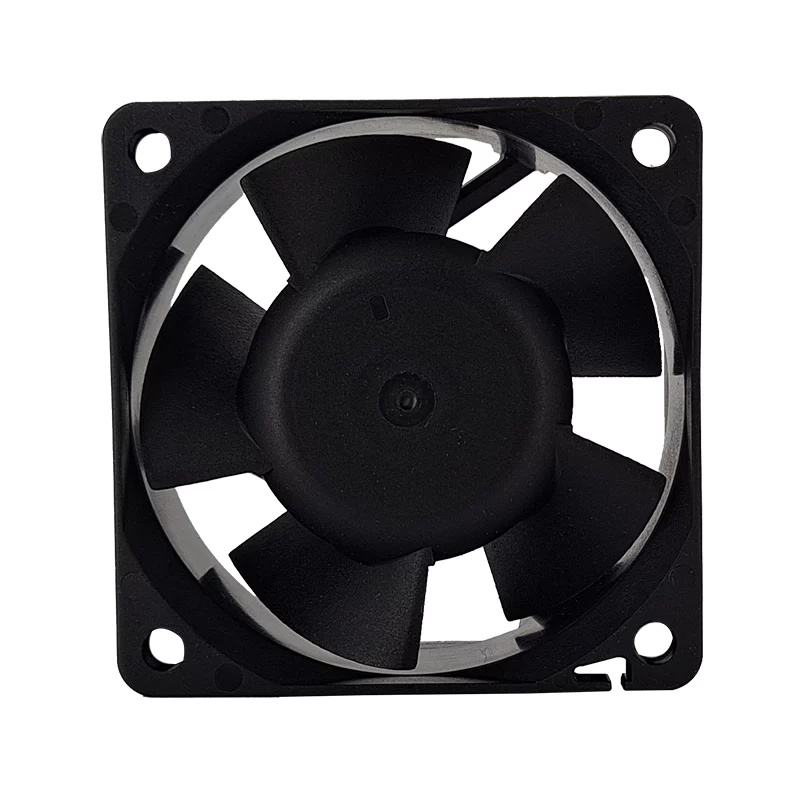

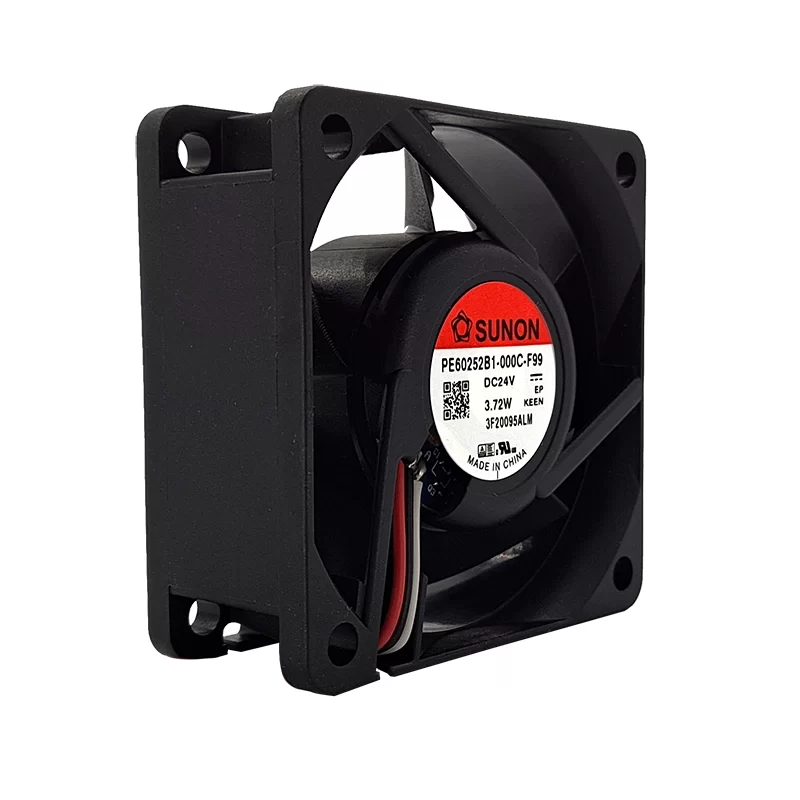

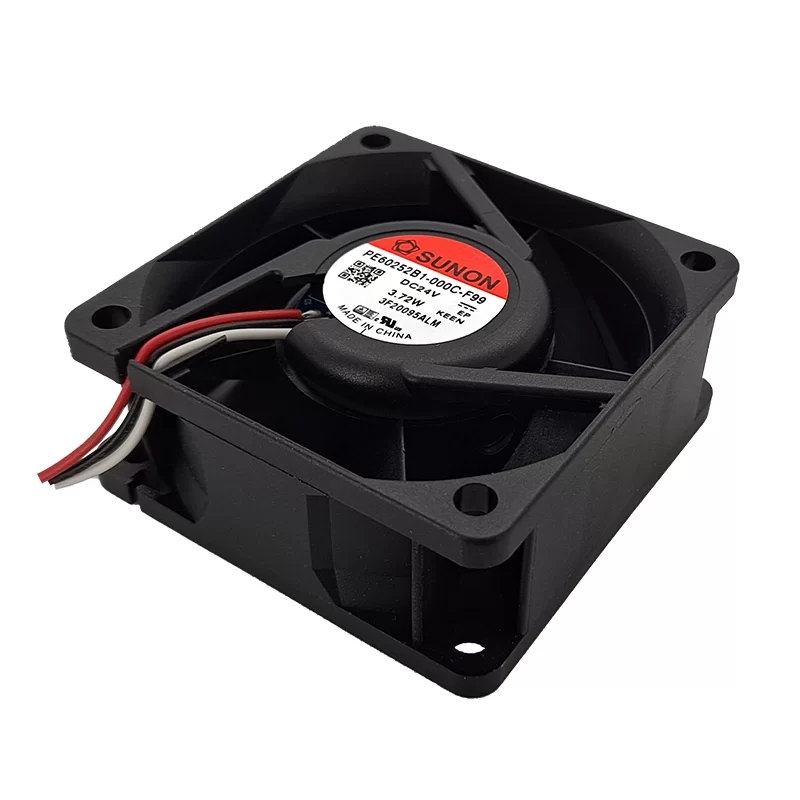

The SUNON PE60252B1-000C-F99 is a DC axial fan measuring 60x60x25mm. It operates on 24 VDC, drawing 155 mA of current, with a power consumption of 3.72 W. This fan achieves a speed of 6900 RPM, providing an airflow of 36 CFM (approximately 61.16 m³/h). Its noise level is 44 dB(A). It features a reliable ball bearing system for extended life. It connects via 2 wire leads. The frame and impeller materials are thermoplastic (PBT) with a UL94V-0 flammability rating. The fan also includes an auto-restart function for motor protection. It is commonly used in various electronic equipment, power supplies, and general cooling applications requiring efficient and durable airflow.
PE60252B1-000C-F99 Fan Parameters
Model: PE60252B1-000C-F99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 60x60x25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 10 to 27.6 VDC
Rated Current: 155 mA
Current and Power Consumption Tolerance: ±15%
Power Consumption: 3.72 W
Speed: 6900 RPM
Speed Tolerance: ±10%
Airflow: 36 CFM (61.16 m³/h)
Static Pressure: 0.28 inH2O (69.7 Pa)
Noise Level: 44 dB(A)
Bearing Type: Ball Bearing
Termination: 2 Wire Leads (typically 300mm length)
Frame Material: Thermoplastic PBT
Impeller Material: Thermoplastic PBT
Flammability Rating: UL94V-0
Insulation Class: A
Insulation Resistance: 10 MΩ minimum (at 500 VDC)
Dielectric Strength: 500 VAC for 1 minute
Motor Design: 2 phases, 4-poles Brushless DC motor
Operating Temperature: -10 to 70°C
Storage Temperature: -40 to 70°C
Expected Life: 70,000 hours (at 40°C)
Motor Protection: Auto Restart
Weight: 75 g
Application: Electronic equipment, power supplies, general cooling.
