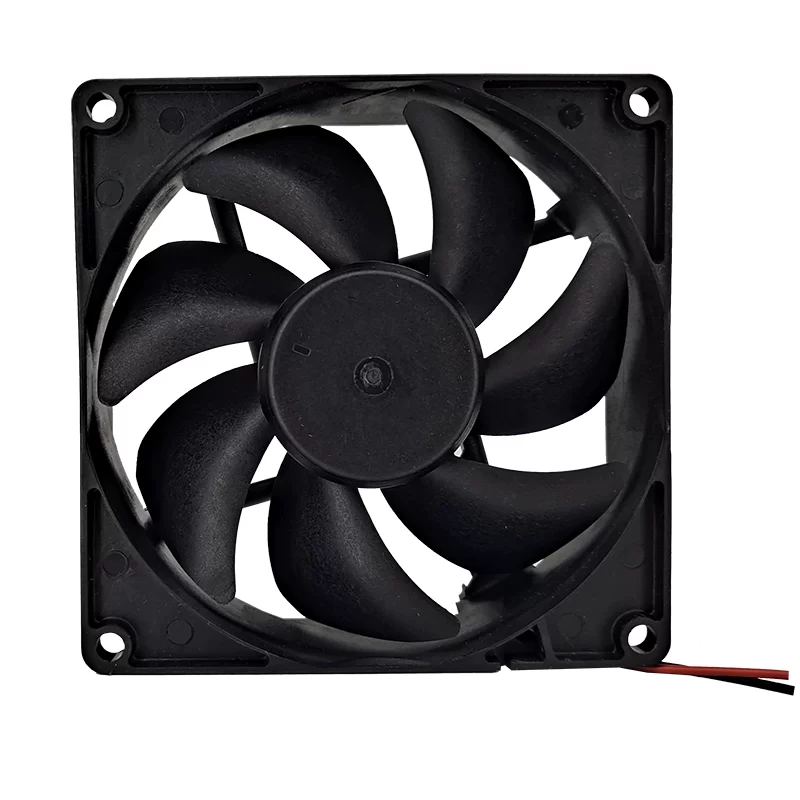

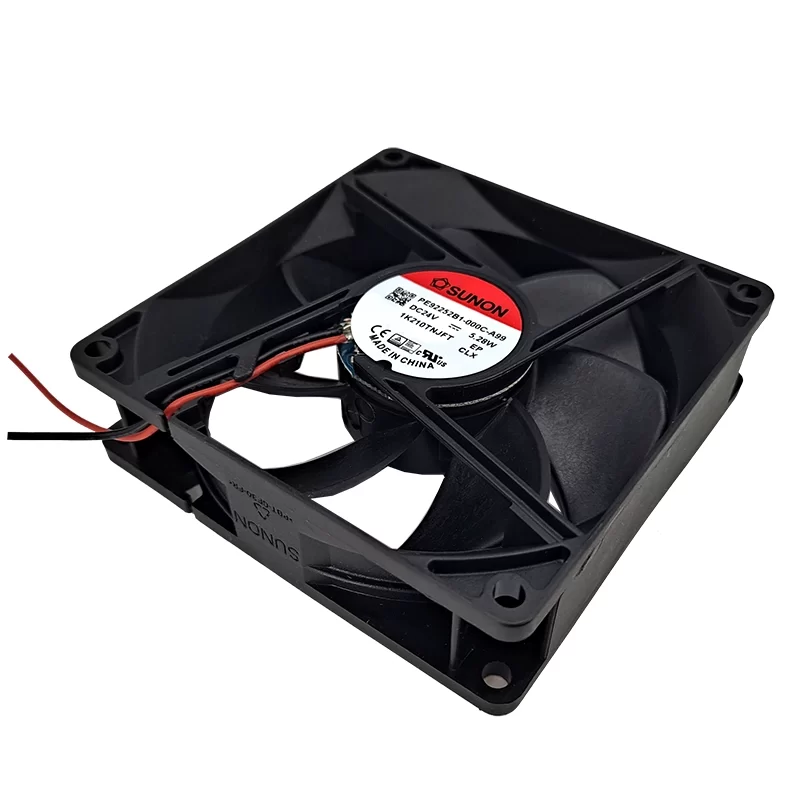

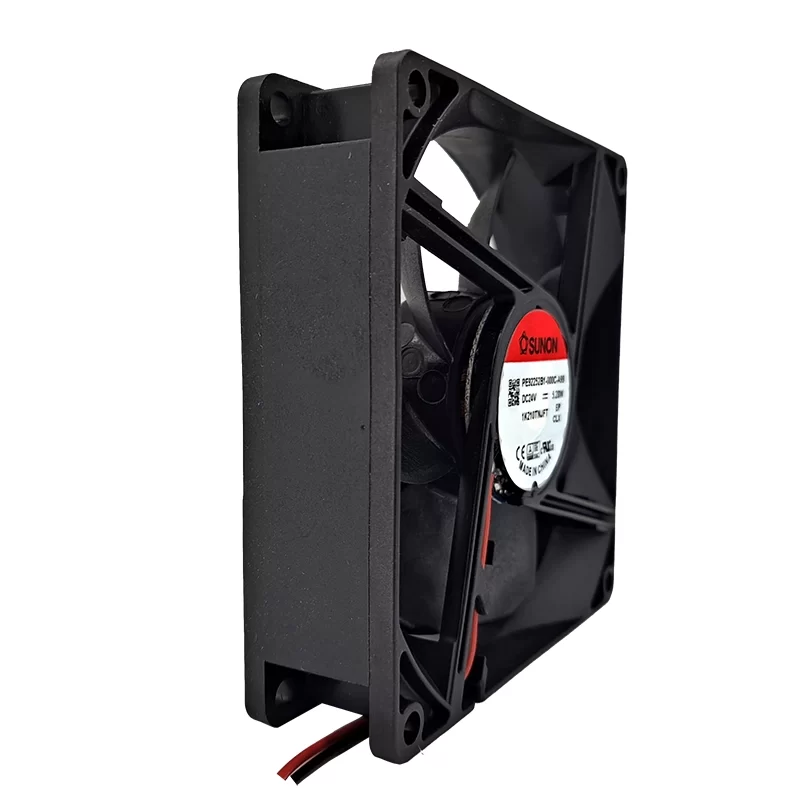

PE92252B1-000C-A99 SUNON DC24V 5.28W axial fan

Description

The SUNON PE92252B1-000C-A99 is a DC axial fan measuring 92x92x25mm. It operates on 24 VDC, drawing 219 mA of current, with a power consumption of 5.25 W. This fan achieves a speed of 4500 RPM, providing an airflow of 75 CFM (approximately 127.42 m³/h). Its noise level is 47 dB(A). It features a reliable ball bearing system for extended life. It connects via 2 wire leads. The frame and impeller materials are thermoplastic (PBT) with a UL94V-0 flammability rating. The fan also includes an auto-restart function for motor protection. It is commonly used in various electronic equipment, server cooling, and general cooling applications requiring efficient and durable airflow.

PE92252B1-000C-A99 Fan Parameters
Model: PE92252B1-000C-A99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 92x92x25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 10 to 27.6 VDC
Rated Current: 219 mA
Current and Power Consumption Tolerance: ±15%
Power Consumption: 5.25 W
Speed: 4500 RPM
Speed Tolerance: ±10%
Airflow: 75 CFM (127.42 m³/h)
Static Pressure: 0.15 inH2O (37.3 Pa)
Noise Level: 47 dB(A)
Bearing Type: Ball Bearing
Termination: 2 Wire Leads (typically 300mm length)
Frame Material: Thermoplastic PBT
Impeller Material: Thermoplastic PBT
Flammability Rating: UL94V-0
Insulation Class: A
Insulation Resistance: 10 MΩ minimum (at 500 VDC)
Dielectric Strength: 500 VAC for 1 minute
Motor Design: 2 phases, 4-poles Brushless DC motor
Operating Temperature: -10 to 70°C
Storage Temperature: -40 to 70°C
Expected Life: 70,000 hours (at 40°C)
Motor Protection: Auto Restart
Weight: 93.89 g
Application: Electronic equipment, server cooling, general cooling.
