Description

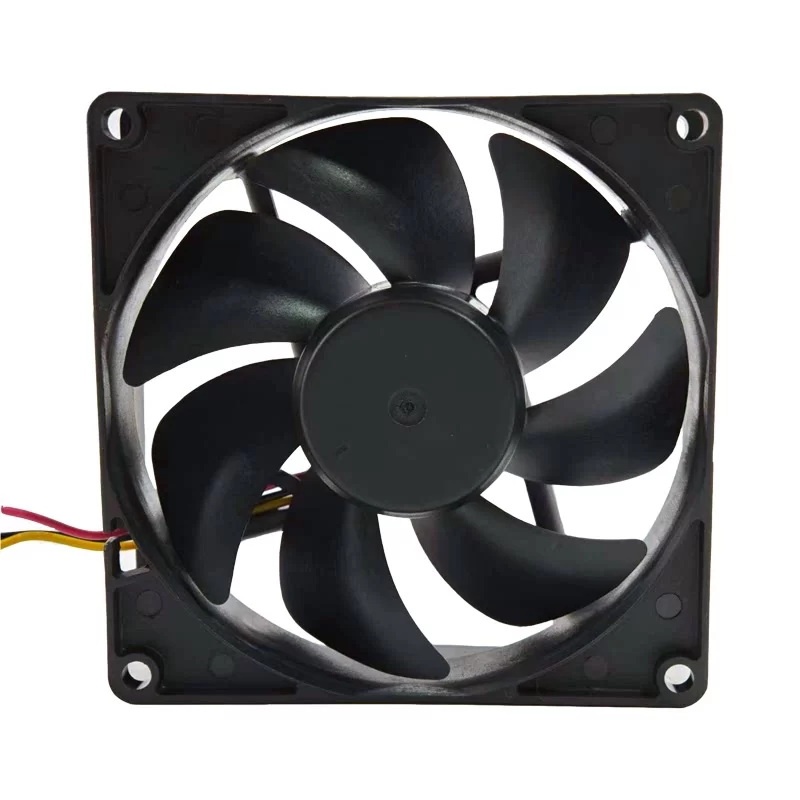

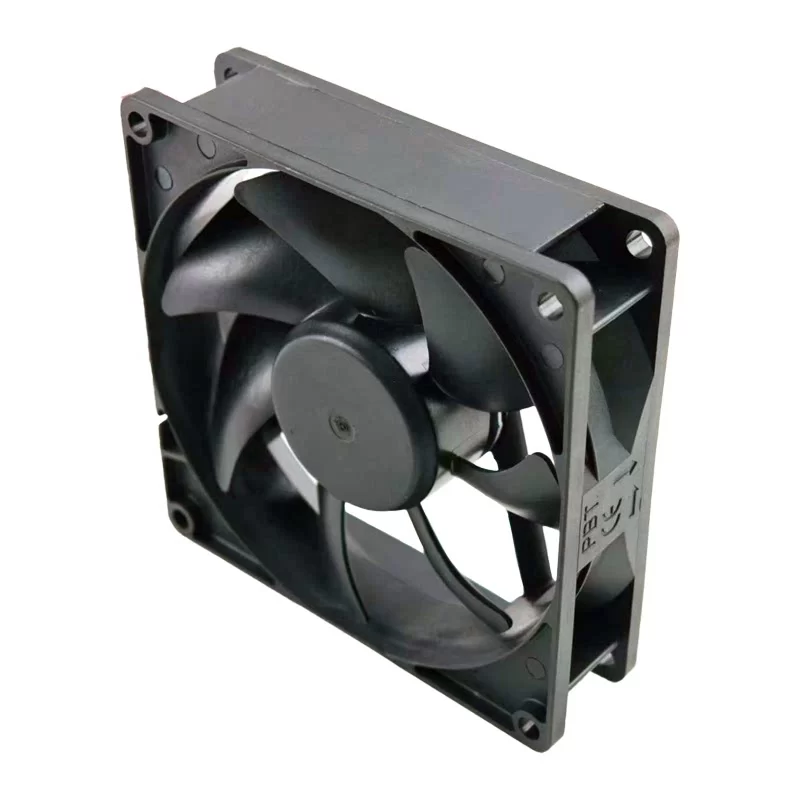

The Sunon PE92252B1-000C-G99 is a high-performance 24 V DC Industrial Axial Fan with a 9225 form factor, featuring a specialized 3-wire configuration with a pulse sensor for real-time speed monitoring. Driven by a high-torque brushless DC motor optimized for consistent air delivery, this unit features a precise Rated Power of 5.28 W, delivering a Max. Air Flow of 127.4 m³/h (75.0 CFM) at a rated speed of 4500 RPM. Constructed with a reinforced thermoplastic PBT frame and precision dual ball bearings, this 103.0 g unit ensures maximum mechanical stability and a reliable L10 service life of 70,000 hours at 40 °C. It is the definitive cooling solution for industrial power modules and telecommunications enclosures requiring reliable high-volume airflow and operational feedback in a 24 V DC environment at the end.
PE92252B1-000C-G99 Fan Parameters
Model Number: PE92252B1-000C-G99
Manufacturer: Sunon
Series: PE Series (High Performance)
Dimensions: 92 x 92 x 25 mm (9225)
Weight: 103.0 g
Bearing Type: Dual ball bearing
Nominal Voltage: 24 VDC
Voltage Range: 10.0 – 27.6 VDC
Starting Voltage: 10.0 VDC
Rated Current: 0.22 A
Max. Current Draw: 0.25 A
Max. Power Consumption: 5.28 W
Rated Speed: 4500 RPM
Max. Air Flow: 75.0 CFM (127.4 m³/h / 2.12 m³/min)
Max. Static Pressure: 0.35 inH₂O (87.2 Pa / 8.89 mmH₂O)
Working Air Flow: 127.4 m³/h
Static Pressure Increase: 87.2 Pa
Sensor Type: Pulse sensor (Tachometer / FG Signal)
Motor Protection: Auto Restart; Polarity Protection
Insulation Class: Class A
Degree of Protection: IP20
Electrical Hookup: 3-Lead wires (Red: +, Black: -, Yellow: Sensor)
Number of Blades: 7
Direction of Rotation: Counter-clockwise (viewed toward impeller)
Impeller Material: Thermoplastic PBT (UL 94V-0)
Frame Material: Thermoplastic PBT (UL 94V-0)
Sound Pressure Level: 47.0 dB(A)
Service Life (L10): 70,000 h (at 40 °C)
Operating Temperature: -10 – +70 °C
Standard Compliance: UL; TUV; CE; RoHS
Application
The Sunon PE92252B1-000C-G99 axial fan is the primary cooling component for motor controllers, industrial networking switches, and power distribution cabinets requiring high-volume airflow and remote rotation monitoring in 24V DC systems.
