Description

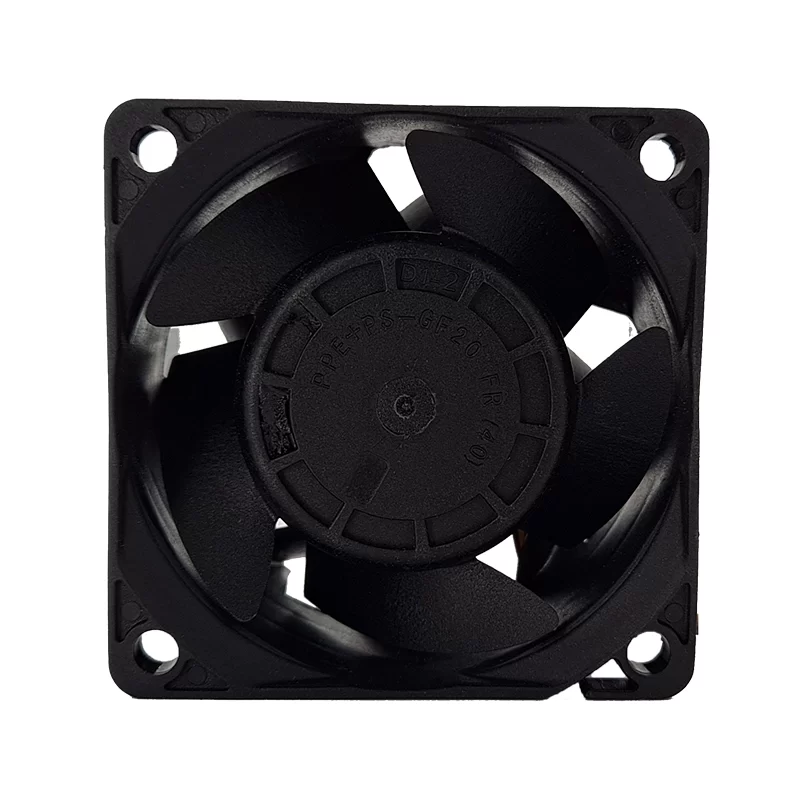

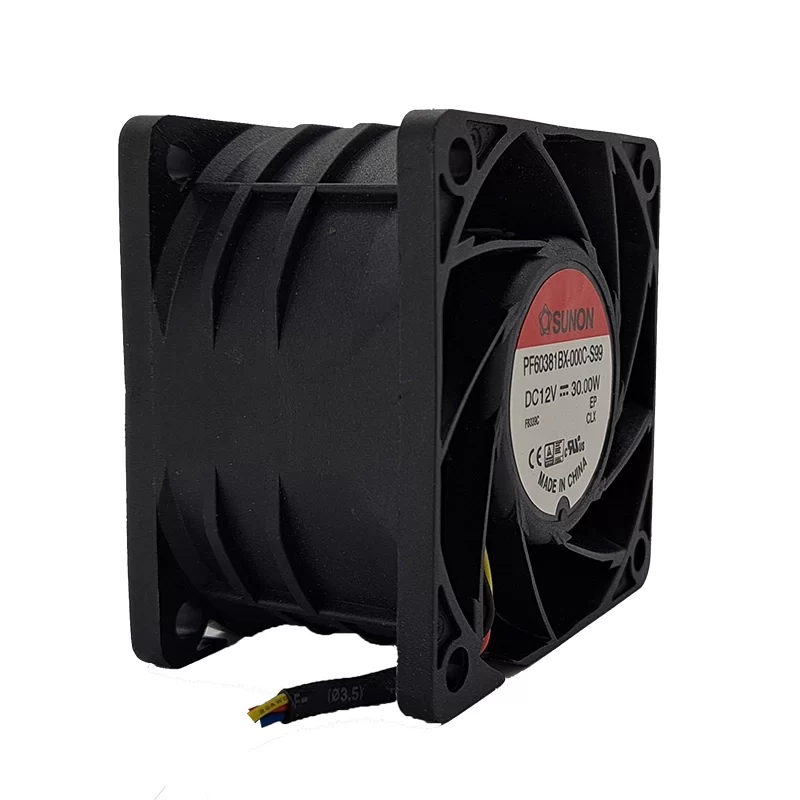

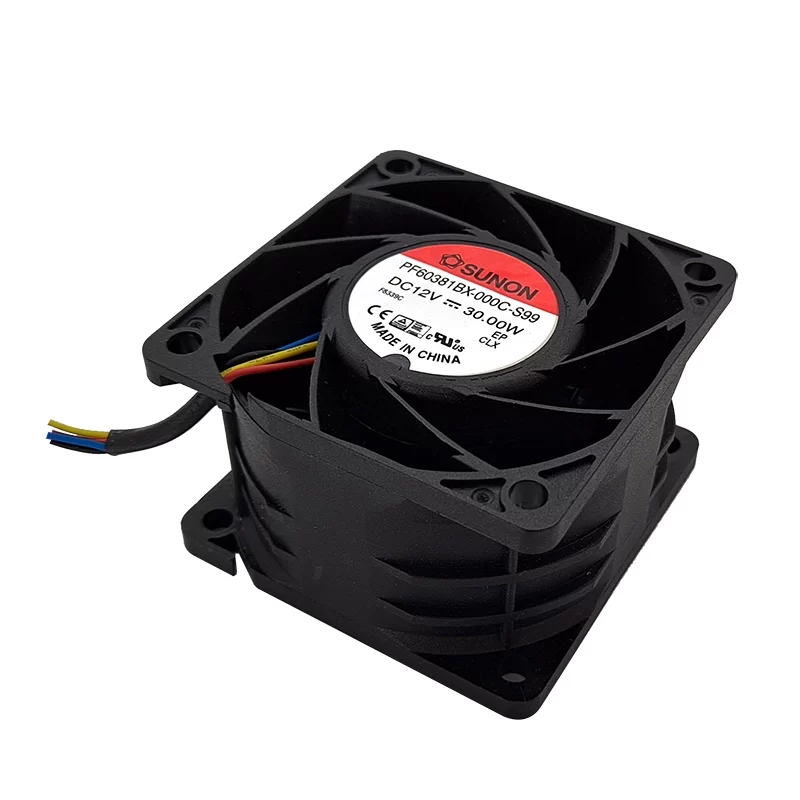

The SUNON PF60381BX-000C-S99 is a high-performance DC axial fan measuring 60x60x38mm. It operates on 12 VDC, drawing 2.50 A of current, with a power consumption of 30 W. This fan achieves an exceptionally high speed of 16500 RPM, providing a powerful airflow of 75.2 CFM (approximately 2.11 m³/min). Its noise level is 67.6 dB(A). It features a robust ball bearing system for durability and high-speed operation. It connects via 4 wire leads, typically indicating the presence of PWM control and a speed sensor (tachometer). The frame material is Polybutylene Terephthalate (PBT) with a UL94V-0 flammability rating. The fan also includes auto-restart as a motor protection feature. Due to its high speed and airflow, it is commonly used in applications requiring significant cooling in a compact space, such as server components, high-density computing equipment, and specialized industrial applications.
PF60381BX-000C-S99 Fan Parameters
Model: PF60381BX-000C-S99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 60x60x38 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 10.2 to 13.2 VDC
Rated Current: 2.50 A
Power Consumption: 30 W
Speed: 16500 RPM
Speed Tolerance: ±10%
Airflow: 75.2 CFM (2.11 m³/min)
Static Pressure: 3.28 inH2O (817.0 Pa)
Noise Level: 67.6 dB(A)
Bearing Type: Ball Bearing
Termination: 4 Wire Leads (PWM Control, Speed Sensor)
Frame Material: Polybutylene Terephthalate (PBT)
Impeller Material: Thermoplastic (PBT)
Flammability Rating: UL94V-0
Insulation Resistance: 500 MΩ minimum
Dielectric Strength: 1800 VAC for 1 second
Motor Protection: Auto Restart
Operating Temperature: -10 to 70°C
Storage Temperature: -30 to 80°C
Expected Life: 50,000 hours (at 25°C)
Weight: 127.01 g
Application: Server components, high-density computing equipment, specialized industrial cooling.
