Description

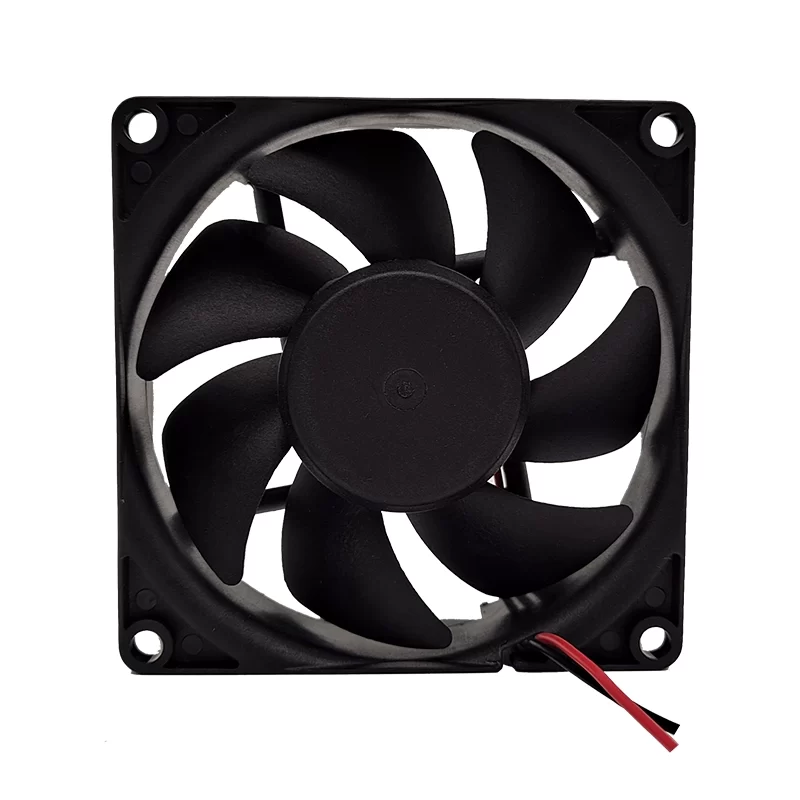

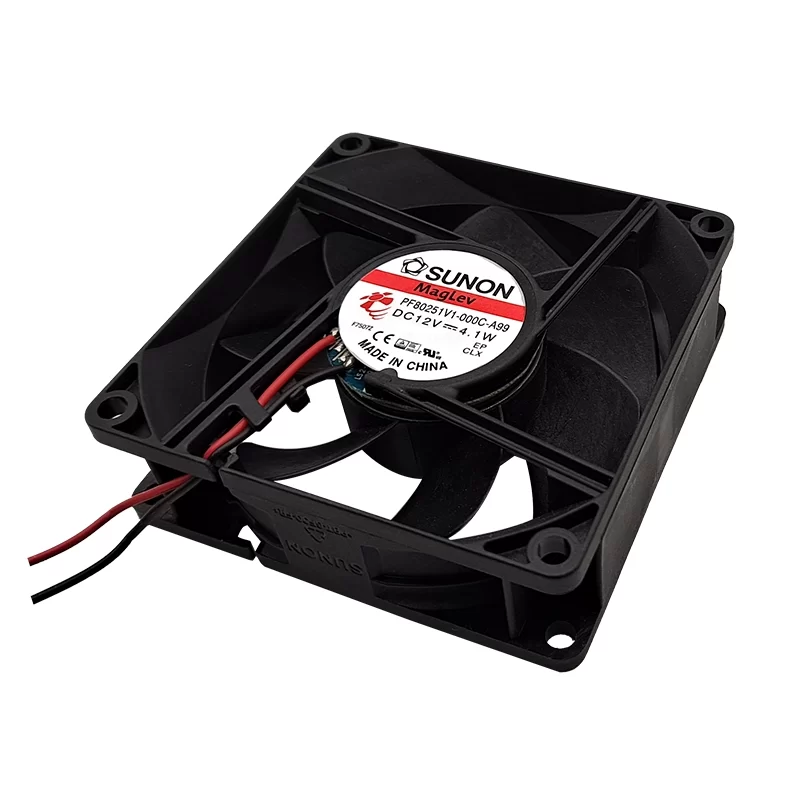

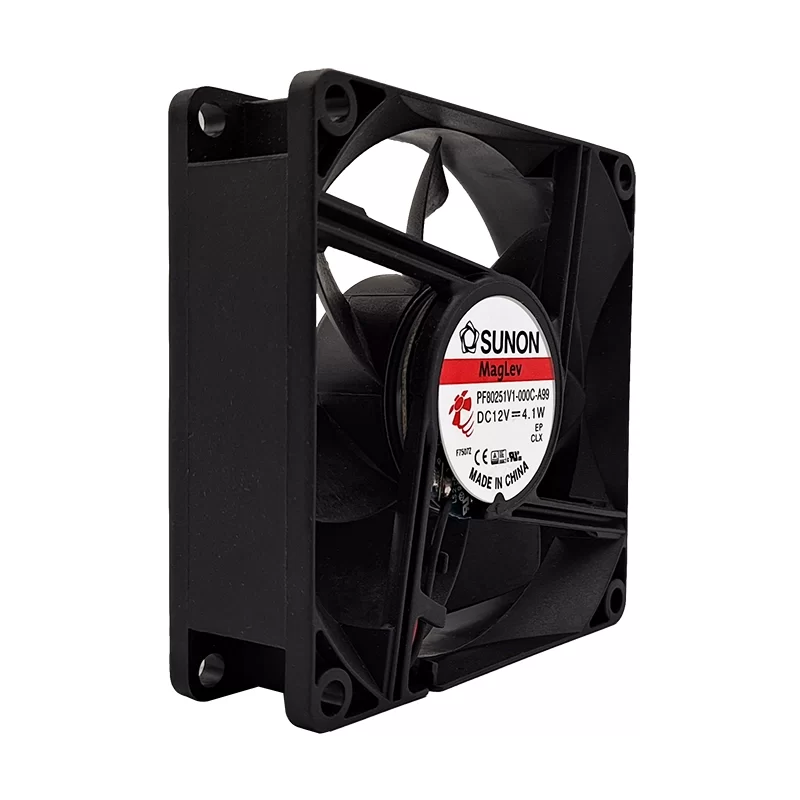

The SUNON PF80251V1-000C-A99 is a DC axial fan measuring 80x80x25mm. It operates on 12 VDC, drawing 0.34 A of current, with a power consumption of 4.1 W. This fan achieves a speed of 4800 RPM, providing an airflow of 60 CFM (approximately 101.4 m³/h). Its noise level is 44.7 dB(A). It features a precise Vapo bearing system (MagLev technology) for reliable operation, low noise, and extended life. It connects via 2 wire leads. The frame and impeller materials are thermoplastic (PBT) with a UL94V-0 flammability rating. The fan also includes automatic restart and polarity protection. Its MagLev motor design contributes to better dust resistance and higher reliability. It’s commonly used in various electronic equipment, server cooling, and general cooling applications requiring efficient and durable airflow.
PF80251V1-000C-A99 Fan Parameters
Model: PF80251V1-000C-A99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 80x80x25 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 6 to 13.8 VDC
Rated Current: 0.34 A
Power Consumption: 4.1 W
Speed: 4800 RPM
Speed Tolerance: ±10%
Airflow: 60 CFM (101.4 m³/h)
Static Pressure: 0.410 inH2O (102.1 Pa)
Noise Level: 44.7 dB(A)
Bearing Type: Vapo Bearing (MagLev technology)
Termination: 2 Wire Leads (typically 315mm length, 24AWG)
Frame Material: Thermoplastic PBT
Impeller Material: Thermoplastic PBT
Flammability Rating: UL94V-0
Insulation Class: A
Insulation Resistance: 10 MΩ minimum (at 500 VDC)
Dielectric Strength: 500 VAC for 1 minute
Motor Protection: Automatic Restart, Polarity Protection
Operating Temperature: -10 to 70°C
Storage Temperature: -40 to 70°C
Expected Life: 70,000 hours (at 40°C)
Weight: 91.17 g
Application: Electronic equipment, server cooling, general cooling.
