Description

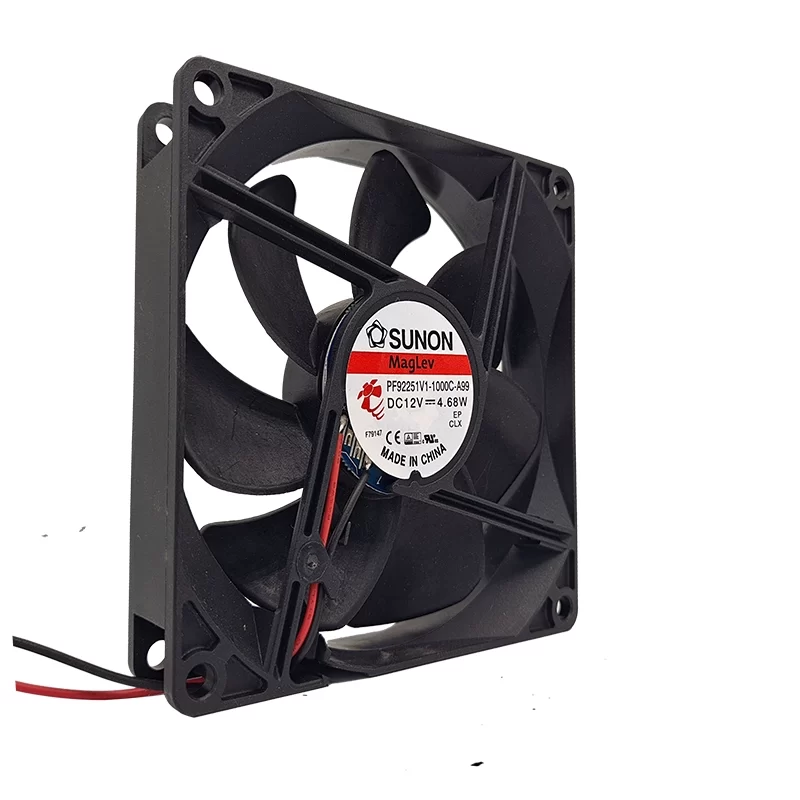

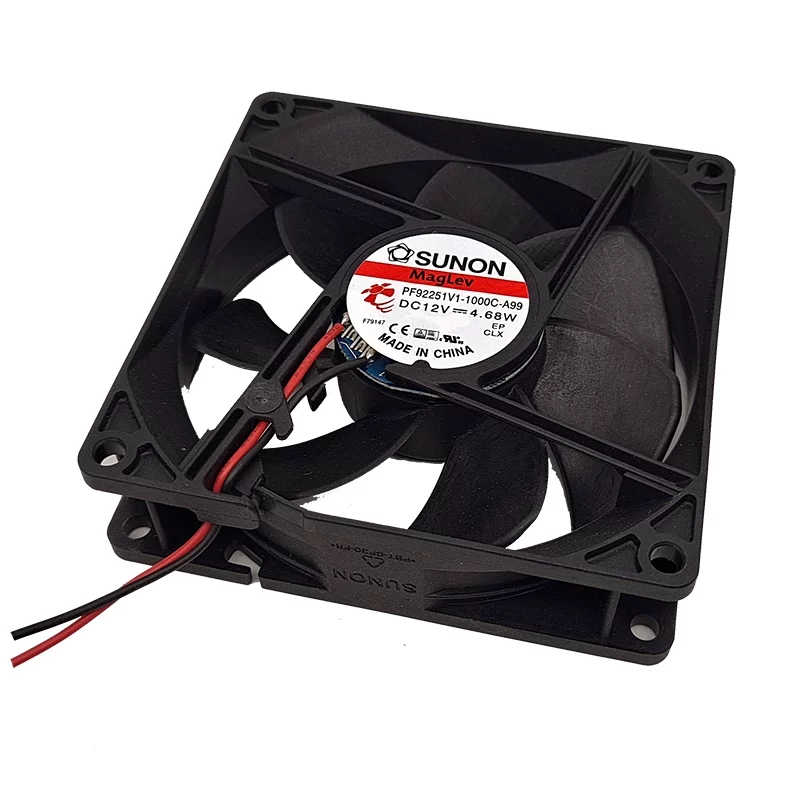

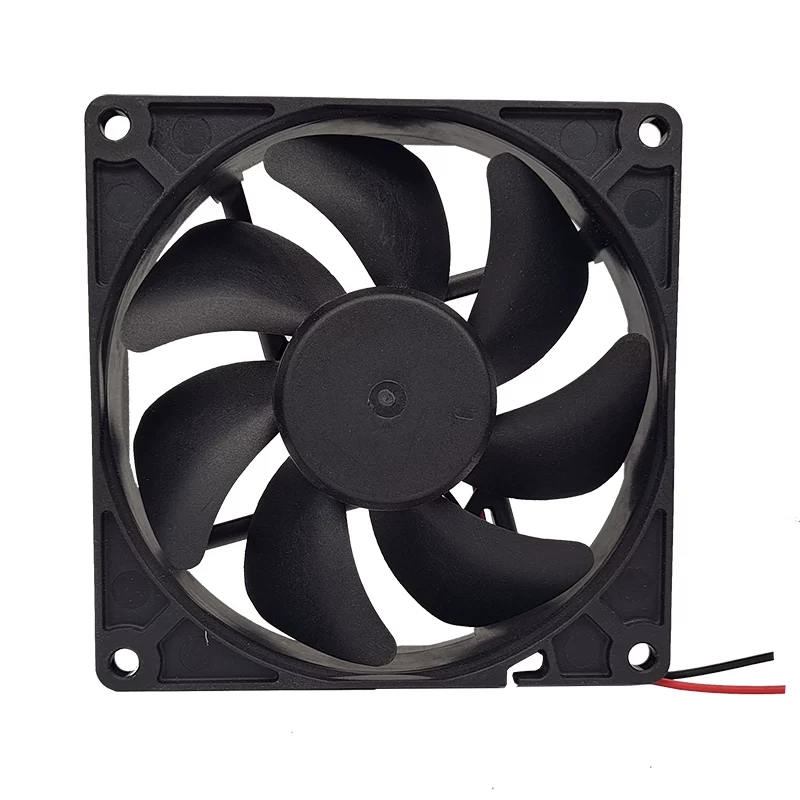

The SUNON PF92251V1-1000C-A99 is a DC axial fan measuring 92x92x25mm. It operates on 12 VDC, drawing 0.39 A of current, with a power consumption of 4.68 W. This fan achieves a speed of 4500 RPM, providing an airflow of 75 CFM (approximately 126.75 m³/h). Its noise level is 45.5 dB(A). It features a Vapo bearing system (MagLev technology) for reliable operation and extended life, and connects via 2 wire leads. The frame and impeller are made of thermoplastic (PBT) with a UL94V-0 flammability rating. The fan also includes automatic restart and polarity protection. It is commonly used in various electronic equipment, server cooling, and general cooling applications requiring efficient and durable airflow.
PF92251V1-1000C-A99 Fan Parameters
Model: PF92251V1-1000C-A99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 92x92x25 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 6 to 13.8 VDC
Rated Current: 0.39 A
Power Consumption: 4.68 W
Speed: 4500 RPM
Speed Tolerance: ±10%
Airflow: 75 CFM (126.75 m³/h)
Static Pressure: 0.350 inH2O (87.2 Pa)
Noise Level: 45.5 dB(A)
Bearing Type: Vapo Bearing (MagLev technology)
Termination: 2 Wire Leads (24AWG)
Frame Material: Thermoplastic (PBT)
Impeller Material: Thermoplastic (PBT)
Flammability Rating: UL94V-0
Insulation Class: A
Insulation Resistance: 10 MΩ minimum (at 500 VDC)
Dielectric Strength: 500 VAC for 1 minute
Operating Temperature: -10 to 70°C
Storage Temperature: -40 to 70°C
Expected Life: 70,000 hours (at 40°C, 65% humidity)
Motor Protection: Automatic Restart, Polarity Protection
Weight: 109.2 g
Application: Electronic equipment, server cooling, general cooling.
