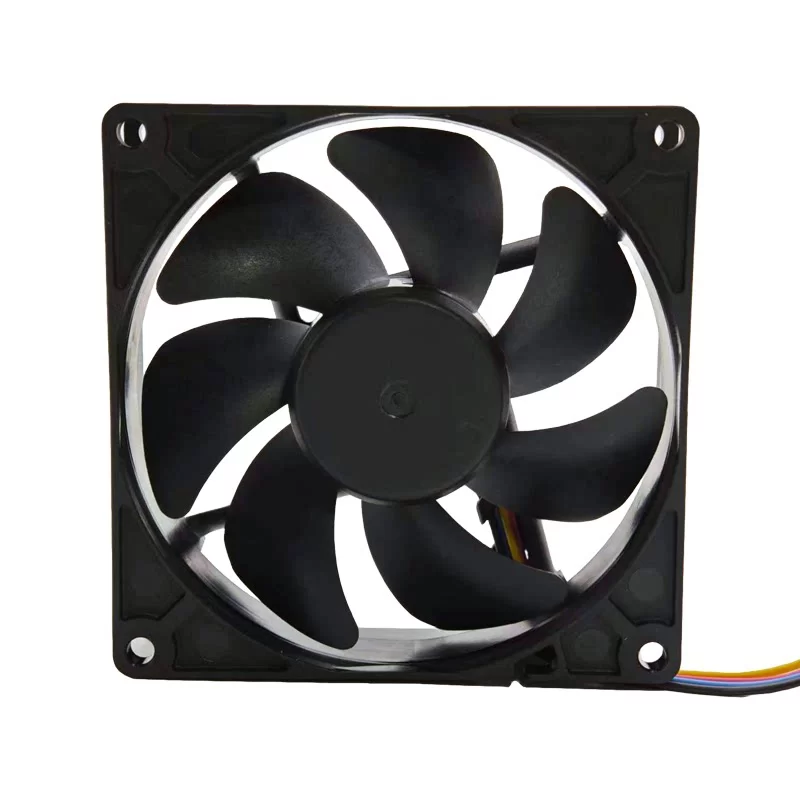

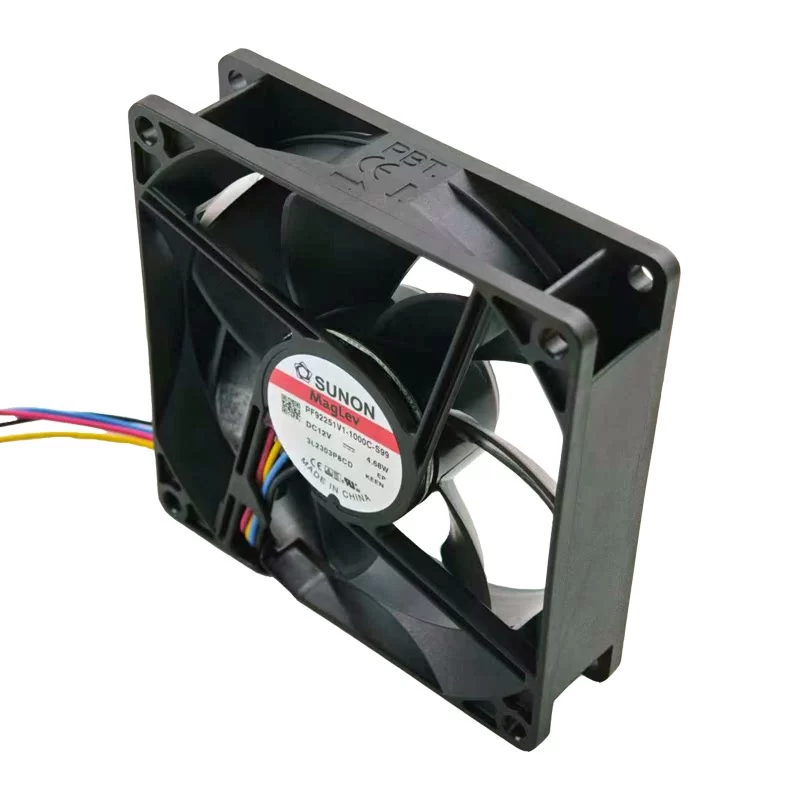

PF92251V1-1000C-S99 Sunon 12V 92x92x25mm DC Axial Fan

Description

The Sunon PF92251V1-1000C-S99 is a precision-engineered 92 mm DC axial fan designed for high-efficiency thermal management in compact industrial and networking enclosures. Operating on a 12 VDC supply with a power consumption of 4.68 W, this model utilizes Sunon’s advanced VAPO bearing system to ensure long-term stability and minimal mechanical noise. The S99 configuration features a professional 4-wire interface, integrating PWM speed control and Tacho (FG) output for intelligent, system-monitored cooling performance. With a 75 CFM airflow capacity and 0.35 inH₂O static pressure capability at 4500 RPM, it is optimized to provide effective air delivery in space-constrained, high-resistance environments such as server chassis and industrial power supplies. The housing and impeller are constructed from high-quality, UL 94V-0 grade flame-retardant plastic, and the unit supports S1 continuous operation across an ambient temperature range of -10 °C to +70 °C.

PF92251V1-1000C-S99 Fan Parameters
Model Number: PF92251V1-1000C-S99
Manufacturer: Sunon
Series: PF Series
Type: DC Axial Fan
Size: 92 mm
Dimensions: 92 x 92 x 25 mm
Weight: 106 g
Bearing Type: VAPO Bearing
Nominal Voltage: 12 VDC
Voltage Range: 6.0 – 13.8 VDC
Power Consumption: 4.68 W
Nominal Current: 0.39 A
Speed: 4500 RPM
Max. Air Flow: 75 CFM (127.5 m³/h / 2.12 m³/min)
Max. Static Pressure: 8.89 mmH₂O (87.2 Pa / 0.35 inAq)
Sound Pressure Level: 45.5 dB(A)
Motor Design: Brushless DC motor
Motor Protection: Auto-restart; Polarity protection
Technical Features: PWM speed control; Tacho output (FG signal); Soft start
Insulation Class: Class A
Electrical Hookup: 4-wire lead wires (Red: +, Black: -, Yellow: FG, Blue: PWM)
Number of Blades: 7
Direction of Rotation: Counter-clockwise, viewed toward rotor
Airflow Direction: Exhaust over struts
Impeller Material: Plastic (UL 94V-0)
Housing Material: Plastic (UL 94V-0)
Installation Position: Any
Degree of Protection: IP20
Operating Temperature: -10 – +70 °C
Service Life (L10 @ 40 °C): 70000 h
Standard Compliance: UL, TUV, CE
Approval Agency: UL, TUV, CUR

Application
The Sunon PF92251V1-1000C-S99 DC fan is primarily utilized in high-density server chassis, telecommunications power rectifiers, network storage systems (NAS), and industrial automation control cabinets.
