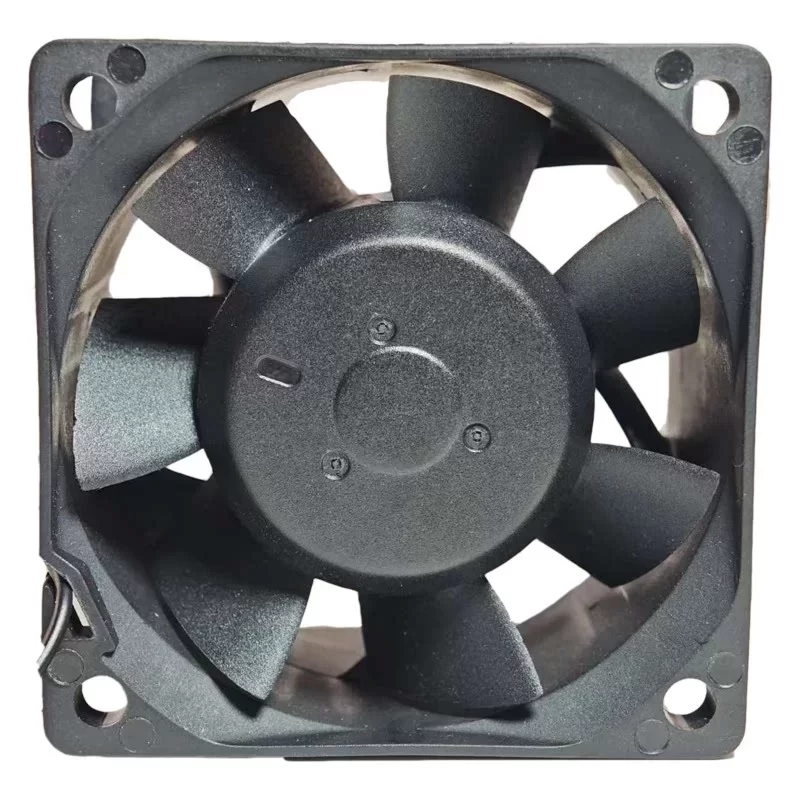

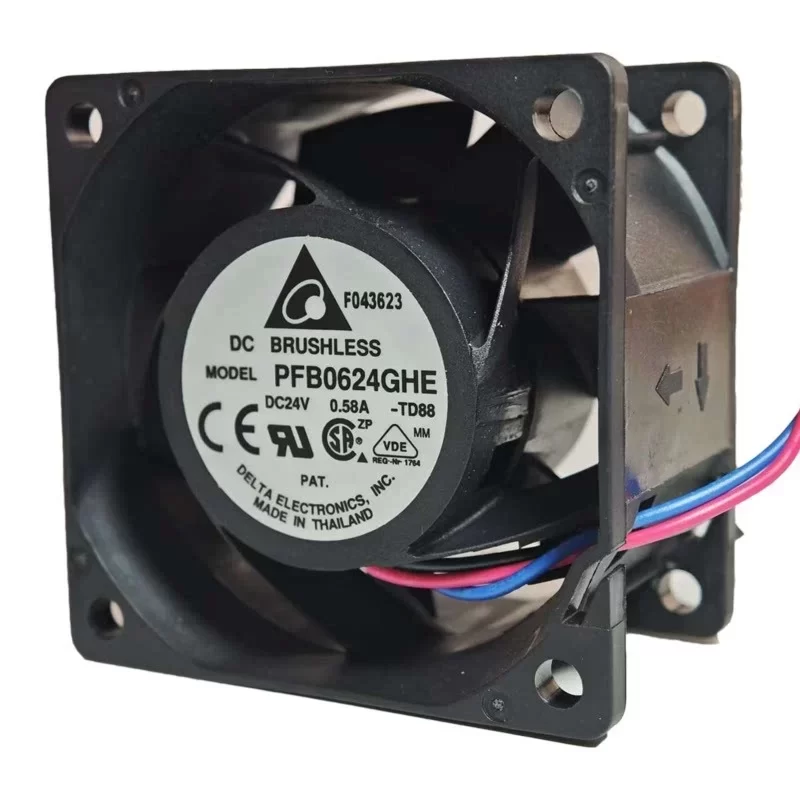

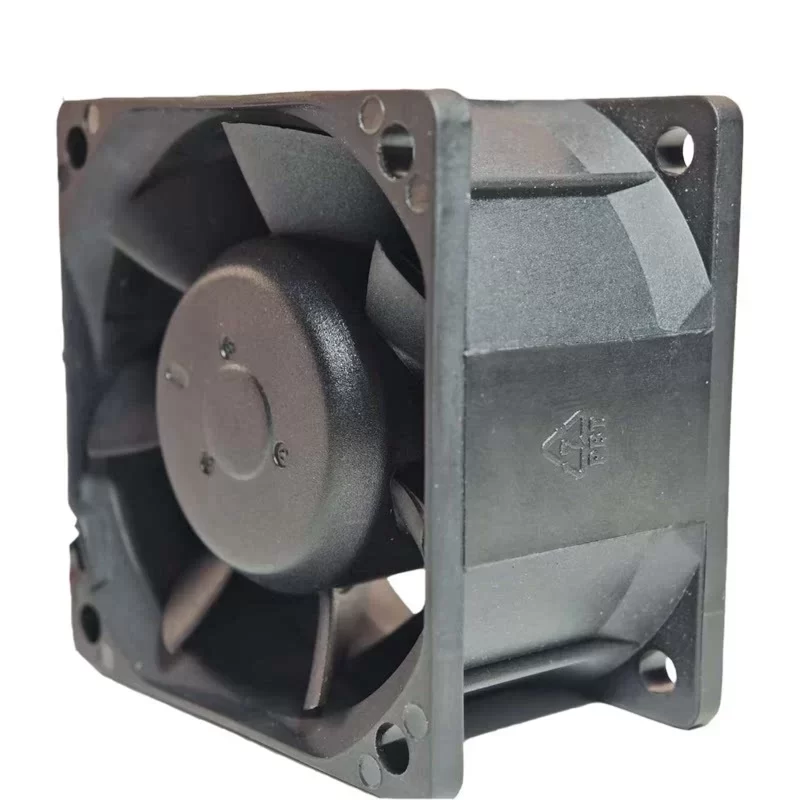

PFB0624GHE-TD88 Delta 24V 0.58A 60x60x38mm DC Axial Fan

Description

The Delta PFB0624GHE-TD88 is a high-velocity 60 mm DC axial fan engineered for intense thermal management in demanding industrial and telecommunications environments. Operating on a 24 VDC supply, this unit features a specialized motor drawing 0.58 A to drive its high-performance impeller at 12000 RPM, delivering exceptional static pressure to overcome internal system resistance. The TD88 variant is configured with a three-wire interface that provides a dedicated Tacho (FG) signal output, allowing for real-time rotational speed monitoring to ensure system reliability. Built with a robust dual ball bearing system and housed in a 38 mm deep frame made of UL 94V-0 flame-retardant plastic, the PFB0624GHE-TD88 provides a heavy-duty, high-efficiency cooling solution for high-density server racks and power conversion equipment across an ambient temperature range of -10 °C to +70 °C.

PFB0624GHE-TD88 Fan Parameters
Model Number: PFB0624GHE-TD88
Manufacturer: Delta
Series: PFB Series
Type: DC Axial Fan
Size: 60 mm
Dimensions: 60 x 60 x 38 mm
Weight: 130 g
Bearing Type: Ball bearing
Nominal Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Power Consumption: 13.92 W
Nominal Current: 0.58 A
Speed: 12000 RPM
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Actual Air Flow: 59.54 CFM (101.2 m³/h)
Actual Static Pressure: 36.12 mmH₂O (354.2 Pa)
Sound Pressure Level: 61.5 dB(A)
Motor Design: Brushless DC motor
Motor Protection: Locked rotor protection; Polarity protection
Technical Features: Tacho output (FG signal); 3-wire interface; Soft start
Insulation Class: Class A
Electrical Hookup: 3-wire lead wires (Red: +, Black: -, Blue: FG)
Number of Blades: 7
Direction of Rotation: Clockwise, viewed toward rotor
Airflow Direction: Exhaust over struts
Impeller Material: Plastic (UL 94V-0)
Housing Material: Plastic (UL 94V-0)
Installation Position: Any
Degree of Protection: IP20
Operating Temperature: -10 – +70 °C
Service Life (L10 @ 40 °C): 70000 h
Standard Compliance: UL, TUV, CE
Approval Agency: UL, TUV, CSA

Application
The Delta PFB0624GHE-TD88 DC fan is primarily utilized in high-density server chassis, 24V telecommunications rectifiers, high-pressure industrial cooling modules, and network storage systems (NAS/SAN).
