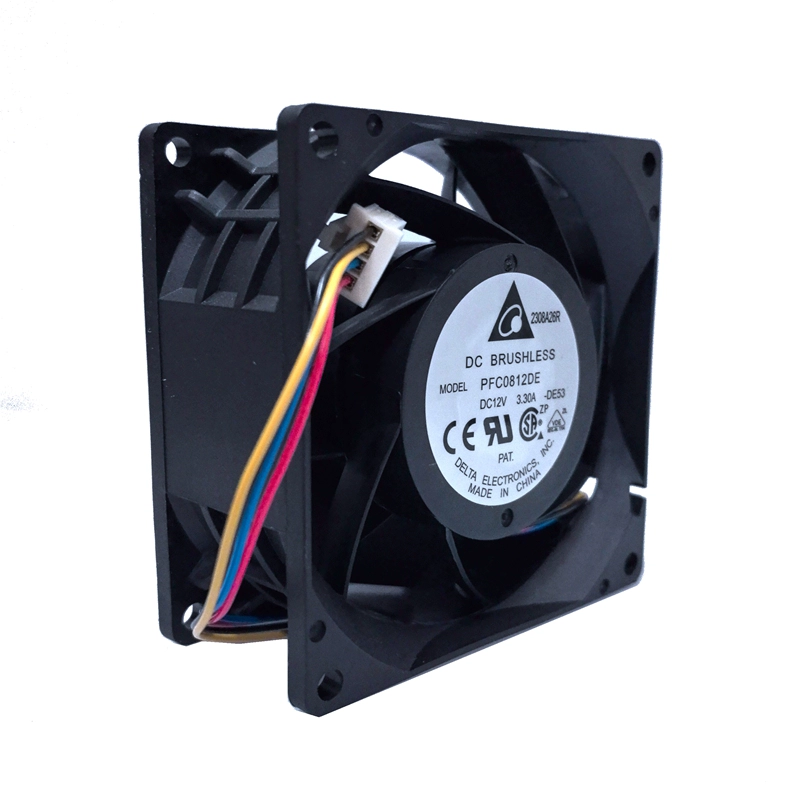

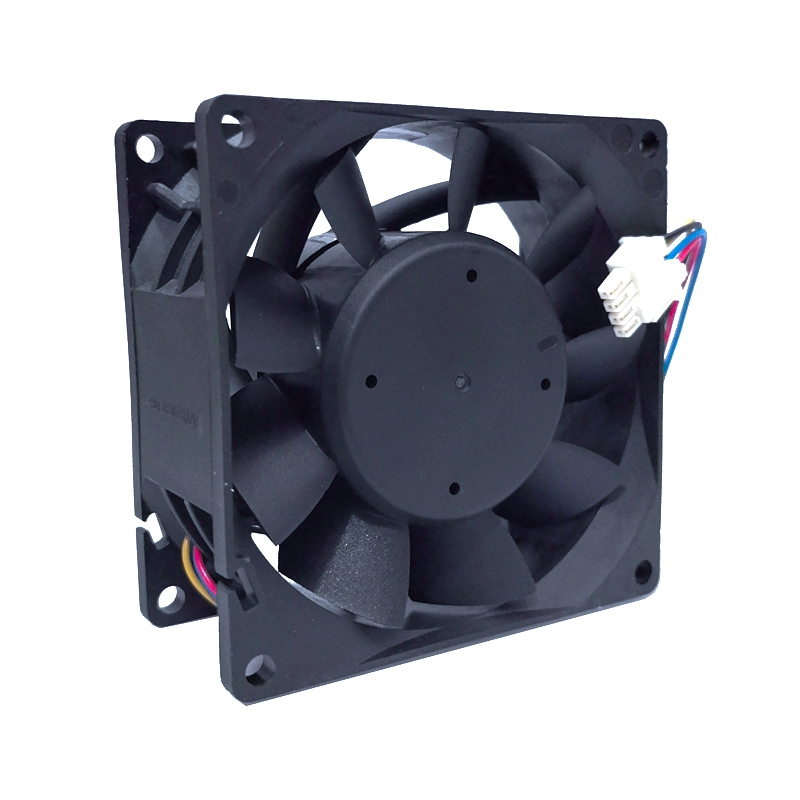

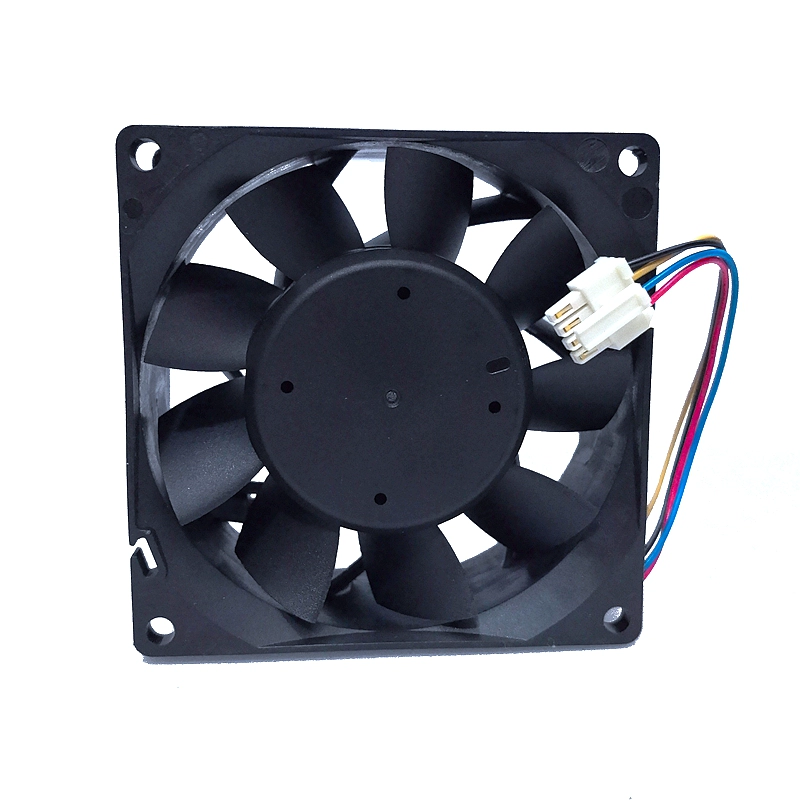

PFC0812DE-DE53 DC12V 3.30A 4-Wire axial fan

Description

The Delta PFC0812DE-DE53 is an 80x80x38mm DC axial fan engineered for extreme cooling demands in high-density electronic equipment. Operating on 12 VDC, this fan draws a substantial 3.30A of current, resulting in a high power consumption of 39.6W. It achieves an incredibly fast rotational speed, typically around 12000 RPM, delivering an exceptional airflow of approximately 152 CFM (4.3 m³/min) and significant static pressure. With a high noise level of around 65 dB(A), indicative of its powerful performance, and utilizing durable high precision ball bearings, it ensures robust and efficient cooling. This model features 4-wire leads for connection, including a pulse sensor (tachometer output) and PWM control for precise speed regulation. Built with flame-retardant plastic, it is ideal for servers, mining rigs, high-performance workstations, and other applications requiring aggressive thermal management.

PFC0812DE-DE53 Fan Parameters
Model Number: PFC0812DE-DE53
Manufacturer: Delta Electronics
Series: PFC
Type: DC Axial Fan
Dimensions: 80mm x 80mm x 38mm
Rated Voltage: 12 VDC
Operating Voltage Range: 10.8–13.2 VDC (typical for PFC0812DE series)
Rated Current: 3.30A
Power Consumption: 39.6 W
Speed: 12000 RPM
Airflow: 152 CFM (4.3 m³/min)
Static Pressure: Approximately 51.57 mmH2O (2.03 inch H2O)
Noise Level: 65 dB(A)
Bearing Type: High Precision Ball Bearing
Frame Material: Plastic (PBT + 30% glass fiber + VO grade flame retardant)
Blade Material: Plastic (PBT + 30% glass fiber + VO grade flame retardant)
Termination: 4-Wire Leads
Control Features: PWM Control, Pulse Sensor (Tachometer output)
Protection Features: Locked Rotor Protection (typical for PFC series)
Expected Life: 100,000 hours @ 25°C (some sources, others 50,000 hours @ 40°C)
Operating Temperature: -10°C to +70°C
Weight: 205 g (approximately)
Certifications: CE, CSA, UL, VDE (typical for Delta fans)
Application: Servers, mining equipment, high-performance computers, telecommunications, power supplies, industrial control systems, and any application requiring maximum airflow in a compact space.
