Description

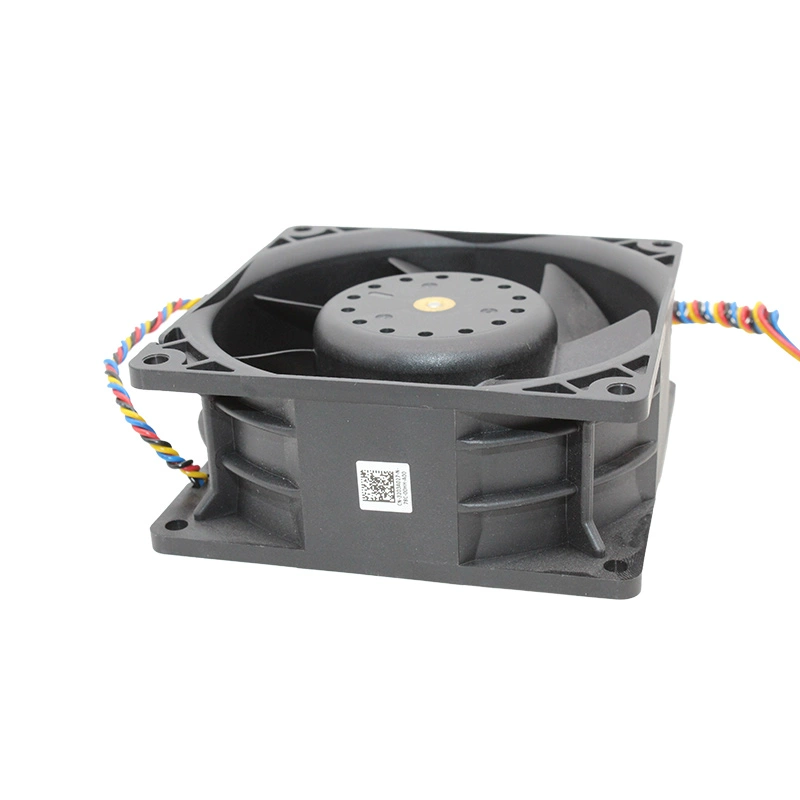

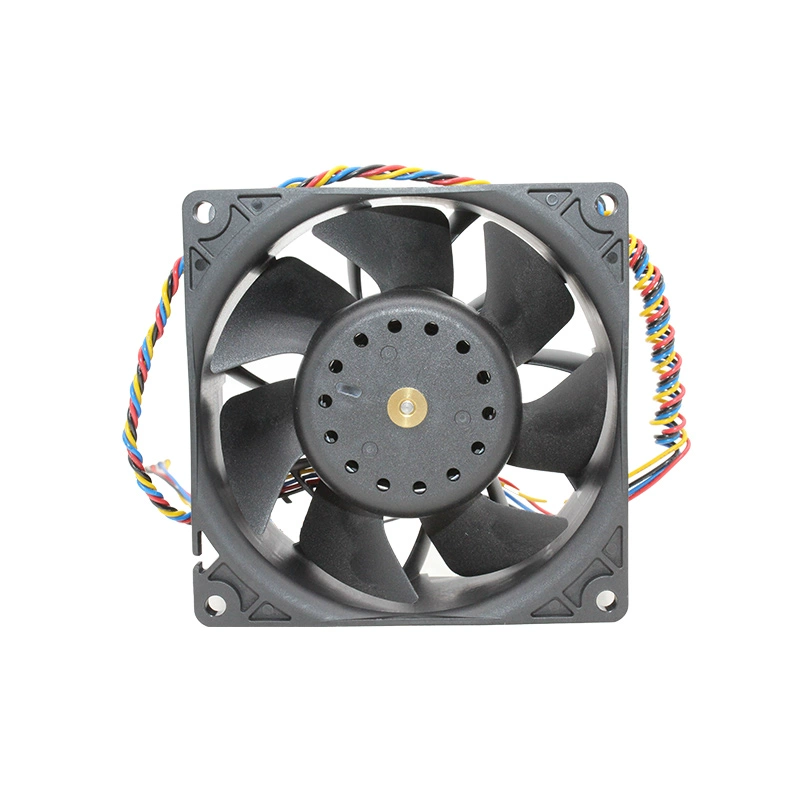

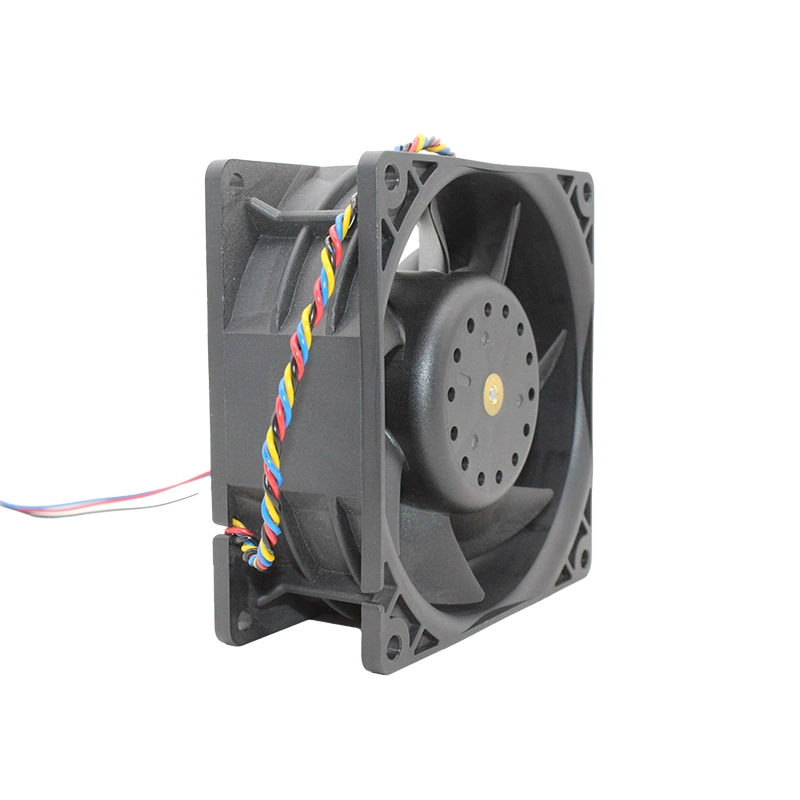

The Delta PIA092K12M-P03-AB is a 12V DC axial cooling fan from Delta Electronics, with dimensions of 92mm x 92mm x 38mm. It operates at a rated current of 2.17A (26.04W) and features a 4-wire lead connector, typically providing PWM control for speed adjustment and a speed sensor for monitoring. This fan is identified as an OEM custom variant, and while its high power consumption indicates a very strong cooling capability, specific performance metrics such as speed, airflow, static pressure, and noise level are not publicly confirmed for this exact model number. It utilizes ball bearings for durability, and its robust design suggests it is intended for demanding applications requiring significant airflow in a compact form factor.
Model Number: PIA092K12M-P03-AB
Manufacturer: Delta Electronics
Type: DC Axial Cooling Fan
Dimensions: 92mm x 92mm x 38mm
Rated Voltage: 12V DC
Rated Current: 2.17A
Rated Power: 26.04W
Connector: 4-Wire Leads
Bearing Type: Ball Bearing
Frame Material: Plastic
Impeller Material: Plastic
Features: PWM Control, Speed Sensor, Locked Rotor Protection, Auto Restart
