Description

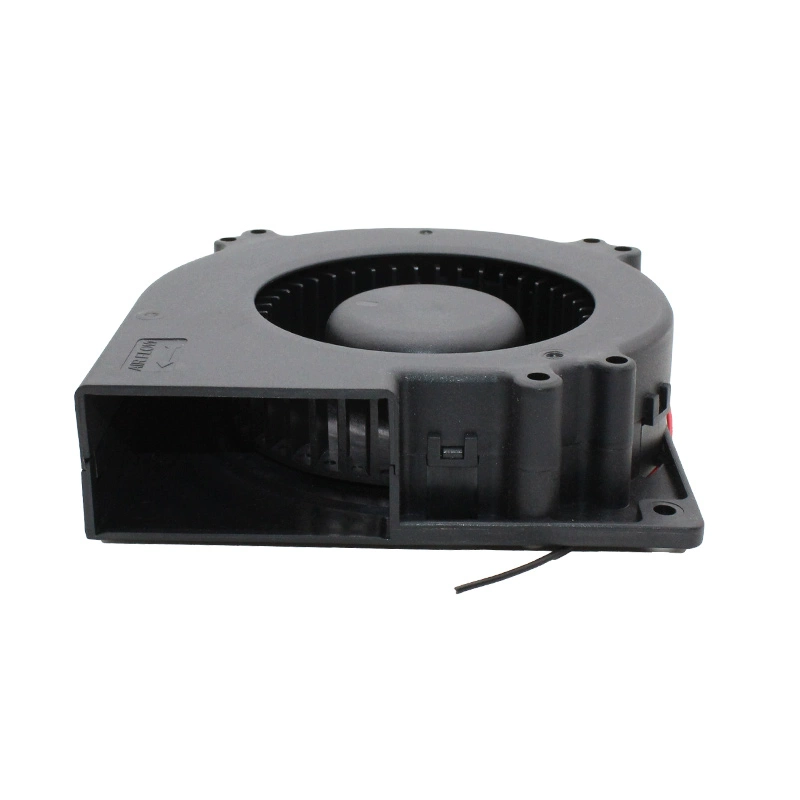

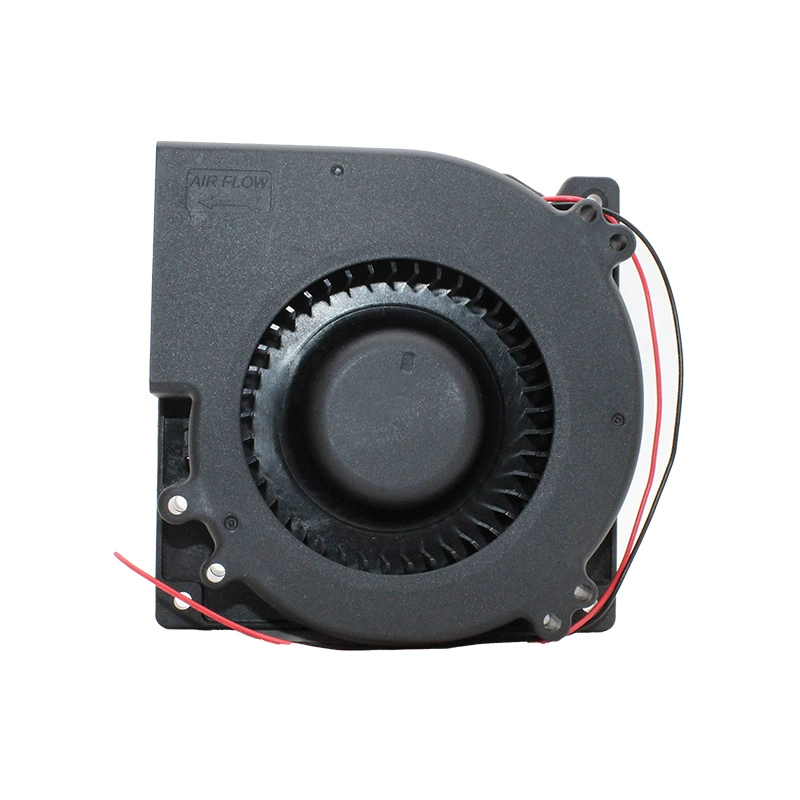

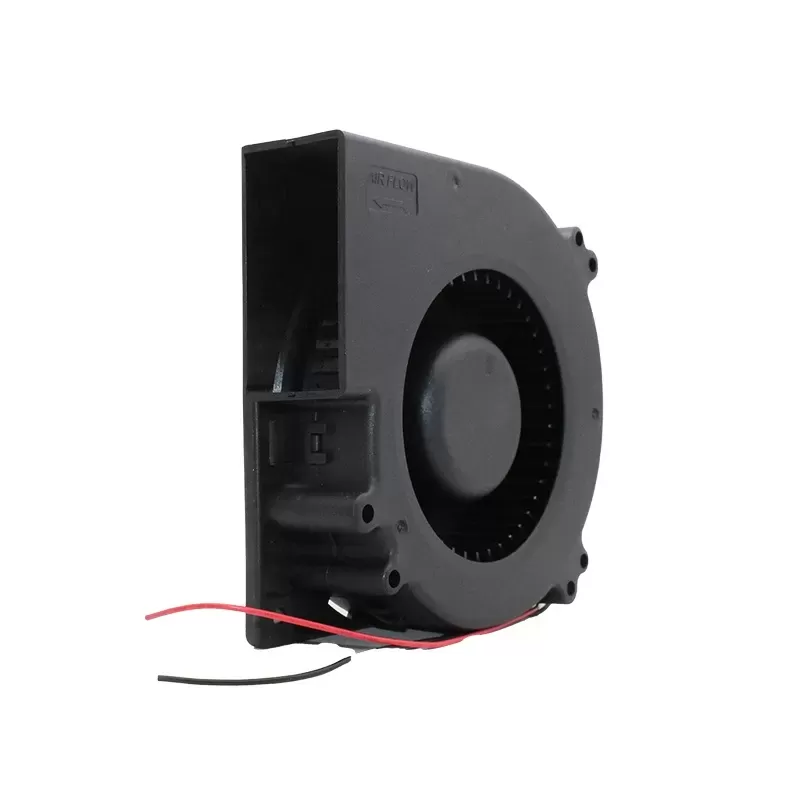

The Sunon PMB1212PLB2-A(2).GN is a robust DC Blower Fan engineered for effective thermal management in applications where high static pressure is critical. Operating on 12V DC power, it draws 0.82A of current, resulting in a 9.8W power consumption. Measuring 120mm x 120mm x 32mm, this fan spins at 2500 RPM, delivering a substantial 35.9 CFM of airflow and an impressive static pressure of 0.89 inH2O, allowing it to efficiently move air even through restrictive pathways. It produces a noise level of 53.8 dBA, which is typical for a blower of its performance class. Equipped with 2-wire leads and built with durable dual ball bearings, the PMB1212PLB2-A(2).GN ensures reliable operation with an auto-restart function and is RoHS compliant, making it a suitable choice for cooling in systems like servers, networking equipment, and industrial machinery.
PMB1212PLB2-A(2).GN built SUNON turbine blower 12032 centrifugal fan 12V 9.8W
Manufacturer: Sunon
Model Number: PMB1212PLB2-A(2).GN
Type: DC Blower Fan
Rated Voltage: 12V DC
Operating Voltage Range: 6V to 13.8V DC
Rated Current: 0.82A
Rated Power: 9.8W
Speed: 2500 RPM
Airflow: 35.9 CFM
Static Pressure: 0.89 inH2O or 221.7 Pa
Noise Level: 53.8 dBA
Dimensions: 120mm x 120mm x 32mm
Connector: 2-Wire Leads
Bearing Type: Dual Ball Bearing
Features: Auto-restart, RoHS compliant
Operating Temperature: -10°C to 70°C
Material: Polybutylene Terephthalate (PBT) for both frame and impeller
Flammability Rating: UL94V-0
