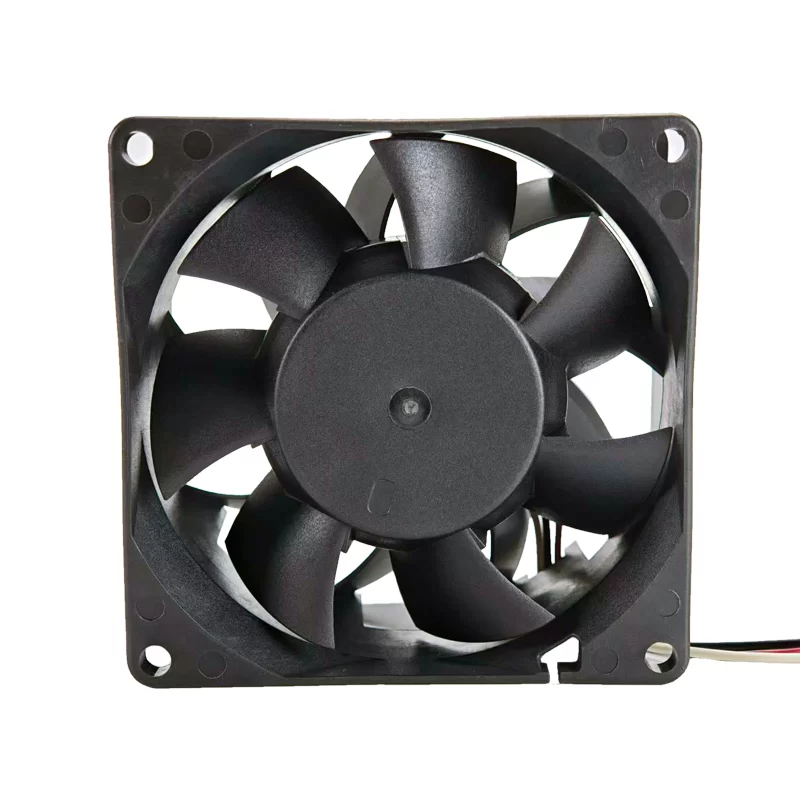

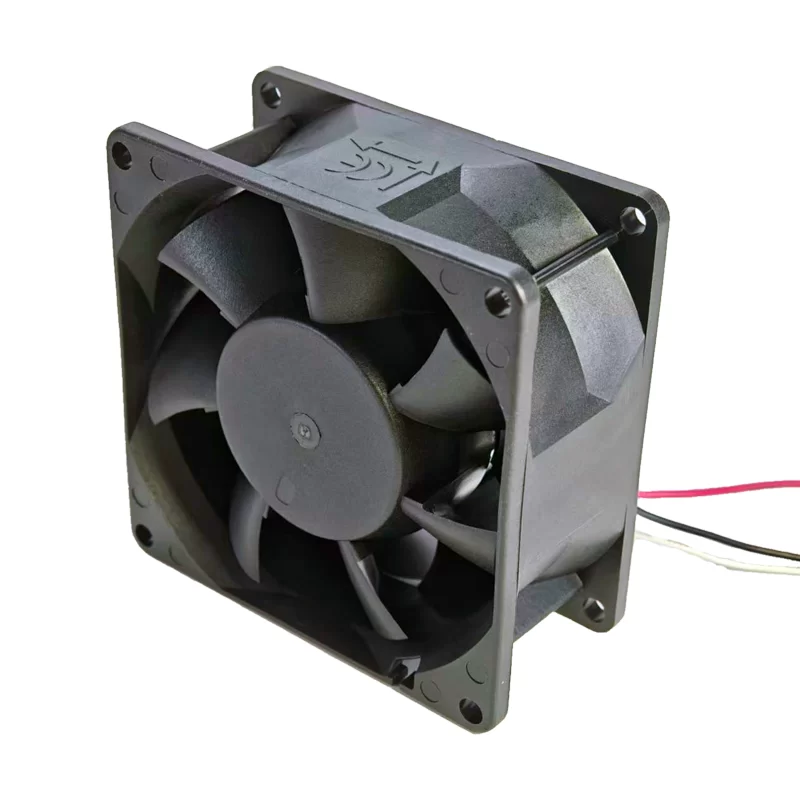

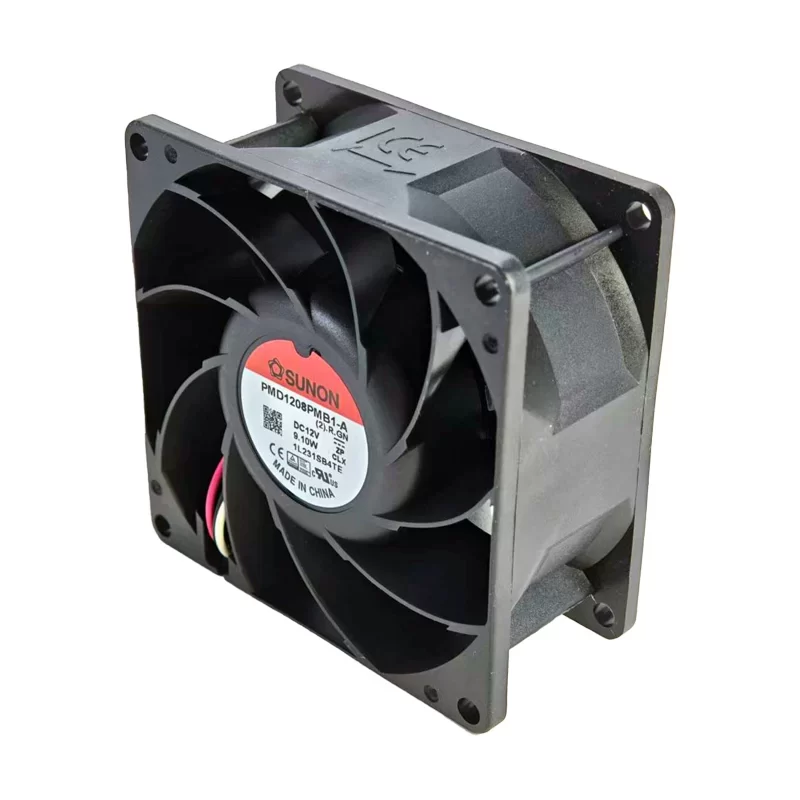

PMD1208PMB1-A.(2).R.GN SUNON 12V 9.10W 80mm DC Axial Fan

Description

The SUNON PMD1208PMB1-A.(2).R.GN is an extremely high-performance DC Axial Fan with extended dimensions of 80 x 80 x 38 mm. It operates on a nominal voltage of 12 V DC with a high power consumption of 9.10 W (0.76 A). This high-speed fan achieves 5700 RPM, delivering an exceptional airflow of 84.1 CFM (142.9 m³/h) and a maximum static pressure of 0.74 inAq. It is designed for maximum cooling in high-density applications against severe system resistance.

PMD1208PMB1-A.(2).R.GN Fan Parameters
Model: PMD1208PMB1-A.(2).R.GN
Manufacturer: SUNON
Type: DC Axial Fan (Tubeaxial)
Series: Super Power PMD Series
Dimensions: 80 x 80 x 38 mm
Nominal Voltage: 12 V DC
Operating Voltage Range: 6 V DC to 13.8 V DC
Rated Current: 0.76 A
Rated Power Consumption: 9.10 W
Speed: 5700 RPM
Max. Airflow : 142.9 m³/h (84.1 CFM)
Max. Static Pressure: 0.74 inAq (184.2 Pa)
Noise Level: 55.2 dB(A)
Weight: 175 g
Number of Blades: 7
Bearing Type: Ball Bearing
Motor Design: Brushless DC Motor
Termination: 3 Wire Leads
Housing Material: Thermoplastic (PBT UL94V-0)
Impeller Material: Thermoplastic (PBT UL94V-0)
Life Expectancy: 50000 h (at 40 °C)
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Certifications: CE, UL, TUV

Application
The SUNON PMD1208PMB1-A.(2).R.GN is a heavy-duty cooling solution primarily used where the enclosure depth allows for a thicker fan (38 mm) to maximize performance. Its extreme static pressure and high airflow are crucial for cooling high-power computer servers, industrial embedded systems, and telecommunication devices that generate significant heat and require reliable 12V DC operation.
