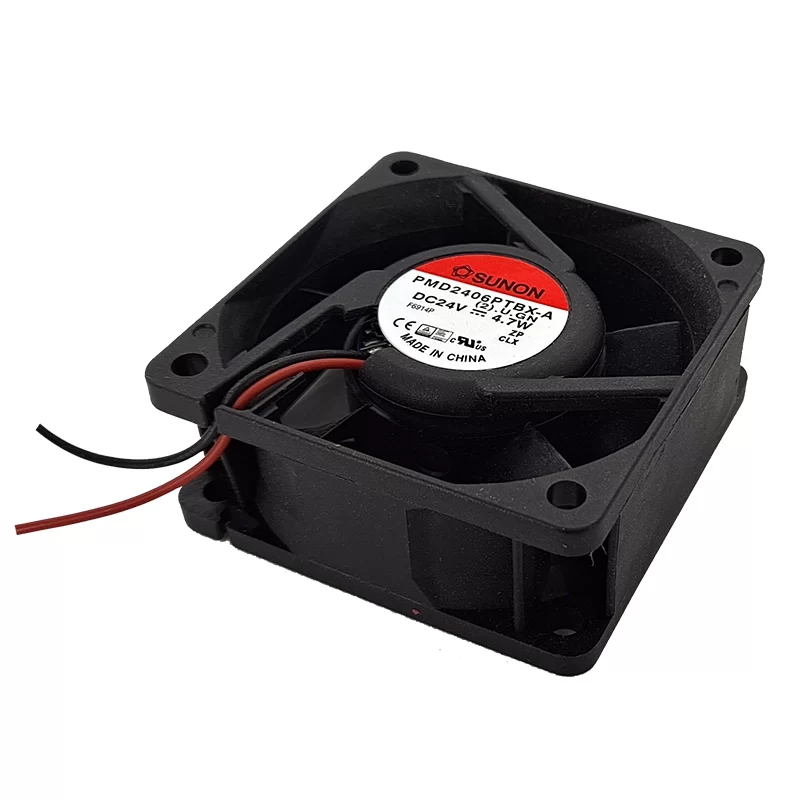

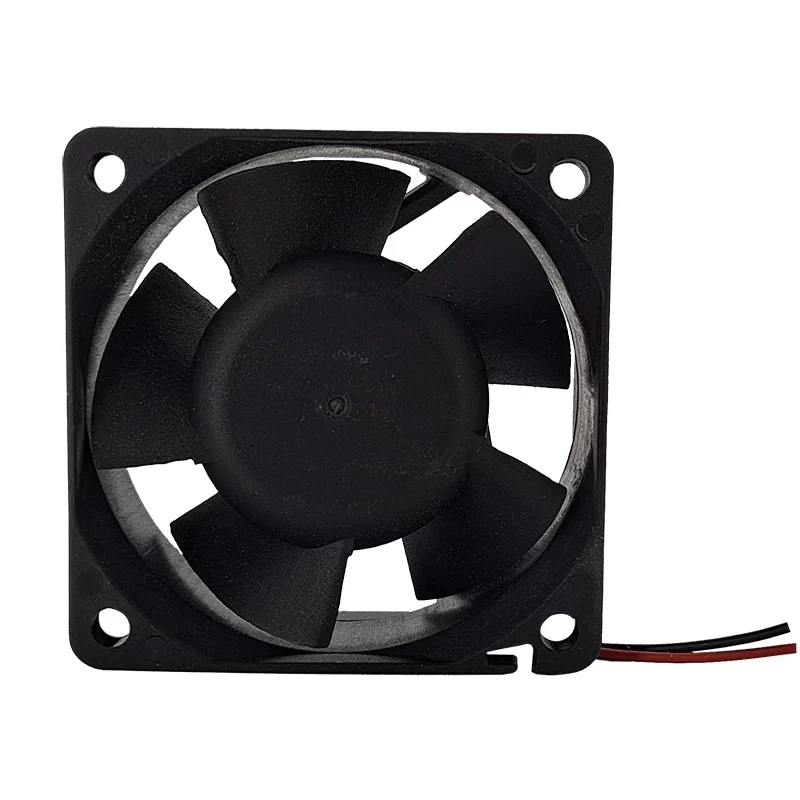

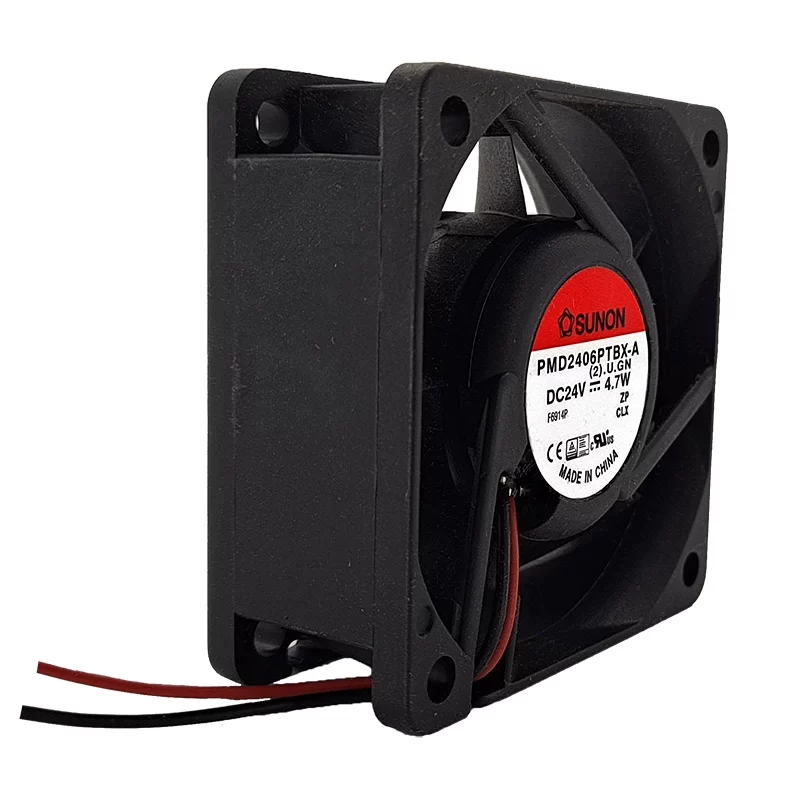

PMD2406PTBX-A (2).U.GN SUNON DC24V 4.7W axial fan

Description

The SUNON PMD2406PTBX-A (2).U.GN is a compact DC axial fan measuring 60x60x25mm. It operates on 24 VDC, drawing 196 mA of current, with a power consumption of 4.7 W. This fan achieves a high speed of 7600 RPM, providing an airflow of 40 CFM (approximately 67.96 m³/h). Its noise level is 46 dB(A). It features a reliable Vapo bearing system (MagLev technology) for quiet operation and extended life. It connects via 2 wire leads. The frame and impeller materials are thermoplastic (PBT) with a UL94V-0 flammability rating. The fan also includes automatic restart capability and is designed as a brushless DC motor. It is commonly used in various electronic equipment, industrial controls, and general cooling applications where efficient airflow and a compact size are required.

PMD2406PTBX-A (2).U.GN Fan Parameters
Model: PMD2406PTBX-A (2).U.GN
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 60x60x25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 10 to 27.6 VDC
Rated Current: 196 mA
Current and Power Consumption Tolerance: ±15%
Power Consumption: 4.7 W
Speed: 7600 RPM
Speed Tolerance: ±10%
Airflow: 40 CFM (67.96 m³/h)
Static Pressure: 0.54 inH2O (13.7 mmH2O)
Noise Level: 46 dB(A)
Bearing Type: Vapo Bearing (MagLev technology)
Termination: 2 Wire Leads (typically 300mm length, 28AWG)
Frame Material: Thermoplastic PBT
Impeller Material: Thermoplastic PBT
Flammability Rating: UL94V-0
Insulation Class: E
Insulation Resistance: 10 MΩ minimum (at 500 VDC)
Dielectric Strength: 500 VAC for 1 minute
Motor Design: Brushless DC motor
Operating Temperature: -10 to 70°C
Storage Temperature: -40 to 70°C
Expected Life: 70,000 hours (at 40°C)
Motor Protection: Automatic Restart
Weight: 75 g
Application: Electronic equipment, industrial controls, general cooling.
