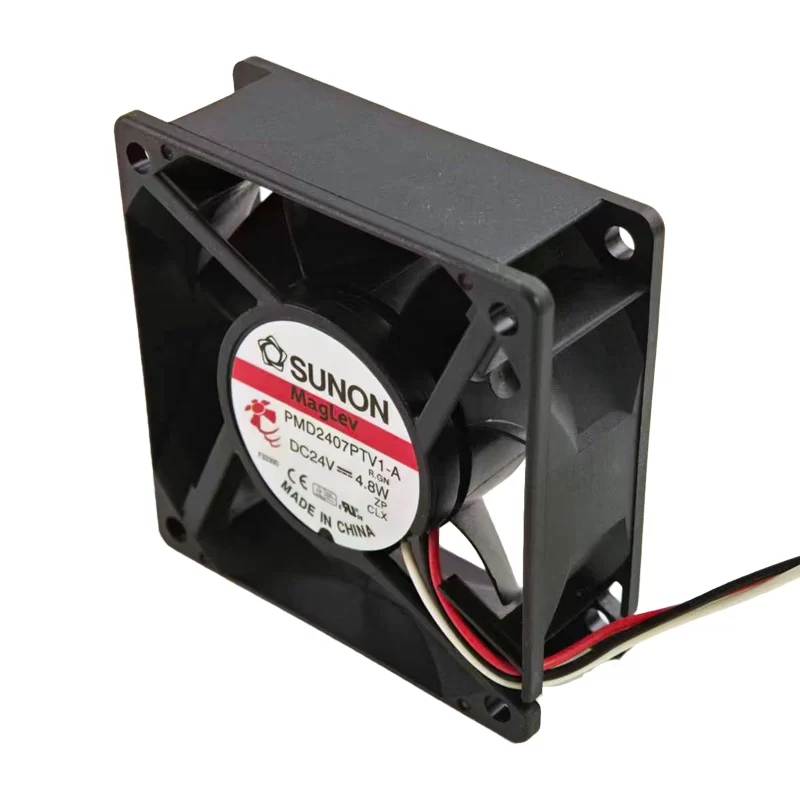

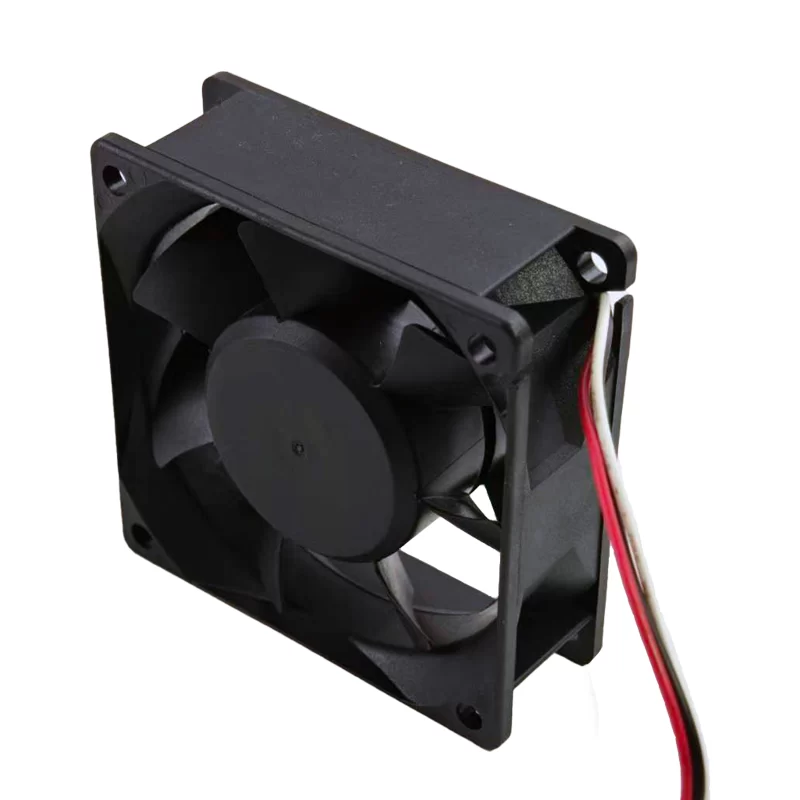

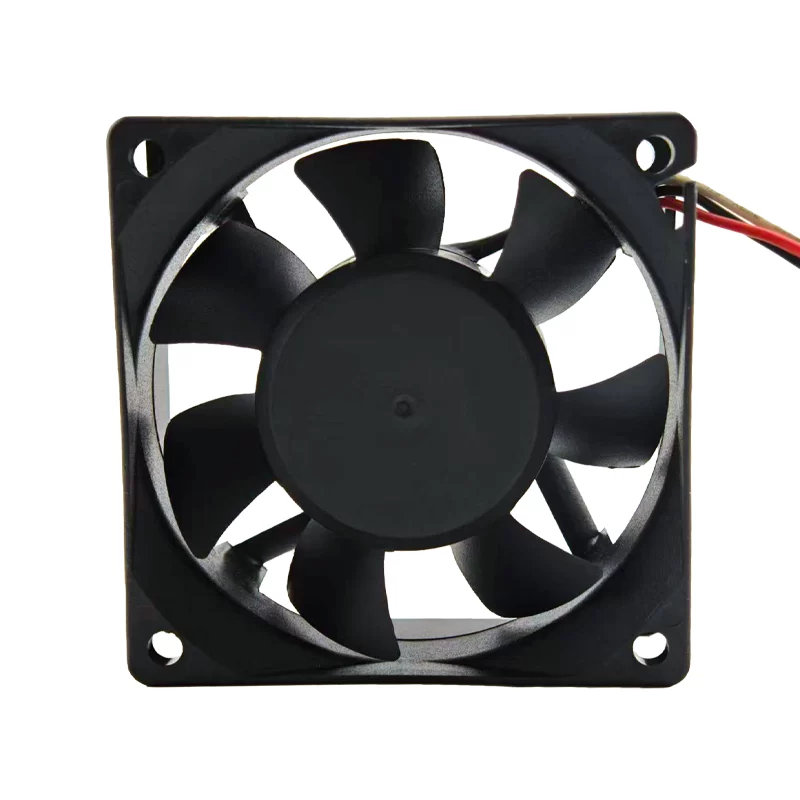

PMD2407PTV1-A.R.GN SUNON 24V 4.8W 70mm DC Axial Fan

Description

The SUNON PMD2407PTV1-A.R.GN is a high-performance DC Axial Fan with dimensions of 70 x 70 x 25 mm. It operates on a nominal voltage of 24 V DC with a power consumption of 4.8 W. This high-speed fan achieves 5100 RPM, delivering an effective airflow of 49 CFM (83.3 m³/h) and a maximum static pressure of 0.36 inAq. It is ideal for compact cooling solutions in industrial controls, power supplies, and high-density telecommunication equipment.

PMD2407PTV1-A.R.GN Fan Parameters
Model: PMD2407PTV1-A.R.GN
Manufacturer: SUNON
Type: DC Axial Fan (Tubeaxial)
Series: Super Power PMD Series
Dimensions: 70 x 70 x 25 mm
Nominal Voltage: 24 V DC
Operating Voltage Range: 14.0 V DC to 26.0 V DC
Rated Current: 0.20 A
Rated Power Consumption: 4.8 W
Speed: 5100 RPM
Max. Airflow (Free Air): 83.3 m³/h (49.0 CFM)
Max. Static Pressure: 0.36 inAq (89.6 Pa)
Noise Level: 44 dB(A)
Weight: 90 g
Number of Blades: 7
Bearing Type: Ball Bearing
Motor Design: Brushless DC Motor
Termination: 3 Wire Leads
Housing Material: Thermoplastic (PBT UL94V-0)
Impeller Material: Thermoplastic (PBT UL94V-0)
Life Expectancy: 50000 h (at 40 °C)
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Certifications: CE, UL, TUV

Application
The SUNON PMD2407PTV1-A.R.GN fan is optimized for critical cooling in systems where a 70 mm frame size is required, and high static pressure is necessary to maintain efficient air passage through restrictive components. Its high RPM and 24V DC operation make it well-suited for industrial automation, high-end network appliances, and power conversion units that require reliable, aggressive airflow.
