PMD2407PTV1-AGN SUNON DC24V 4.8W axial fan

Description

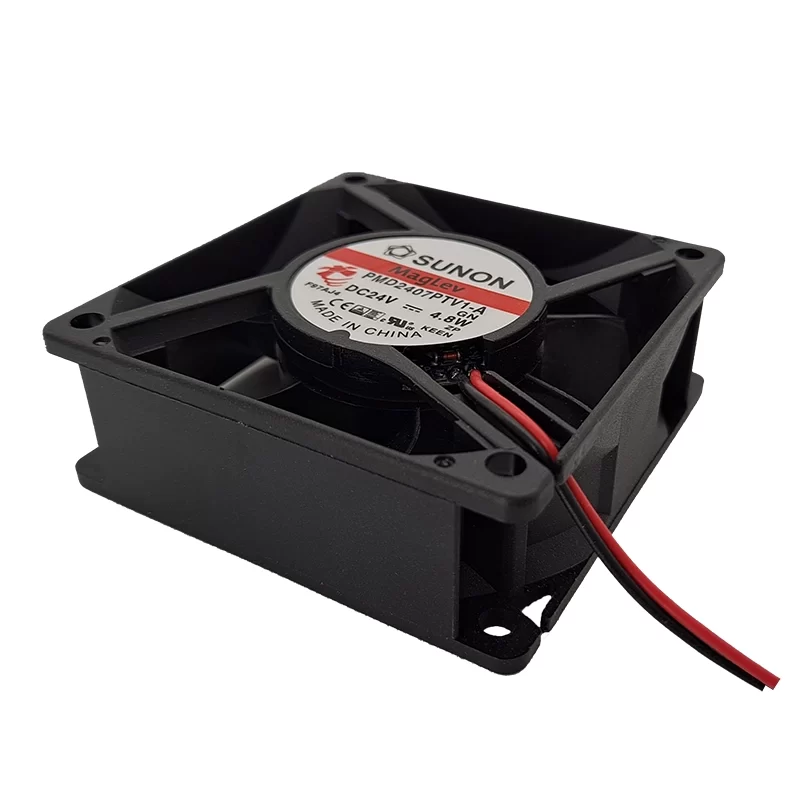

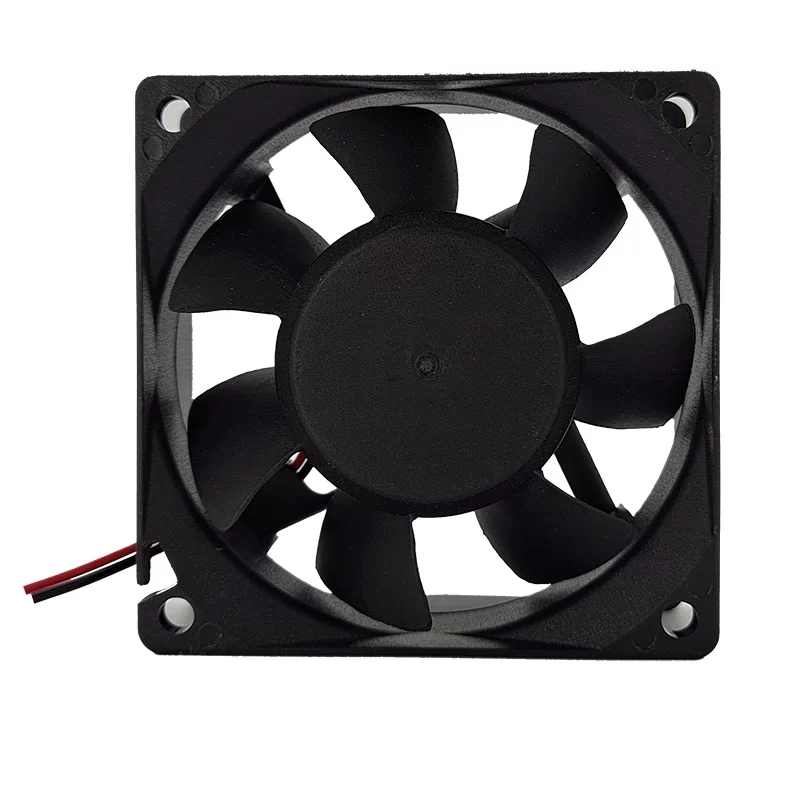

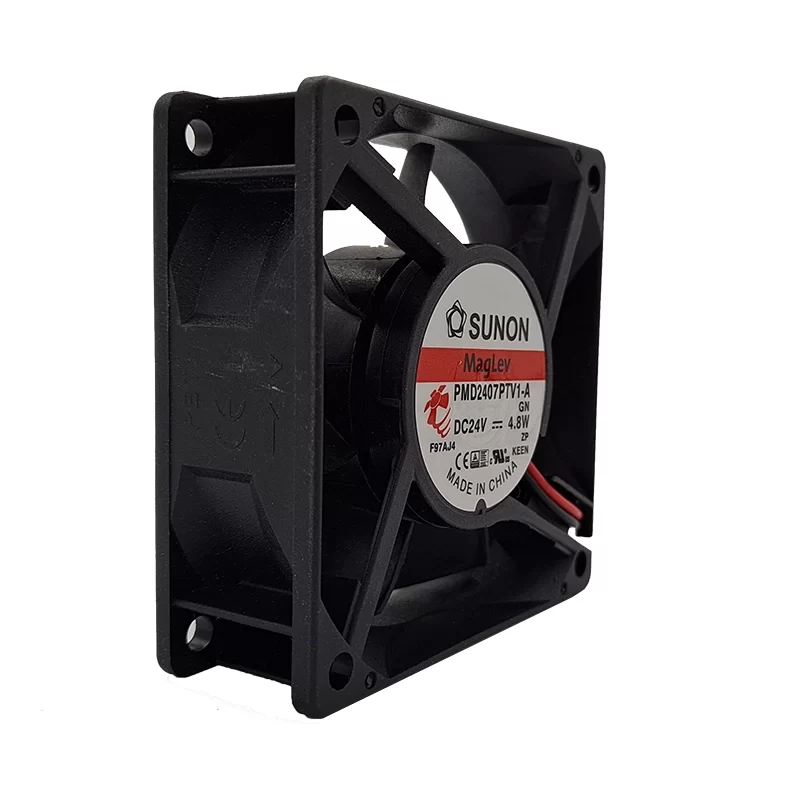

The SUNON PMD2407PTV1-A GN is a DC axial fan measuring 70x70x25mm. It operates on 24 VDC, drawing 200 mA of current, with a power consumption of 4.8 W. This fan achieves a speed of 5100 RPM, providing an airflow of 49 CFM (approximately 83.3 m³/h). Its noise level is 44 dB(A). It features a precise Vapo bearing system (MagLev technology) for reliable operation, low noise, and extended life. It connects via 2 wire leads. The frame and impeller materials are thermoplastic with a UL94V-0 flammability rating. The fan also includes automatic restart capability and is part of Sunon’s high-pressure DC fan series, suitable for demanding cooling applications.
PMD2407PTV1-A GN Fan Parameters
Model: PMD2407PTV1-A GN
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 70x70x25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 10 to 27.6 VDC
Rated Current: 200 mA
Power Consumption: 4.8 W
Speed: 5100 RPM
Speed Tolerance: ±10%
Airflow: 49 CFM (83.3 m³/h)
Static Pressure: 0.360 inH2O (9.14 mmH2O)
Noise Level: 44 dB(A)
Bearing Type: Vapo Bearing (MagLev technology)
Termination: 2 Wire Leads (24AWG, 0.3m length)
Frame Material: Thermoplastic
Impeller Material: Thermoplastic
Flammability Rating: UL94V-0
Insulation Class: A
Insulation Resistance: 10 MΩ minimum
Dielectric Strength: 500 VAC for 1 minute
Operating Temperature: -10 to 70°C
Storage Temperature: -40 to 70°C
Expected Life: 50,000 hours (at 25°C)
Motor Protection: Automatic Restart
Weight: 90 g
Application: Information technology, network communications, optoelectronics, automotive electronics, demanding cooling applications, space-saving thermal solutions.
