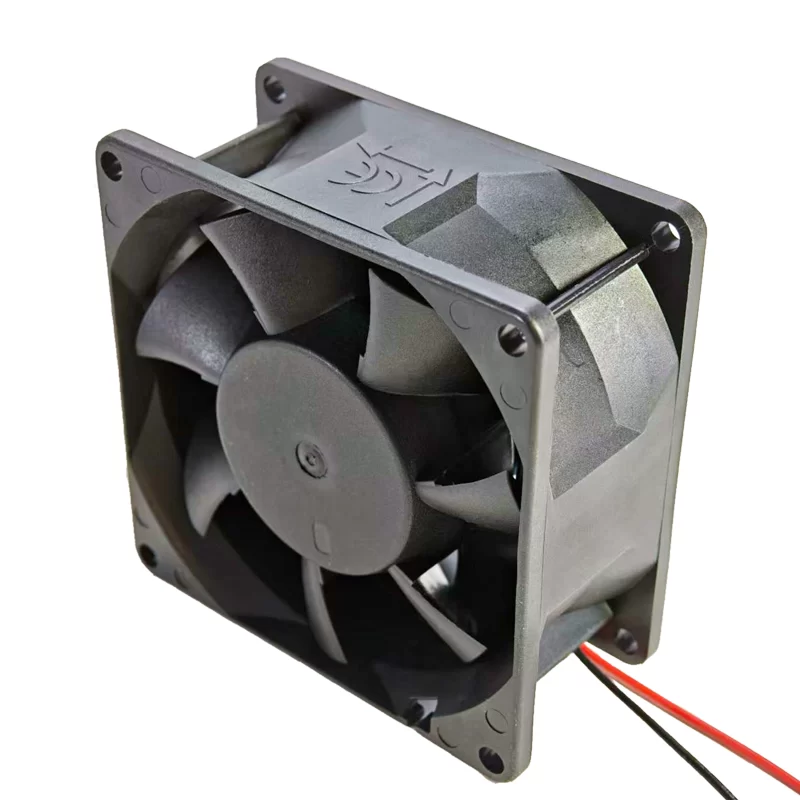

PMD2408PMB1-A.(2).GN SUNON 24V 9.6W 80mm DC Axial Fan

Description

The SUNON PMD2408PMB1-A.(2).GN is a high-performance DC Axial Fan with dimensions of 80 x 80 x 38 mm. It operates on a nominal voltage of 24 V DC with a power consumption of 9.6 W. This extremely high-speed fan achieves 5700 RPM, delivering an exceptional airflow of 84.1 CFM (142.9 m³/h) and a maximum static pressure of 0.74 inAq. It is ideal for high-density cooling applications against severe system resistance.

PMD2408PMB1-A.(2).GN Fan Parameters
Model: PMD2408PMB1-A.(2).GN
Manufacturer: SUNON
Type: DC Axial Fan (Tubeaxial)
Series: Super Power PMD Series
Dimensions: 80 x 80 x 38 mm
Nominal Voltage: 24 V DC
Operating Voltage Range: 14.0 V DC to 26.0 V DC
Rated Current: 0.4 A
Rated Power Consumption: 9.6 W
Speed: 5700 RPM
Max. Airflow (Free Air): 142.9 m³/h (84.1 CFM)
Max. Static Pressure: 0.74 inAq (184.2 Pa)
Noise Level: 55.2 dB(A)
Weight: 175 g
Number of Blades: 7
Bearing Type: Ball Bearing (Precision Ball Bearing)
Motor Design: Brushless DC Motor
Termination: 2 Wire Leads
Housing Material: Thermoplastic (PBT UL94V-0)
Impeller Material: Thermoplastic (PBT UL94V-0)
Life Expectancy: 50000 h (at 40 °C)
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Certifications: CE, UL, TUV

Application
The SUNON PMD2408PMB1-A.(2).GN is a highly specialized fan engineered for maximum cooling in minimal space. Its extreme specifications (5700 RPM, 0.74 inAq) are crucial for deeply embedded electronic systems, high-performance computing (HPC) server blades, and heavy-duty industrial control units that require overcoming significant thermal resistance within limited 80 mm enclosures.
