Description

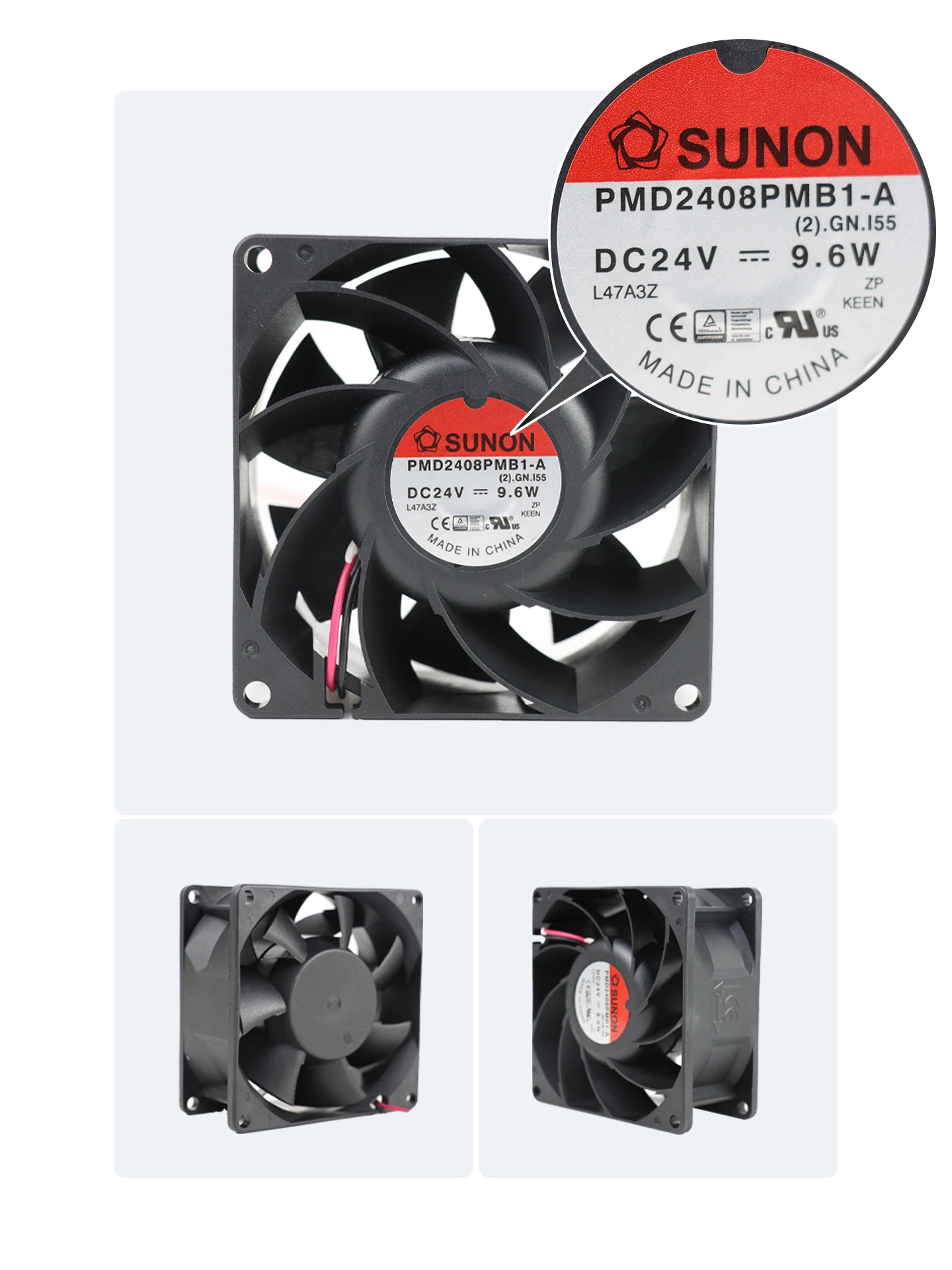

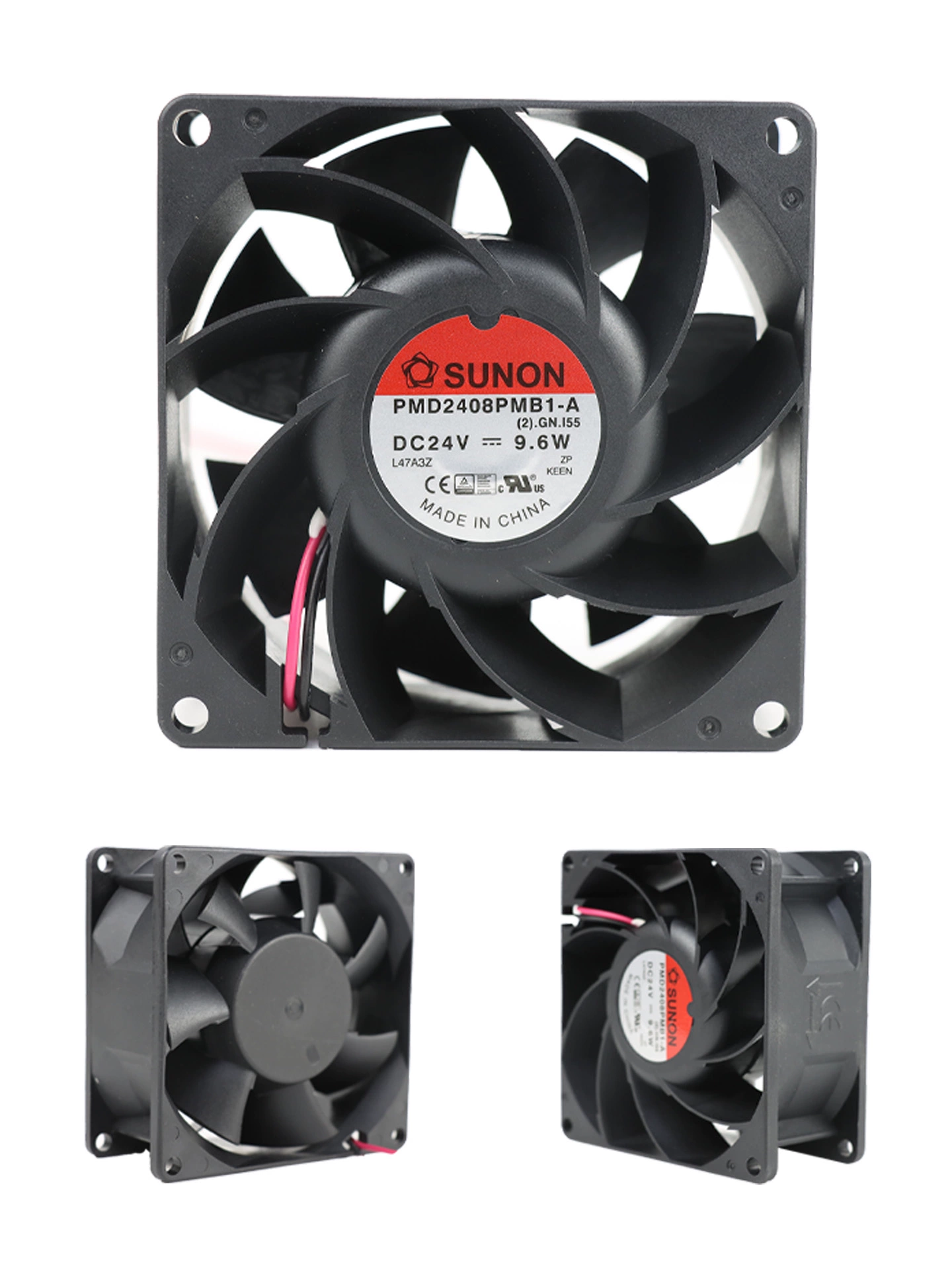

The Sunon PMD2408PMB1-A (2).GN is a high-performance DC axial fan with dimensions of 80mm x 80mm x 38mm. It operates on 24 VDC, drawing 0.4A of current and consuming 9.6W of power. This fan is designed for efficient and robust cooling in various electronic systems, offering a high rotational speed of 5700 RPM and a substantial airflow of 84.1 CFM. It features a ball bearing system for long service life and high static pressure capabilities of 0.74 inch H2O. Commonly used in servers, power supplies, control cabinets, and telecommunication equipment, it provides reliable thermal solutions.
PMD2408PMB1-A (2).GN Fan Parameters
Model: PMD2408PMB1-A (2).GN
Manufacturer: Sunon
Type: DC Axial Fan
Dimensions: 80mm x 80mm x 38mm
Rated Voltage: 24 VDC
Operating Voltage Range: 10 VDC to 27.6 VDC
Rated Current: 0.4A
Power Consumption: 9.6 W
Speed: 5700 RPM
Airflow: 84.1 CFM (143 m³/h)
Static Pressure: 0.74 inch H2O (18.8 mm H2O)
Noise Level: 55.2 dB(A)
Bearing Type: Ball Bearing
Frame Material: Thermoplastic (PBT)
Impeller Material: Thermoplastic (PBT)
Termination: 2-Wire Leads
Operating Temperature: -10°C to +70°C
Weight: 175 g
Features: Auto restart capability
Application: Server cooling, power supplies, control cabinets, network communication equipment, industrial electronics, telecommunications.
