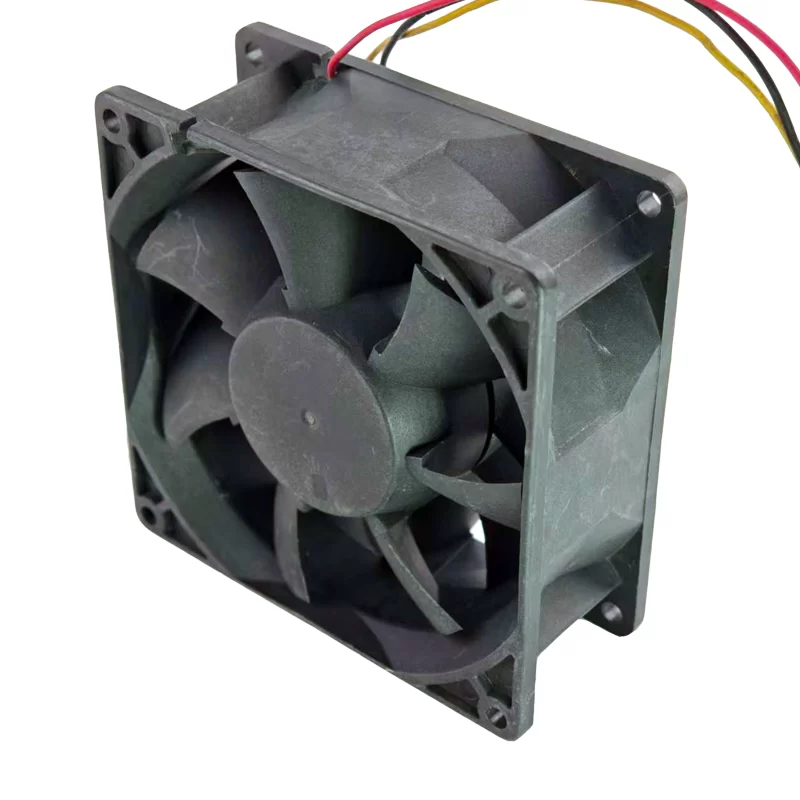

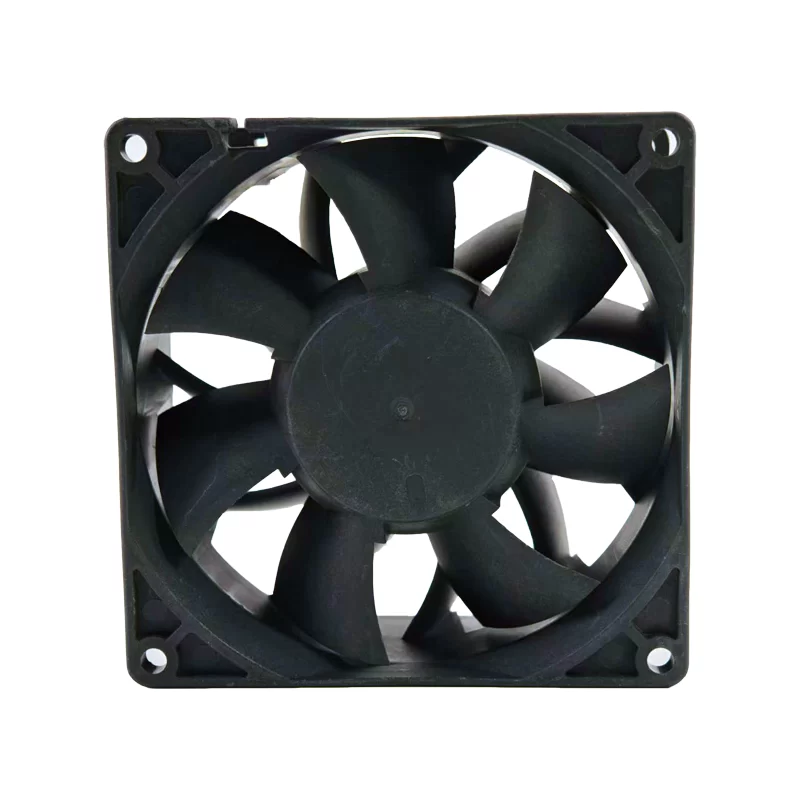

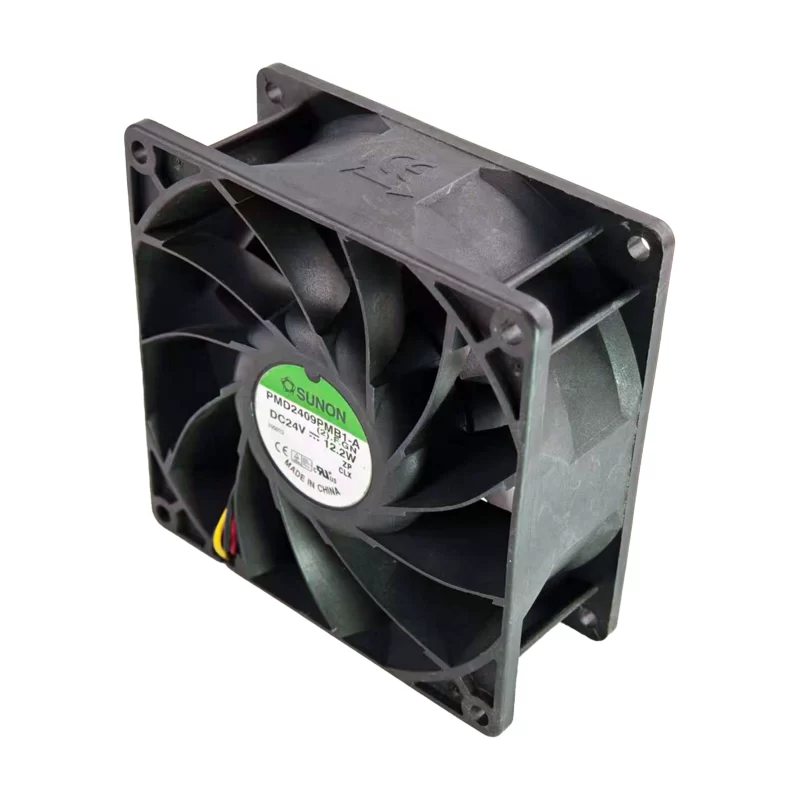

PMD2409PMB1-A.(2).F.GN Sunon 24V 12.2W 92mm DC Axial Fan

Description

The Sunon PMD2409PMB1-A.(2).F.GN is a high-performance 24 V industrial axial fan with dimensions of 92 x 92 x 38 mm, purpose-built to deliver elite-level thermal cooling in high-resistance airflow paths. This unit features a heavy-duty brushless DC motor capable of sustaining a massive 12.2 W power output to drive its specialized 7-blade impeller at a consistent 4900 RPM. Engineered specifically to combat extreme backpressure, it generates a formidable 0.71 inH₂O static pressure, making it an ideal solution for pushing air through densely obstructed heatsinks and narrow chassis. The mechanical design relies on a precision-shielded dual ball bearing system and a fiberglass-reinforced PBT housing to ensure 70,000 hours of continuous operation at a 40 °C ambient temperature. Equipped with a standard 3-wire FG tachometer for real-time speed monitoring, this fan is a critical component for high-density blade servers, telecom rectifiers, and high-wattage industrial power supplies where maximum air density and reliability are non-negotiable.

PMD2409PMB1-A.(2).F.GN Fan Parameters
Manufacturer: Sunon
Model Number: PMD2409PMB1-A.(2).F.GN
Series: PMD (Power Motor Design)
Industry Size Code: 9238
Type: DC Axial Fan
Bearing Type: Dual Ball Bearing
Nominal Voltage: 24 VDC
Voltage Range: 10.0 – 27.6 VDC
Starting Voltage: 10.0 VDC
Dimensions: 92 x 92 x 38 mm
Weight: 190 g

[Electrical Data]
Input Power: 12.2 W
Nominal Current: 0.51 A
Max. Current: 0.60 A
Nominal Speed: 4900 RPM (Tolerance ±10%)
Motor Design: Brushless DC Motor
Signal Output: FG (Frequency Generator/Tachometer)
Motor Protection: Auto Restart, Polarity Protection, Locked Rotor Protection
Insulation Class: Class A
Insulation Resistance: >10M ohm at 500 VDC
Dielectric Strength: 500 VAC for 1 minute
Termination: 3-Lead wires (UL1007, AWG#24, Red/Black/Yellow)

[Performance & Acoustics]
Max. Air Flow: 120.0 CFM (203.9 m³/h / 3.40 m³/min)
Max. Static Pressure: 18.03 mmH₂O (176.85 Pa / 0.71 inH₂O)
Sound Pressure Level: 57.6 dB(A) (Measured at 1 meter)
Number of Blades: 7
Direction of Rotation: Counter-clockwise (viewed toward impeller)
Airflow Direction: Intake over struts

[Materials & Construction]
Frame Material: Thermoplastic PBT (Black, UL94V-0)
Impeller Material: Thermoplastic PBT (Black, UL94V-0)
Installation Position: Any
Degree of Protection: IP54

[Reliability & Safety Standards]
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Life Expectancy (L10): 70,000 hours at 40 °C
Standard Compliance: UL 507, CSA C22.2, EN 60950-1
Approval Agency: UL, TUV, CE, RoHS

Application
The Sunon PMD2409PMB1-A.(2).F.GN axial fan is used in high-density blade servers, cloud storage arrays, industrial power rectifiers, telecommunications base stations, and high-frequency medical equipment.
