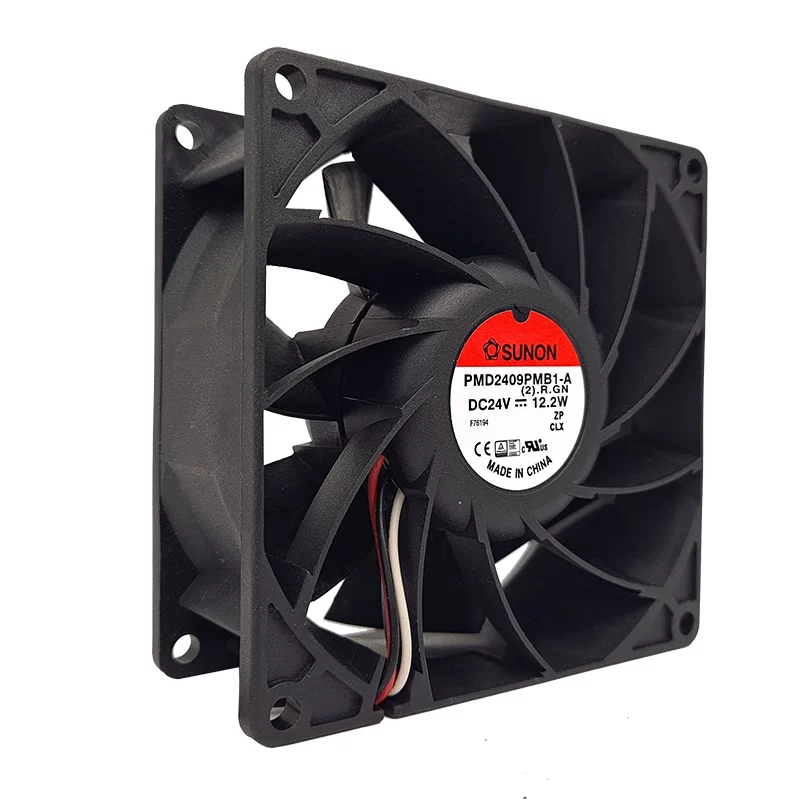

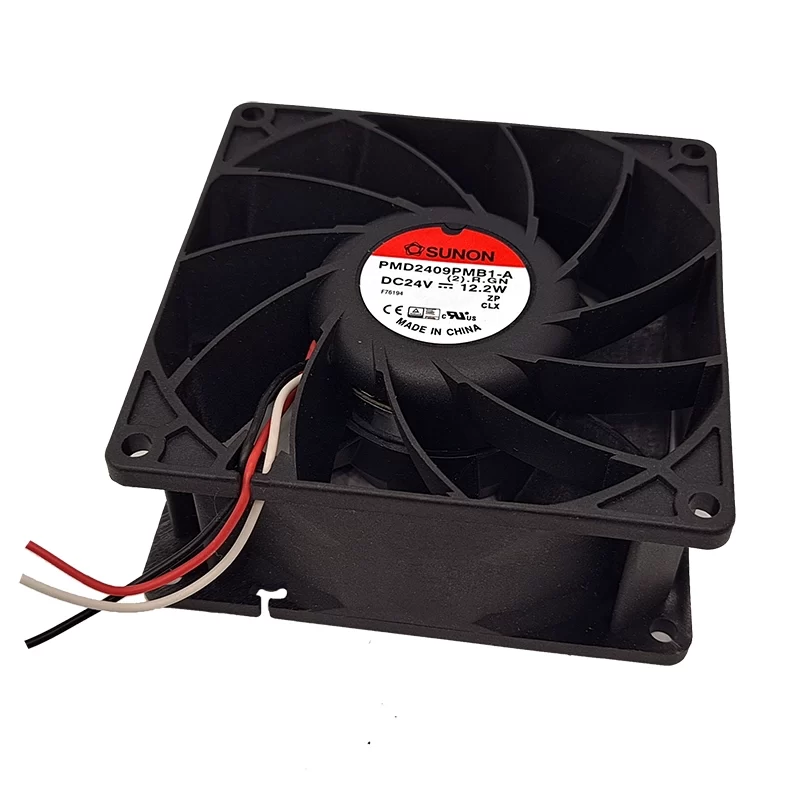

PMD2409PMB1-A(2).R.GN SUNON DC24V 12.2W axial fan

Description

The SUNON PMD2409PMB1-A(2).R.GN is a powerful DC axial fan measuring 92x92x38mm. It operates on 24 VDC, drawing 0.51 A of current, with a power consumption of 12.2 W. This fan achieves a high speed of 4900 RPM, providing a significant airflow of 120.2 CFM (approximately 3.4 m³/min or 204.21 m³/h). Its noise level is 57.6 dB(A). It features a precision ball bearing system for reliable operation and extended life, and connects via 2 wire leads. The frame and impeller are made of thermoplastic (PBT) with a UL94V-0 flammability rating. The fan also includes automatic restart capability and polarity protection. It is commonly used in demanding cooling applications for information technology, network communications, optoelectronics, and automotive electronics.

PMD2409PMB1-A(2).R.GN Fan Parameters
Model: PMD2409PMB1-A(2).R.GN
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 92x92x38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 10 to 27.6 VDC
Rated Current: 0.51 A
Power Consumption: 12.2 W
Speed: 4900 RPM
Speed Tolerance: ±10%
Airflow: 120.2 CFM (3.4 m³/min or 204.21 m³/h)
Static Pressure: 0.71 inH2O (18.02 mmH2O)
Noise Level: 57.6 dB(A)
Bearing Type: Ball Bearing
Termination: 2 Wire Leads (28AWG, 0.3m length)
Frame Material: Thermoplastic (PBT)
Impeller Material: Thermoplastic (PBT)
Flammability Rating: UL94V-0
Insulation Class: A
Insulation Resistance: 10 MΩ minimum (at 500 VDC)
Dielectric Strength: 500 VAC for 1 minute (or 600VAC for 2 seconds)
Operating Temperature: -10 to 70°C
Storage Temperature: -40 to 70°C
Expected Life: 50,000 hours (at 25°C)
Motor Protection: Automatic Restart, Polarity Protection
Weight: 190 g
Application: Information technology, network communications, optoelectronics, automotive electronics, high pressure/airflow demanding cooling.
