Description

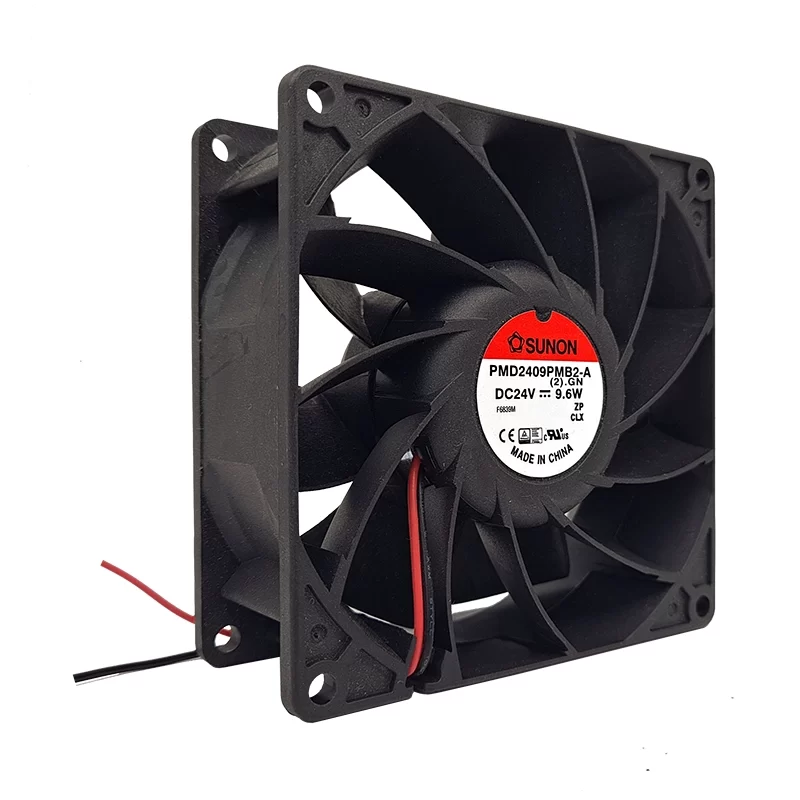

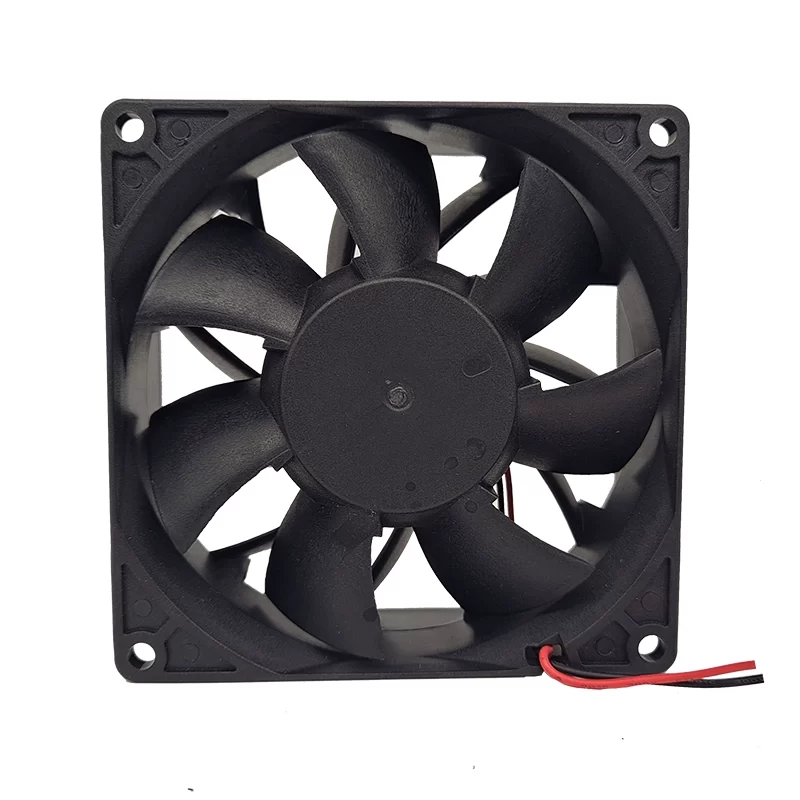

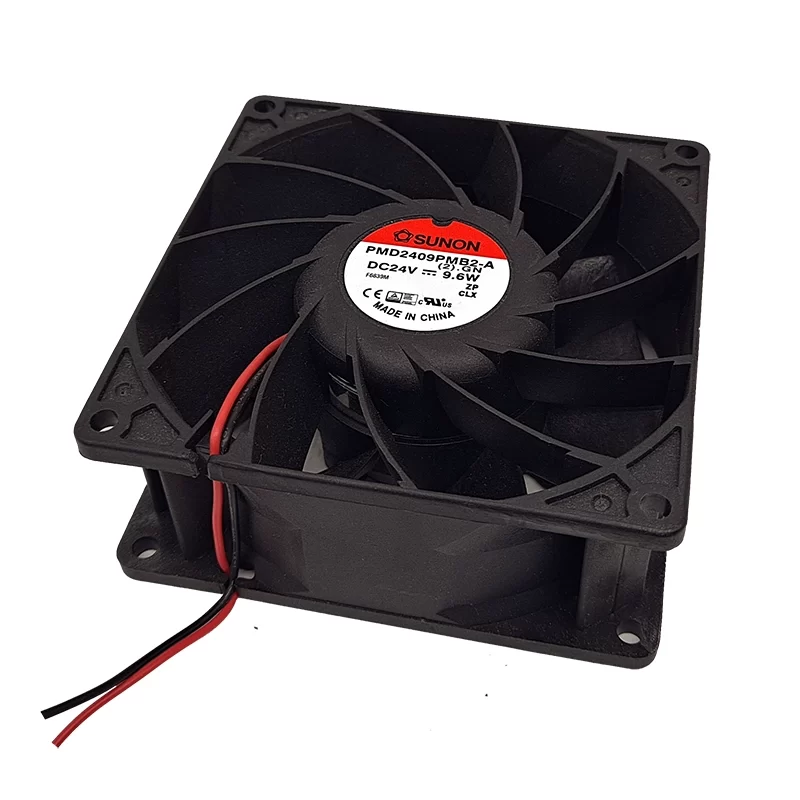

The SUNON PMD2409PMB2-A(2).GN is a powerful DC axial fan measuring 92x92x38mm. It operates on 24 VDC, drawing 400 mA of current, with a power consumption of 9.6 W. This fan achieves a speed of 4400 RPM, providing a strong airflow of 106.3 CFM (approximately 180.6 m³/h). Its noise level is 53.8 dB(A). It features a reliable precision ball bearing system for durability and long operational life. It connects via 2 wire leads. The frame and impeller materials are thermoplastic (PBT) with a UL94V-0 flammability rating. The fan also includes automatic restart capability and is designed with a brushless DC motor. It is commonly used in demanding cooling applications such as servers, industrial control systems, power supplies, and other equipment requiring high airflow in a compact size.
PMD2409PMB2-A(2).GN Fan Parameters
Model: PMD2409PMB2-A(2).GN
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 92x92x38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 10 to 27.6 VDC
Rated Current: 400 mA (or 0.4 A)
Current and Power Consumption Tolerance: ±15%
Power Consumption: 9.6 W
Speed: 4400 RPM
Speed Tolerance: ±10%
Airflow: 106.3 CFM (180.6 m³/h)
Static Pressure: 0.560 inH2O (139.5 Pa)
Noise Level: 53.8 dB(A)
Bearing Type: Ball Bearing (Precision ball bearing system)
Termination: 2 Wire Leads (typically 24AWG, 300mm length)
Frame Material: Polybutylene Terephthalate (PBT)
Impeller Material: Thermoplastic (PBT)
Flammability Rating: UL94V-0
Insulation Resistance: 10 MΩ minimum (at 500 VDC)
Dielectric Strength: 500 VAC for 1 minute (or 600V for 2 seconds)
Motor Design: 2 phases, 4-poles Brushless DC motor
Operating Temperature: -10 to 70°C
Storage Temperature: -40 to 70°C
Expected Life: 50,000 hours (at 25°C)
Motor Protection: Automatic Restart Capability
Weight: 190 g
Application: Servers, industrial control systems, power supplies, high-density computing equipment.
